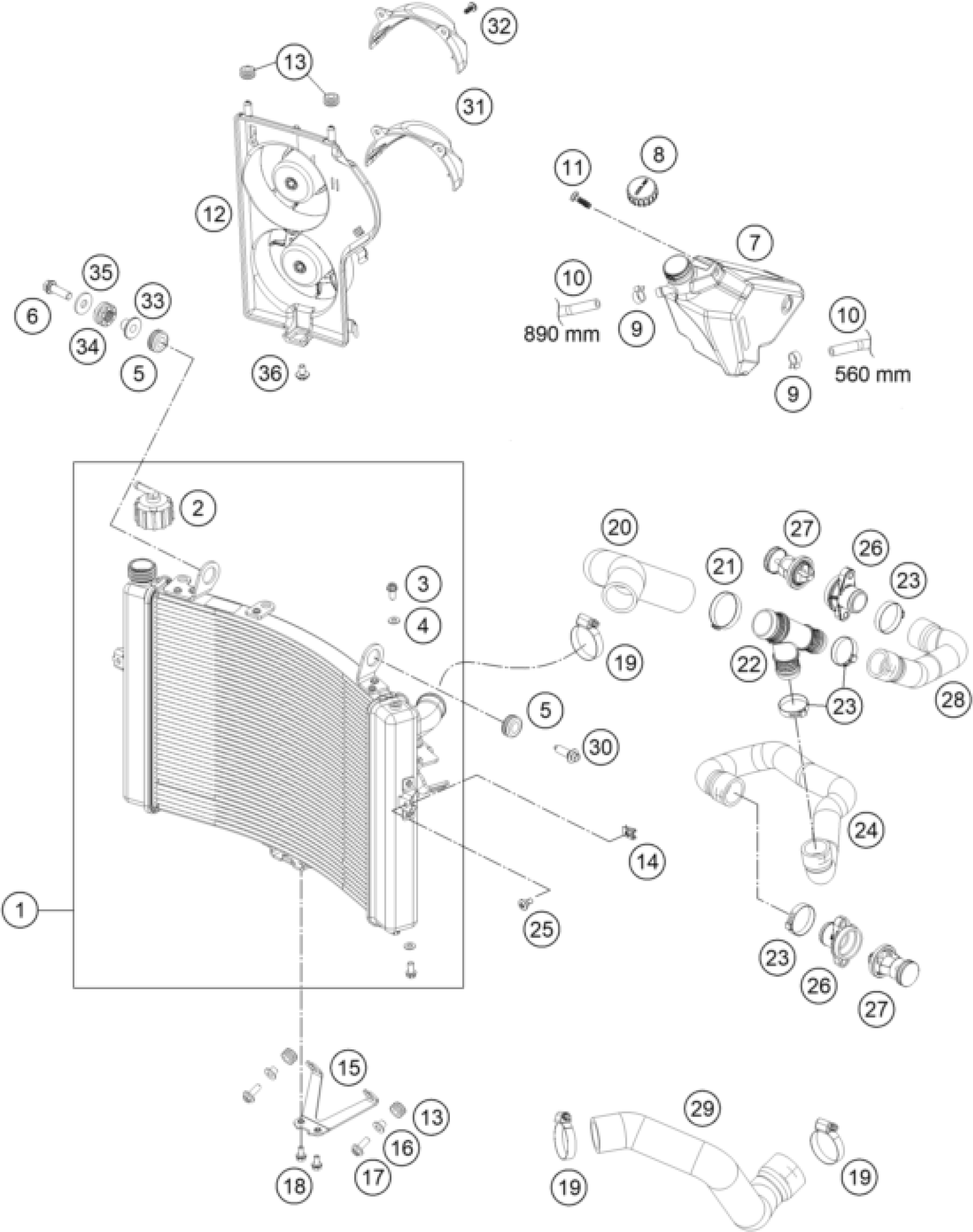

KTM 1290 SUPERDUKE R BLACK ABS 14 <2014> COOLING SYSTEM Diagram

#

Description

Price

36

special screw M6x12x3

83008000012

Unavailable

25

special screw M5x12

69008021160

Unavailable

1

WATER COOLER

61335010000

Unavailable

2

RADIATOR CAP 1,4 BAR

62535009000

Unavailable

3

HH collar screw M6x12 TX30

0025060126

Unavailable

4

ALU-GASKET 6X10X1.5

60035048000

Unavailable

5

RUBBER SLEEVE D=12MM

41001052000

Unavailable

6

HH collar screw M6x20 TX30

0025060206

Unavailable

7

EXPANSION TANK CPL.

61335065000

Unavailable

8

Latch, compens. tank cpl.

60335066044

Unavailable

9

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

10

HOSE 6X10 EPDM 03

60035067001

Unavailable

11

SCREW FOR PLASTIC PT K50X14T25

0081250141

Unavailable

12

FAN COVER CPL.

60335044033

Unavailable

13

rubber grommet D=8mm open

31008060000

Unavailable

15

MOUNTING PLATE COOLER BOTTOM

60335005000

Unavailable

16

COLLAR BUSHING 6,1X8,1X14X8 07

75014010050

Unavailable

17

HH collar screw M6x20 TX30

0024060206

Unavailable

18

HH collar screw M5x10 TX30

0025050106

Unavailable

19

HOSE CLAMP 30-45 SGT

54305058000

Unavailable

20

PREFORMED HOSE

60335026000

Unavailable

21

VARIABLE ONE-EAR CLAMP 39,6MM

00050396706

Unavailable

22

Y-JOINT

60335093000

Unavailable

23

Stufenlose Einohrklemme 33,1mm

00050331706

Unavailable

24

PREFORMED HOSE

60335025000

Unavailable

26

WATER CONNECTION CPL.

61235019100

Unavailable

27

THERMOSTAT 70 DEGREE

61235017000

Unavailable

28

PREFORMED HOSE

60335024000

Unavailable

29

PREFORMED HOSE

60335027000

Unavailable

14

clip nut M5

69008021080

Unavailable

30

COLLAR SCREW M6X12 TX

0024060123

Unavailable

32

EJOT PT screw K50x14

0081050141

Unavailable

31

AIRDEFLECTOR

61335049000

Unavailable

33

Collar bushing 6.5X9X18X8.5

61342041000

Unavailable

35

Washer DIN9021-A 6.4

0021060003

Unavailable

34

DAMP. COMPONENT ABS MODUL

62142041000

Unavailable
