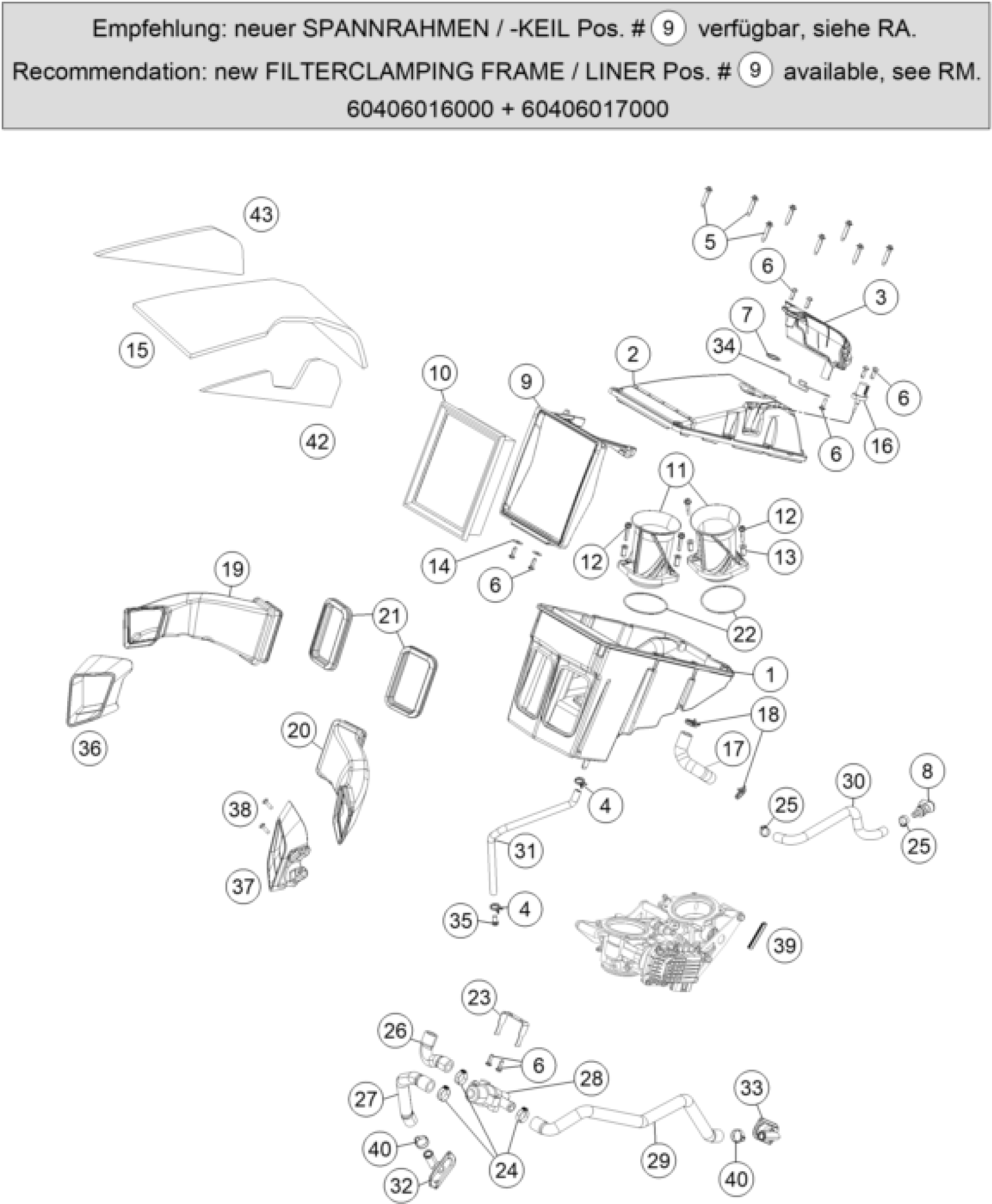

KTM 1290 SUPERDUKE R BLACK ABS 14 <2014> AIR FILTER Diagram

#

Description

Price

20

INTAKE SNORKEL L/S

61306040000

Unavailable

21

GASKET INTAKE DUCT

60306040050

Unavailable

34

MOUNTING BRACKET PLUG

61311099000

Unavailable

15

INSULATION MAT MIDDLE

61306095010

Unavailable

38

EJOT DELTA PT SCREW 45X12-Z

0081645121

Unavailable

25

Variable one-ear clamp 15.7mm

00050157706

Unavailable

1

AIR FILTER HOUSING LOWER PART

60306001100

Unavailable

2

AIR FILTER BOX COVER

60306002000

Unavailable

40

VARIABLE ONE-EAR CLAMP 22,0MM

00050220706

Unavailable

23

RETAINING BRACKET SLS

61305031000

Unavailable

13

Bushing intake funnel

60306042010

Unavailable

14

washer DIN 9021 A - 5.3

0021050003

Unavailable

16

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

17

OIL SEPARATOR FOAM HOSE

60330088030

Unavailable

18

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

11

INTAKE TRUMPET LENGTH 100

61341040100

Unavailable

12

HH COLLAR SCREW M5X25 ISA30

0025050256

Unavailable

39

EDGE PROTECTOR L=45MM 05

61011055045

Unavailable

43

INSULATION MAT R/S

61306095030

Unavailable

3

OIL SEPARATOR

60330088000

Unavailable

4

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

5

Special screw K60X30 WS=6

0017060305

Unavailable

6

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

7

O-RING 21,00X2,00 NBR70

0770021020

Unavailable

9

FILTER FRAME MESH

60306016100

Unavailable

10

AIR FILTER

60306015000

Unavailable

19

INTAKE SNORKEL R/S

61306041000

Unavailable

22

O-RING 66X2,5 FKM

0770066025

Unavailable

24

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

Unavailable

26

SAS HOSE - AIRBOX

61305035023

Unavailable

27

SAS HOSE CYLINDER FRONT

61305035021

Unavailable

28

CONTROL VALVE SAS 05

61005026000

Unavailable

29

SAS HOSE CYLINDER REAR

61305035022

Unavailable

30

FUEL HOSE THROTTLE VALVE

61307016050

Unavailable

31

HOSE NBR 7X11 PER METER

60015019001

Unavailable

32

SAS flange

61205122000

Unavailable

33

SAS-FLANGE

61205032000

Unavailable

35

HH collar screw M8x12 TX40

0025080126

Unavailable

36

COVER INTAKE SNORKEL R/S

61306041033

Unavailable

37

COVER INTAKE SNORKEL L/S

61306040033

Unavailable

8

Clutch CPC PLCD17005, black

5850701050030

Unavailable

42

INSULATION MAT L/S

61306095020

Unavailable
