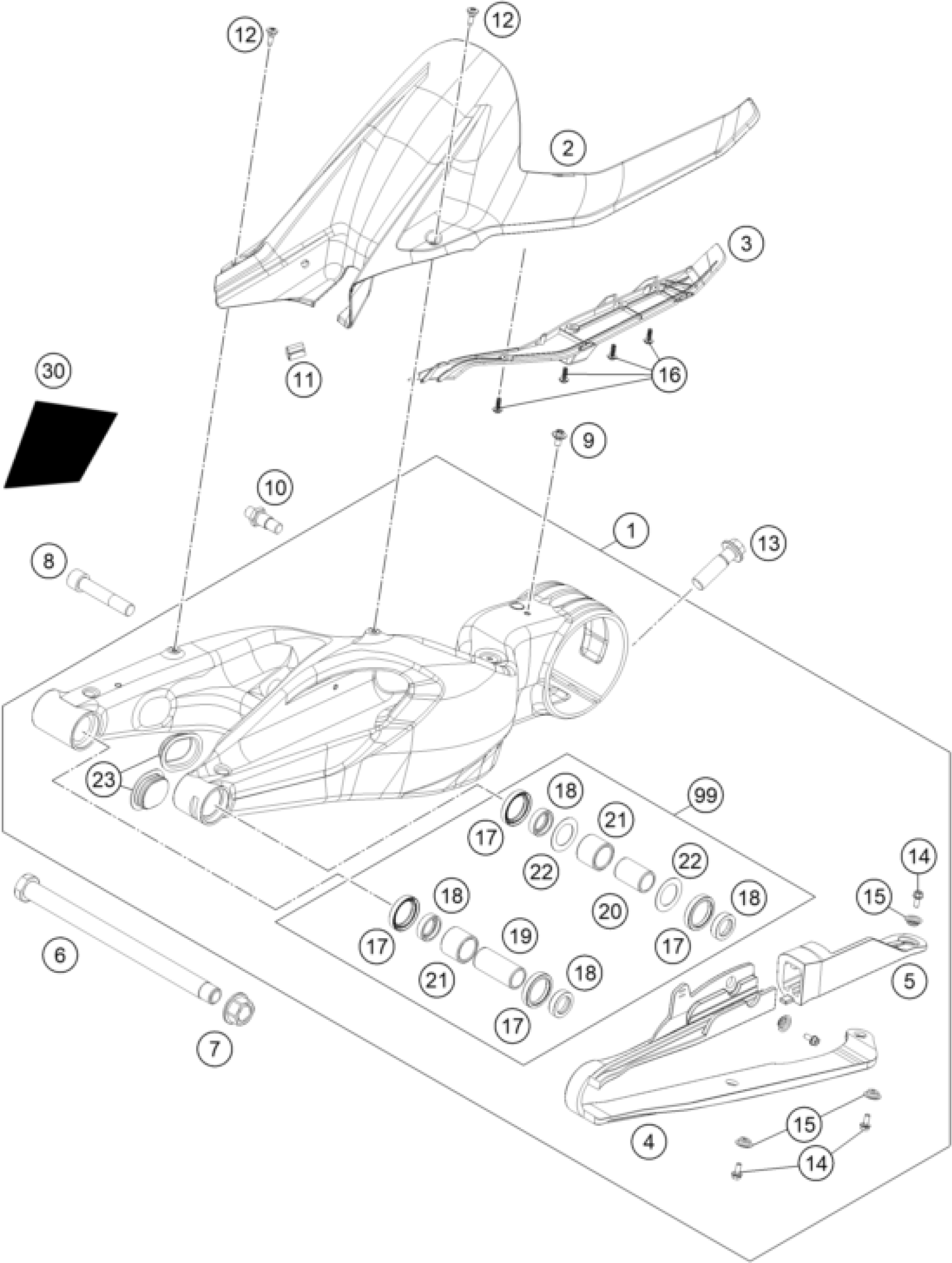

KTM 1290 SUPERDUKE R BLACK 17 <2017> SWING ARM Diagram

#

Description

Price

1

Swing arm cpl.

6130403004433A

$1,320.77

2

REARFENDER

61304050100

$47.68

3

BRACKET SPLASH PROTECTOR

61304051000

$16.73

4

CHAIN SLIDING GUARD FRONT

61304060000

$36.74

5

CHAIN SLIDING GUARD REAR

61304070000

$23.46

6

SWING ARM BOLT

69004037244

$73.76

7

Collar nut M19X1.5 SW=27MM

60004038200

$17.94

8

SCREW M14X1,5 L=73MM 03

60004017000

$5.23

9

special screw M6x12x3

83008000012

$3.08

10

BOLT BRAKE SADDLE BRACKET

76004142000

$30.10

11

CABLE SUPPORT

61304042000

$2.05

12

special screw M5x17

69008021060

$3.08

13

HH collar screw M16X1.5X55

61310021000

$8.69

14

HH collar screw M5x12 TX30

0025050126

$3.08

15

BUSH FOR CHAINSLIDER GUARD 02

46104066050

$8.31

16

EJOT PT screw K50x14

0081050141

$1.49

17

Radial shaft seal 30X40X7

0760304073

$4.11

18

Bucket f. shaft seal ring 03

60004034000

$8.03

19

Inner ring JR 20X25X56.5

69004032000

$36.08

20

INNER RING JR20X25X38,5 03

60004032000

$18.13

21

NEEDLE BUSH HK2526B 03

60004031000

$10.65

22

Stop disk 03

60004033000

$2.05

23

Locking cap swingarm

61304041100

$8.69

99

swingarm rep. kit

69004230010

$96.30

30

Swing protective foil sw.

61604030010

$7.28
