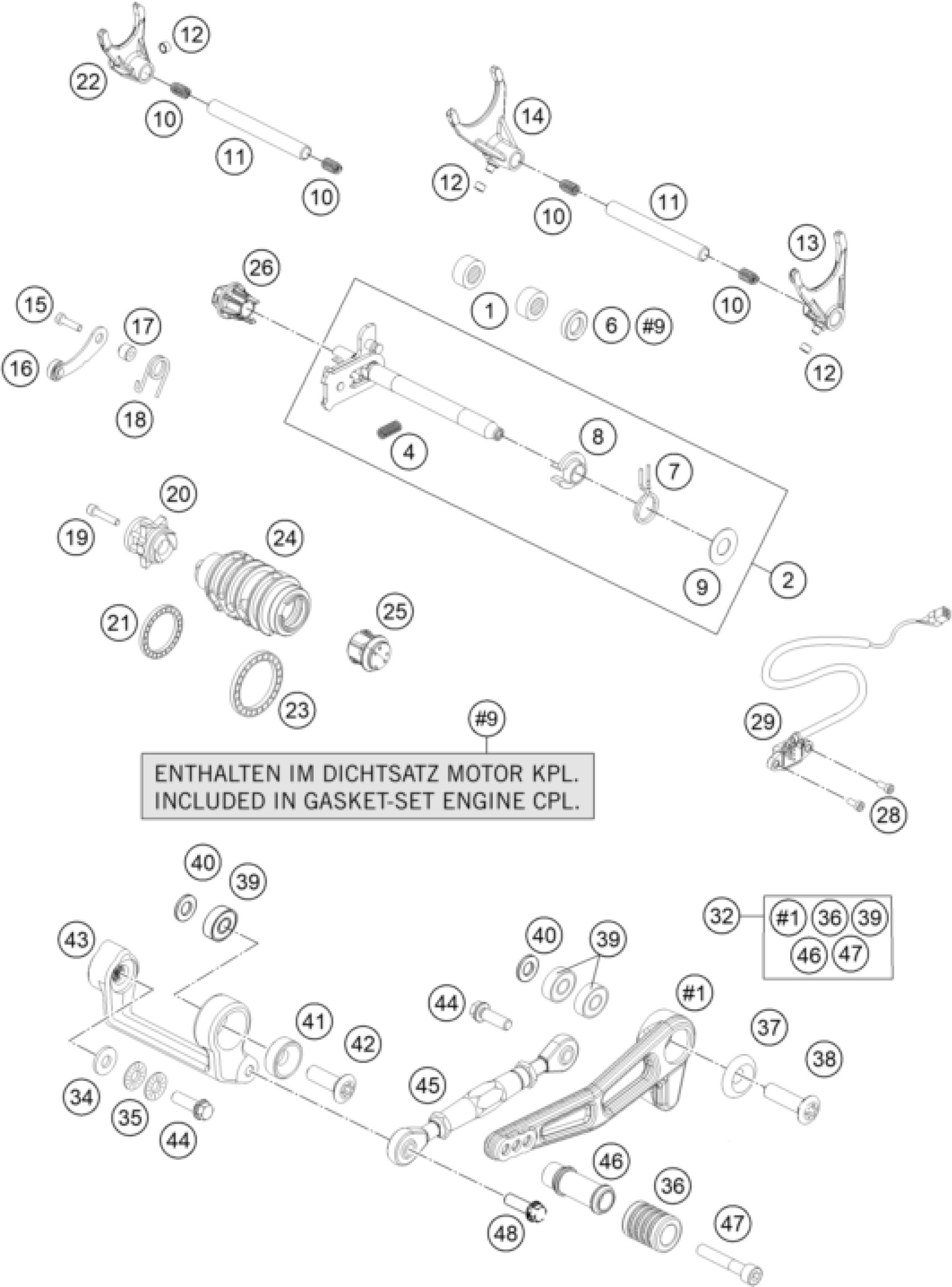

KTM 1290 SUPERDUKE R BLACK 17 <2017> SHIFTING MECHANISM Diagram

#

Description

Price

6

radial shaft seal 14x24x6 B

0760142460

Unavailable

25

Magnet bracket cmpl.

79234012020

Unavailable

7

RETURN SPRING 2.3 MM

61434014000

Unavailable

1

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

2

SHIFT SHAFT CPL.

61434005044

Unavailable

4

TENSIONING SPRING 0,8MM

56534013100

Unavailable

8

SPRING GUIDE

54634020000

Unavailable

9

STOP DISK 14X30X1

54634050000

Unavailable

10

PRESSURE SPRING 0,9MM

58038023200

Unavailable

11

SHIFT RAIL 11,8X105MM

59034020000

Unavailable

12

SHIFTING ROLLER 6X8X5,2

50334018100

Unavailable

13

SHIFT FORK 2-3 GEAR

61234002100

Unavailable

14

SHIFTING FORK 08

61234001000

Unavailable

15

HH collar screw M6x20 TX30

0024060206S

Unavailable

16

LOCKING LEVER CPL.

61434024000

Unavailable

17

SLEEVE FOR LOCKING LEVER 07

75034052000

Unavailable

18

SPRING - LOCKING LEVER

61234023000

Unavailable

19

Hexagon socket screw, DIN0912-

0912060309S

Unavailable

20

SHIFT LOCATING DRUM CPL.

61434015000

Unavailable

21

BALL BEARING 61805 C3

0625618050

Unavailable

22

SHIFT FORK 5-6 GEAR

61234003200

Unavailable

23

GROOVED BALL BEARING 6808 JRC3

0625068080

Unavailable

24

SHIFTING DRUM 6G

60434012001

Unavailable

28

CYL. SCREW DIN6912 M5X14 8.8

0984050143S

Unavailable

29

GEAR POSITION SENSOR

60411023000

Unavailable

32

SHIFT LEVER CPL. 16

6133403114433S

Unavailable

34

STEEL WASHER 6,4X17X3

50232050001

Unavailable

35

Pair of washers M6 NORDLOCK

50233041000

Unavailable

36

RUBBER FOR SHIFT LEVER 05

61034035000

Unavailable

37

SPECIAL WASHER D=23X7,2MM

61334041000

Unavailable

38

AH collar screw M8x30 ISA45

0035080306S

Unavailable

39

Grooved ball bearing 608 2RS C

0625006087

Unavailable

40

washer DIN 125 A -8.4

0125080003

Unavailable

41

SPECIAL WASHER D=20X6,8MM

61334040000

Unavailable

42

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

44

HH collar screw M6x20 TX30

0025060206S

Unavailable

45

Shift rod cmpl.

61334036044

Unavailable

46

GEAR LEVER

69034032100

Unavailable

43

RELAY LEVER BLACK 07

6103403000033S

Unavailable

47

AH SCREW DIN0912-M 6X45

0912060453

Unavailable

48

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

26

MAGNET HOLDER

61434050000

Unavailable
