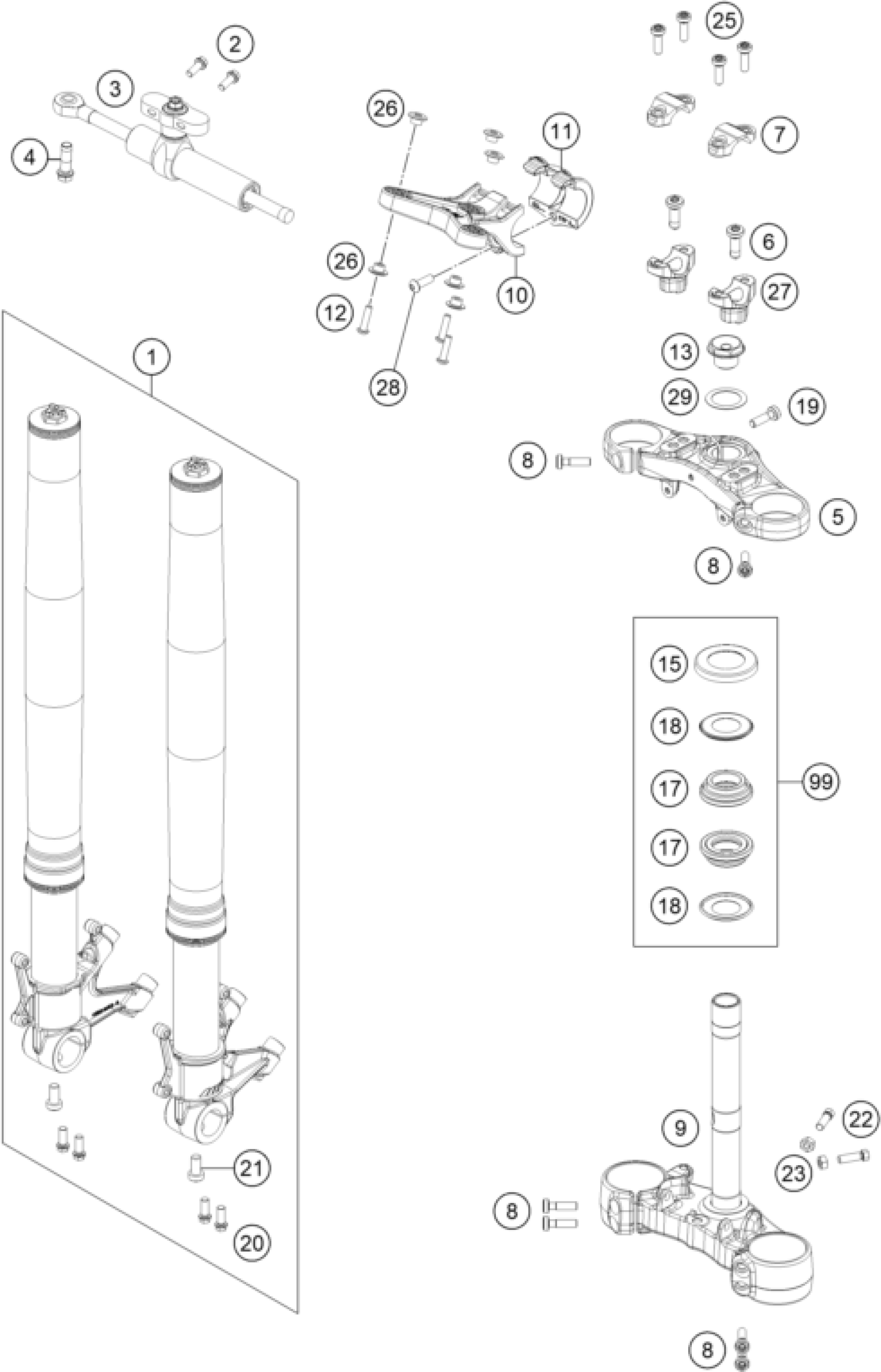

KTM 1290 SUPERDUKE R BLACK 17 <2017> FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

Fork WP superduke 2017

14188Q2201

Unavailable

2

HH collar screw M6x20 TX30

0025060206S

Unavailable

3

STEERING DAMPER CPL. STROKE 75

16181N52ES

Unavailable

4

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

5

Triple clamp

6160113402933S

Unavailable

6

AH-COLLAR SCREW M10X30 ISA45

0032100306S

Unavailable

7

Handlebar clamp

6160103800030S

Unavailable

8

AH collar screw M8x30 ISA45

0035080306

Unavailable

9

Triple clamp

6160103202933S

Unavailable

10

Instrument holder front part

61601045100

Unavailable

11

Instrument holder rear part

61601044000

Unavailable

12

Lens head screw ISO 7380-M5X20

0738050202

Unavailable

13

STEERING HEAD SCREW 09

6900103600001

Unavailable

15

PROT. RING STEER. HEAD BEARING

69001086100

Unavailable

17

STEERINGHEAD KPL.17

69001181000

Unavailable

18

O-RING SUPPORT W. SEALING LIP

69001084000

Unavailable

19

AH collar screw M8x30 ISA45

0035080306S

Unavailable

20

HH collar screw M8x20

0025080206

Unavailable

21

AH SCREW M10X20 SET

00501020S1

Unavailable

22

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

23

Hexagon nut DIN934 M8

0934080003

Unavailable

25

AH collar screw M8x25 ISA45

0035080256

Unavailable

26

Tachometer support bush

60714069050

Unavailable

27

Handle bar support

6140103903733S

Unavailable

28

BHCS ISO 7380 M6X18

0738060181

Unavailable

29

thrust wash DIN0988-25x35x0,5

0988253505

Unavailable

99

Stearing head rep. Kit

69001181010

Unavailable
