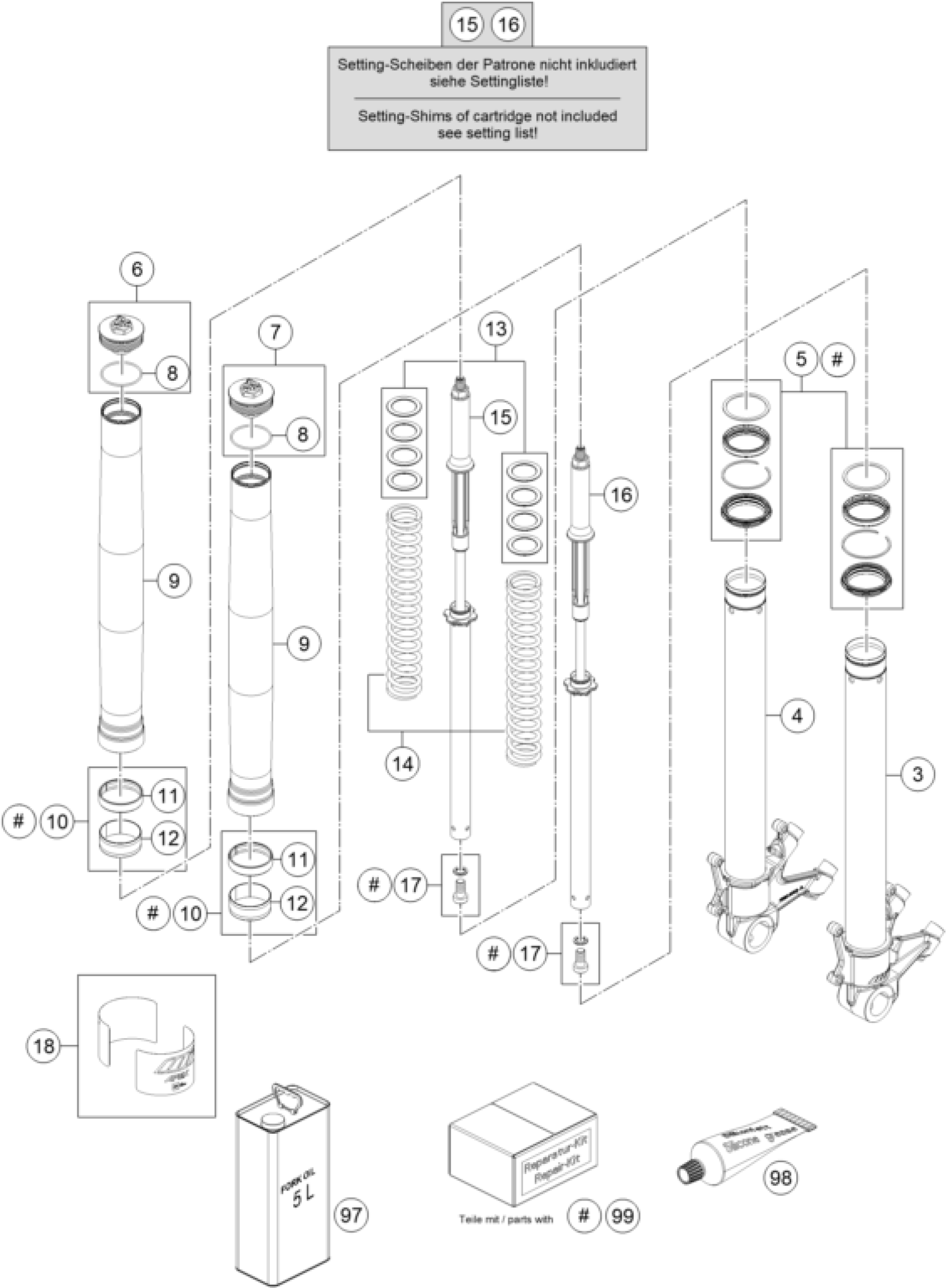

KTM 1290 SUPERDUKE R BLACK 17 <2017> FRONT FORK DISASSEMBLED Diagram

#

Description

Price

3

AXLE CLAMP W. INNER TUBE L/S

48601081S2

Unavailable

4

AXLE CLAMP W. INNER TUBE R/S

48601082S2

Unavailable

5

GASKET KIT CPL.

R14040

Unavailable

6

Screw cap M51x1,5 rebound red

48601062S2

Unavailable

7

Screw cap M51x1,5 compression

48601062S3

Unavailable

8

O-ring 45x2 NBR70 siliconized

46810340

Unavailable

9

OUTER TUBE L=550MM D=54/60

48600484

Unavailable

10

pilot bushing set

R14028

Unavailable

11

Guide bushing 48x52x12

48601009

Unavailable

12

Guide bushing 47x49x20

48601008

Unavailable

13

SPRING SPACER KIT

R514

Unavailable

14

Mainspring (38,2) 100-250 fork

95010083

Unavailable

15

Cartridge cmpl. right

57430049S4

Unavailable

16

Cartridge cmpl. left

57430048S4

Unavailable

17

AH SCREW M10X20 SET

00501020S1

Unavailable

97

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

98

SILICONE GREASE F. DUST STRI

T511

Unavailable

99

repair kit 1290 SD 2014

R14041

Unavailable

18

Sticker set APEX OC 90x40

52000210SET

Unavailable
