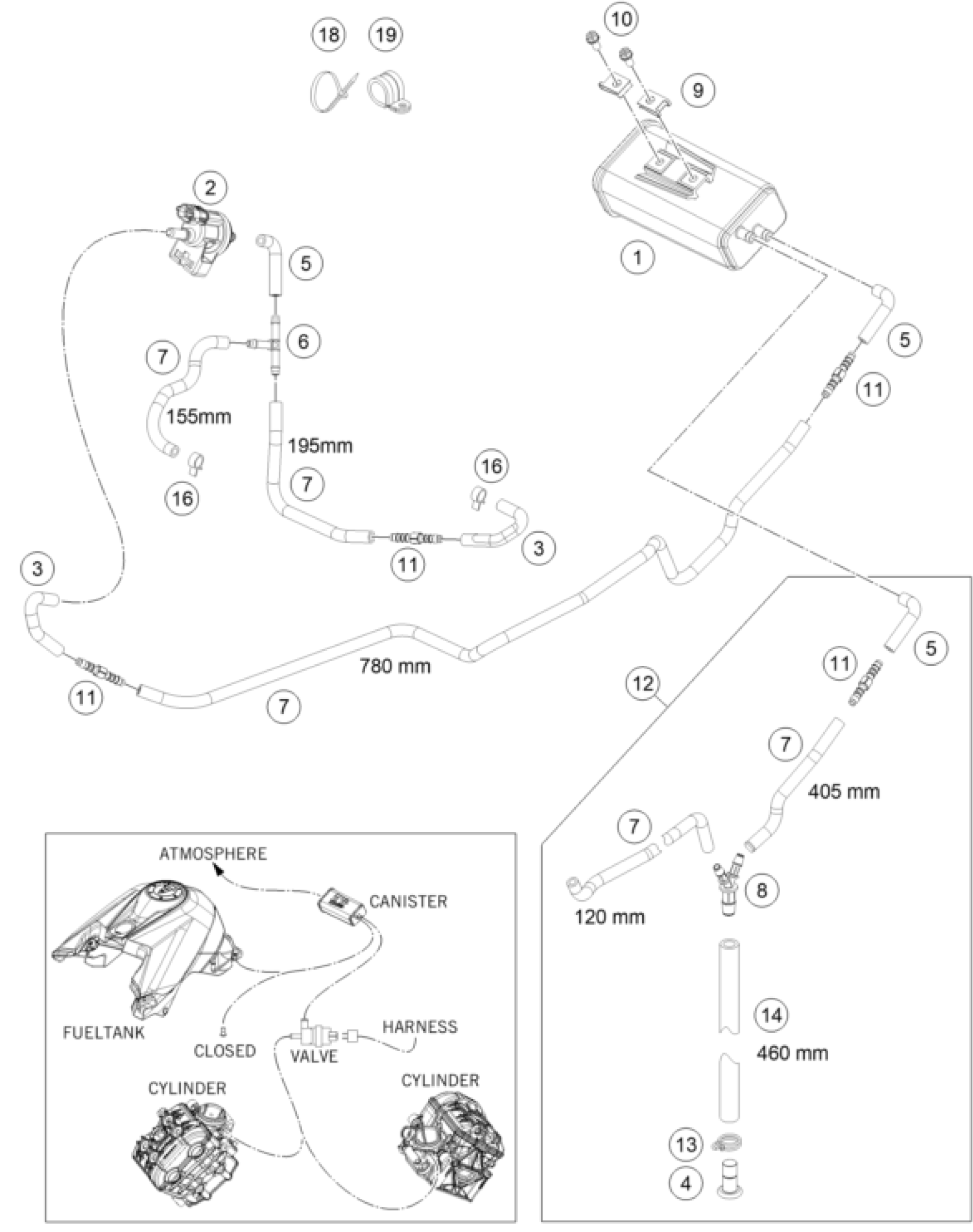

KTM 1290 SUPERDUKE R BLACK 17 <2017> EVAPORATIVE CANISTER Diagram

#

Description

Price

1

CARBON CANISTER

75015001200

Unavailable

2

EVAP valve

76015015000

Unavailable

5

PREFORMED HOSE 6X10 FPM

61315022000

Unavailable

6

T-connector TS-6 03

60015022000

Unavailable

7

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

9

clip nut M6

54603048100

Unavailable

10

HH collar screw M6x12 TX30

0025060126

Unavailable

11

HOSE CONNECTION STRAIGHT

69015019010

Unavailable

12

Hose

61615025033

Unavailable

13

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

14

HOSE EPA D=10/16 L=2000MM

78015119000

Unavailable

16

CLAMP YDNAC 10096F (9,6MM)

59007017000

Unavailable

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

19

CABLE CLAMP D=16

61315027000

Unavailable

3

HOSE PURGE VALVE

61415021000

Unavailable

8

Y-CONNECTOR YS 6-10-6

61315028100

Unavailable

4

PLUG D=10

61315026000

Unavailable
