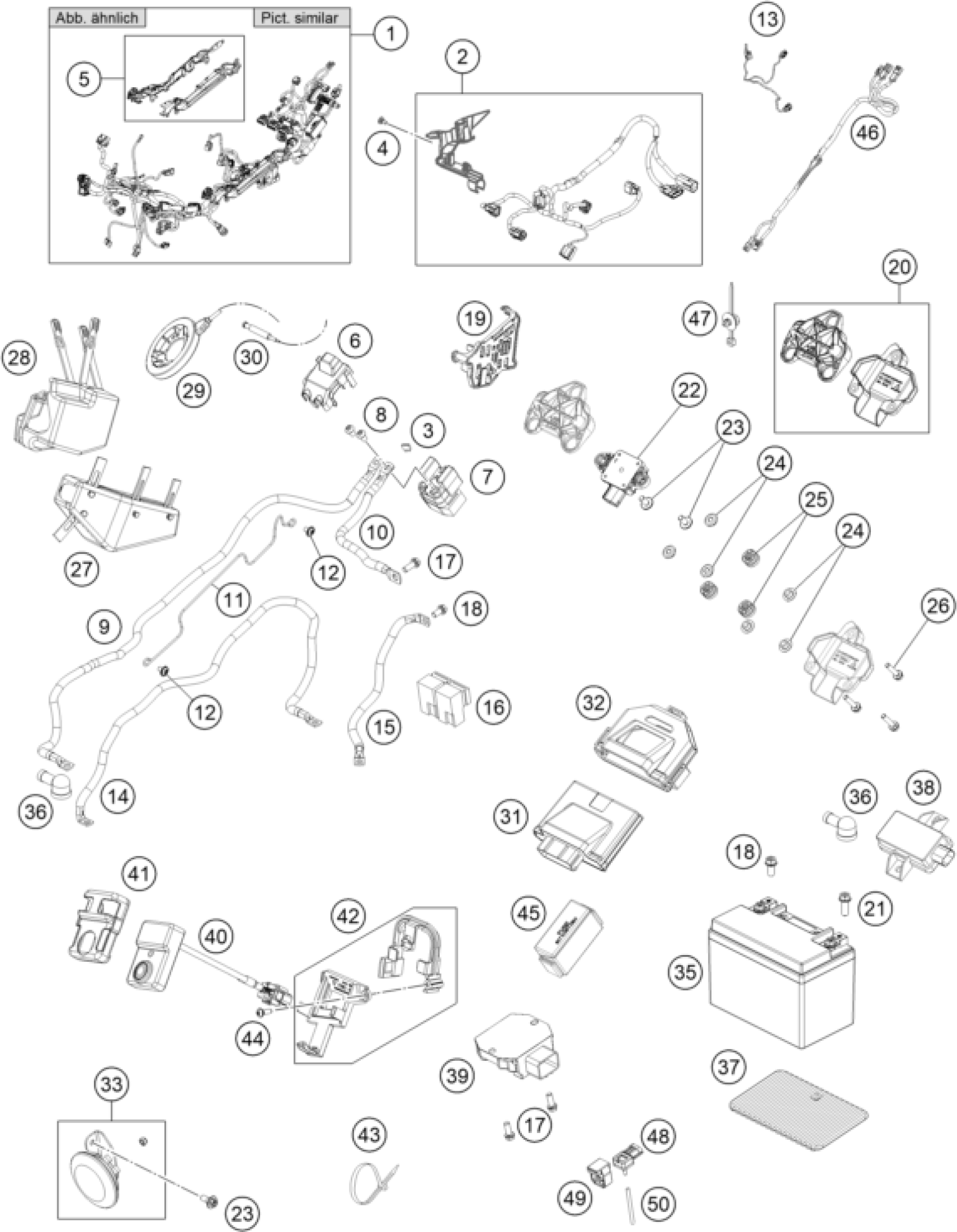

KTM 1290 SUPER DUKE RR 2021 WIRING HARNESS Diagram

#

Description

Price

1

Main wiring harness cmpl.

61711075133

Unavailable

2

Engine wiring harness cpl.

61711085033

$77.32

4

special screw M5x12

69008021160

$4.11

5

Cable channel, rear part

61711047000

$33.28

6

Cover flap, starter relay

64111058110

$3.08

7

Starter relay

76211058000

$79.19

8

Oval head screw ISK ISO7380 M6

0738060101

$1.49

9

Starter cable

61711059000

$22.62

10

Battery cable

61711059050

$18.22

11

Cable bracket

61711010010

$4.11

12

Oval head screw ISR M5x8-A2-07

073802050085

$1.49

13

Wiring harness topfeeder

61711086000

$67.69

14

Earth wire

61711097000

$22.06

15

Ground wire bat. Frame

61711098000

$14.48

16

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

17

HH collar screw M6x20 TX30

0025060206

$3.08

18

HH collar screw M6x10 TX30

0025060106

$3.08

19

Connector support frame

61711083050

$5.70

20

Coverage lean angle sensor SD-

61742190000

$31.22

22

Angle sensor

61542090000

$391.01

23

HH collar screw M6x15 TX30

0024060156

$3.08

24

Tachometer support bush

60714069050

$2.05

25

DAMP. COMPONENT SPEEDOMETER

61314069051

$5.32

26

HH COLLAR SCREW M5X25 ISA30

0025050256

$1.49

27

Plugbox rubber

61711003050

$33.74

28

Connector box 2

61711003060

$19.44

29

Antenna keyless

69011168000

$41.13

30

Temperatur sensor

61111018100

$31.59

31

Control unit MCU 3.0

60711033000

$646.64

32

Rubber band

60711033050

$11.12

33

Direct current horn complete

64111060033

$35.05

35

Battery 12V/96Wh

61711053100

Unavailable

36

Rubber grommet, starter port 0

60040009000

$3.08

37

RUBBER PLATE FOR BATTERY

61311053050

$10.84

38

RECEIVER AIR PRESSURE SENSOR

60312032000

$169.69

39

VOLTAGE REGULATOR

60311034000

$177.55

40

Connectivity unit

79114086100

$491.72

41

Rubber support, CCU

79114086050

$7.47

42

Fixation-Set Connectivity Box

61711046030

$20.37

44

EJOT PT SCREW K50X16 1451

0081050161

$1.49

45

Fuse Box

61711087050

$15.98

46

Wiring harness, rear part SD-R

61711076000

Unavailable

47

Plug-in cable tie for M5

61711094000

$14.58

43

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

43

Cable tie 200/4.6mm black

44011076200

Unavailable

43

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

21

HH collar screw M6x16 TX30

0025060166

$3.08

3

Plug-in fuse, big 30A

58011109130

$2.05

48

PRESSURE SENSOR 06

61041085100

$144.36

49

RUBBER SUPP. PRESSURE SENS. 06

61041085150

$5.23

50

HOSE 3,2X8,5 L=50 MM 05

61041095050

$6.54
