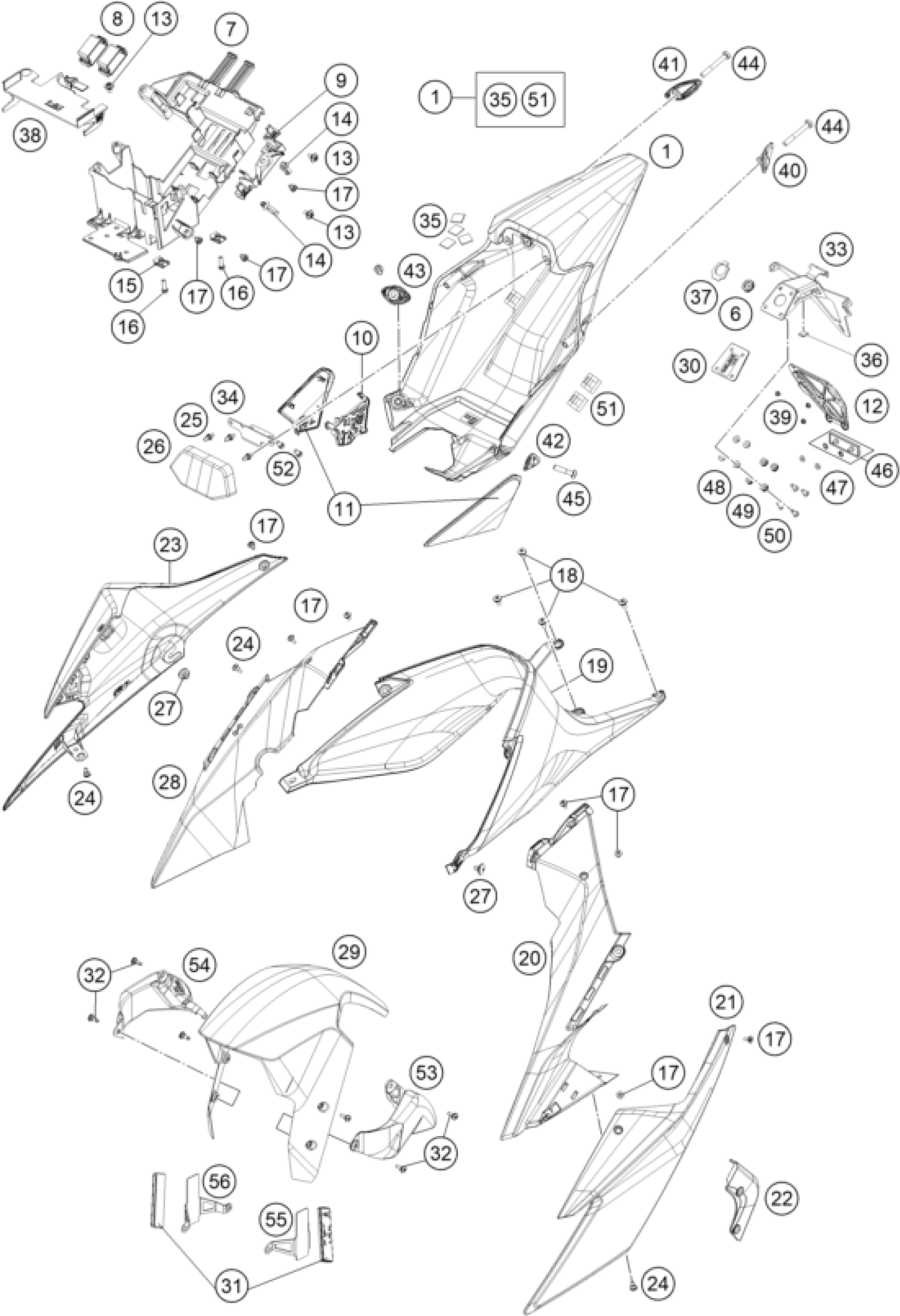

KTM 1290 SUPER DUKE RR 2021 MASK, FENDERS Diagram

#

Description

Price

1

Carbon rear part SD-RR MY21

61708919000

Unavailable

6

Rubber grommet, standby gas se

60006001023

$5.23

10

Connector support frame

61711083050

$5.70

11

Side Cover Set SD-R 20

61708044000

$10.65

15

clip nut M6

54603048100

$4.11

16

HH collar screw M6x20 TX30

0025060206

$3.08

17

special screw M5x12

69008021160

$4.11

18

special screw M6x14

69008021040

$2.05

19

Fuel tank fairing, rear

61708049000EBB

Unavailable

20

Inner cover left Carbon

61708926000

Unavailable

21

Fuel tank spoiler left

61708050000HCA

Unavailable

22

Plug cover

61411095000

$22.52

23

Fuel tank spoiler right

61708051000HCA

Unavailable

24

Special screw, M5x14

69008021260

$2.05

27

SCREW FOR SEAT M6X11,5/8

58407011100

$4.11

28

Inner cover right Carbon

61708927000

Unavailable

29

Fender carbon cmpl.

61708910000

Unavailable

31

SIDE REFLECTOR YELLOW "CEV"

60012080100

$6.44

32

Special screw, M5x14

69008021260

$2.05

33

License plate holder support S

61708115000C1

Unavailable

36

Adhesive Cable Mount Clip

90508902010

Unavailable

37

Seal licence plate holder supp

61708115040

Unavailable

38

ECU bracket

61711055000

$9.81

39

flanged hex nut EN 1661 M5

06923050003

$1.49

25

Quick lock pin M5

0940000700900

Unavailable

26

Support pad SD-RR

61708919010

Unavailable

40

Mounting flange top left black

61703002054C1

$32.81

41

Mounting flange top right blac

61703002055C1

$32.72

42

Fastening plate, bottom left

61703902064C1

Unavailable

43

Fastening plate, bottom right

61703902065C1

Unavailable

44

Hex screw w.intern.Torx w.coll

0035080606S

$4.11

45

SCREW M8X35 ISA45 SS

0035080356S

$5.23

34

Bracket, throttle cable

61707050040

Unavailable

12

Bracket for reflector

64112181100

$4.11

46

Rear reflector red

58412080400

$5.23

47

RUBBER 14X6.5X2.3MM

60408061050

$5.23

50

Roundhead screw, M5x14 TX25

58605083114

$3.08

48

SPACER BUSHING

60305083082

$2.05

49

Rubber grommet

0650001301000

Unavailable

35

Foam rubber 20x2

0660000202000

Unavailable

51

Clamp 26x26

0300002602601

Unavailable

52

HH collar screw M6x10 TX30

0025060106

$3.08

53

Brake cooling channel, left

61713932000

Unavailable

54

Brake cooling channel, right c

61713933000

Unavailable

55

Bracket, side reflector left

61712082010C1

Unavailable

56

Bracket, side reflector right

61712082020C1

Unavailable

30

Cover, carbon license plate di

61708019070

Unavailable

7

Electrics carrier

61711054000

$59.08

8

Rubber band TPMS

61711032050

$10.56

13

special screw M6x12x3

83008000012

$3.08

9

Bracket, fuse box

61711056000

$8.03

14

Cable tie w. socket D=6.5

69011092000

$1.49
