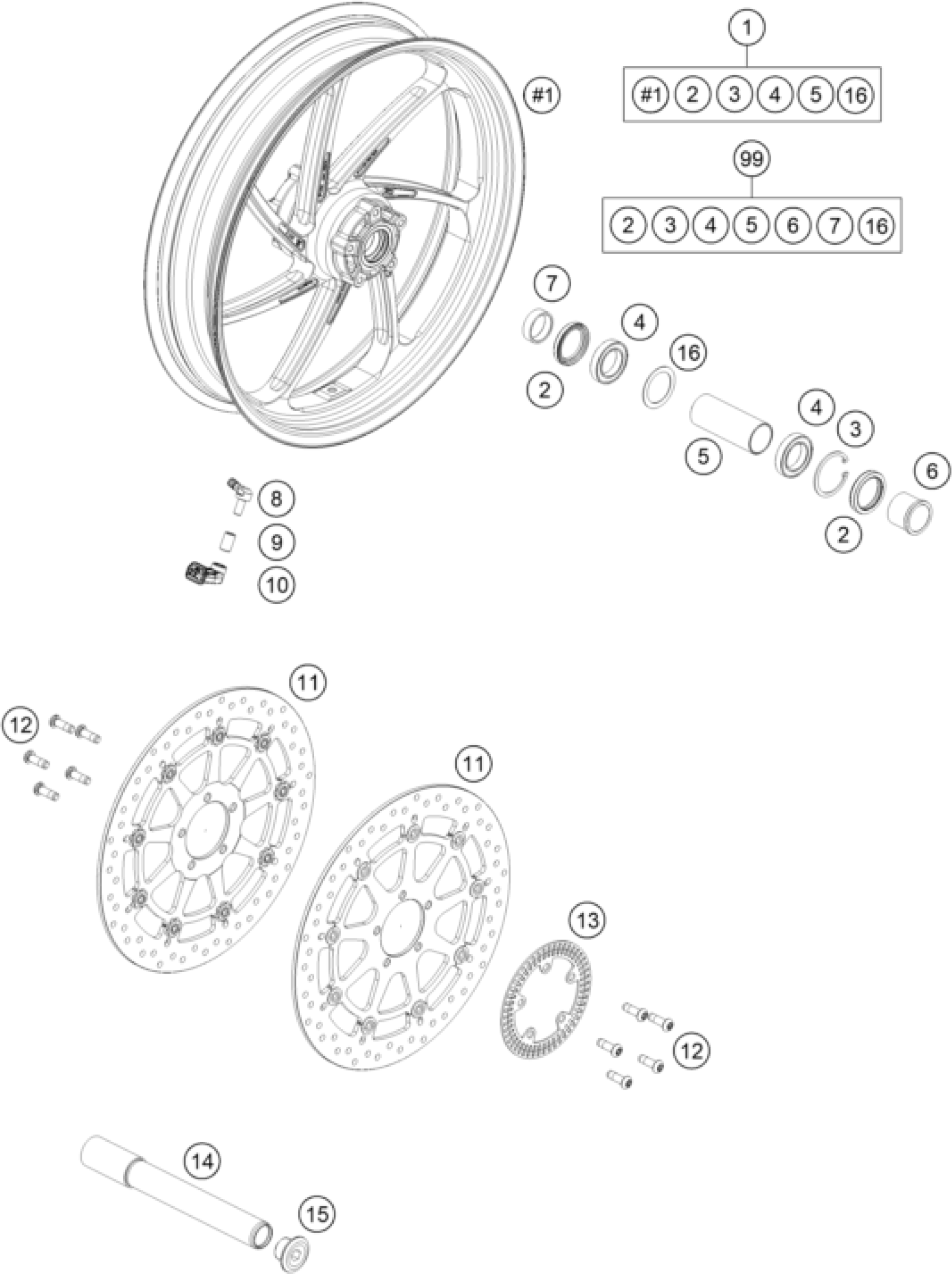

KTM 1290 SUPER DUKE RR 2021 FRONT WHEEL Diagram

#

Description

Price

1

Front wheel 3,5x17" cmpl.

61709004044C1

Unavailable

2

Radial shaft seal 35X47X7 TC

0760354771

$8.69

3

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

4

Grooved ball bearing 6906

0625069068

$34.68

5

Bearing spacing tube, front

61009011000

$22.81

6

SPACER BUSH. FR. WHEEL L/S 05

61009012000

$18.50

7

Spacer bush. fr. whee R/S 03

60009013000

$14.86

8

VALVE 8,5MM 90° F. TPMS SMALL

61412033060

$25.42

9

NUT F. TYRE-PRESSURE SENSOR SM

61412033050

$7.10

10

TIRE PRESSURE SENSOR SMALL

61412033000

$91.15

11

BRAKE DISK D=320/5

6130906000033

$357.91

12

Special screw M8X25 SL TX40

76009062000

$2.05

13

Phonic wheel, front

76042020000

$34.59

14

Wheel spindle, front wheel

61009081200

$81.15

15

AH screw M25X1.5 WS=12 05

61009082000

$18.41

99

Front wheel rep. Kit

61709015000

Unavailable

16

Bearing spacer tube fixing

61709011010

Unavailable
