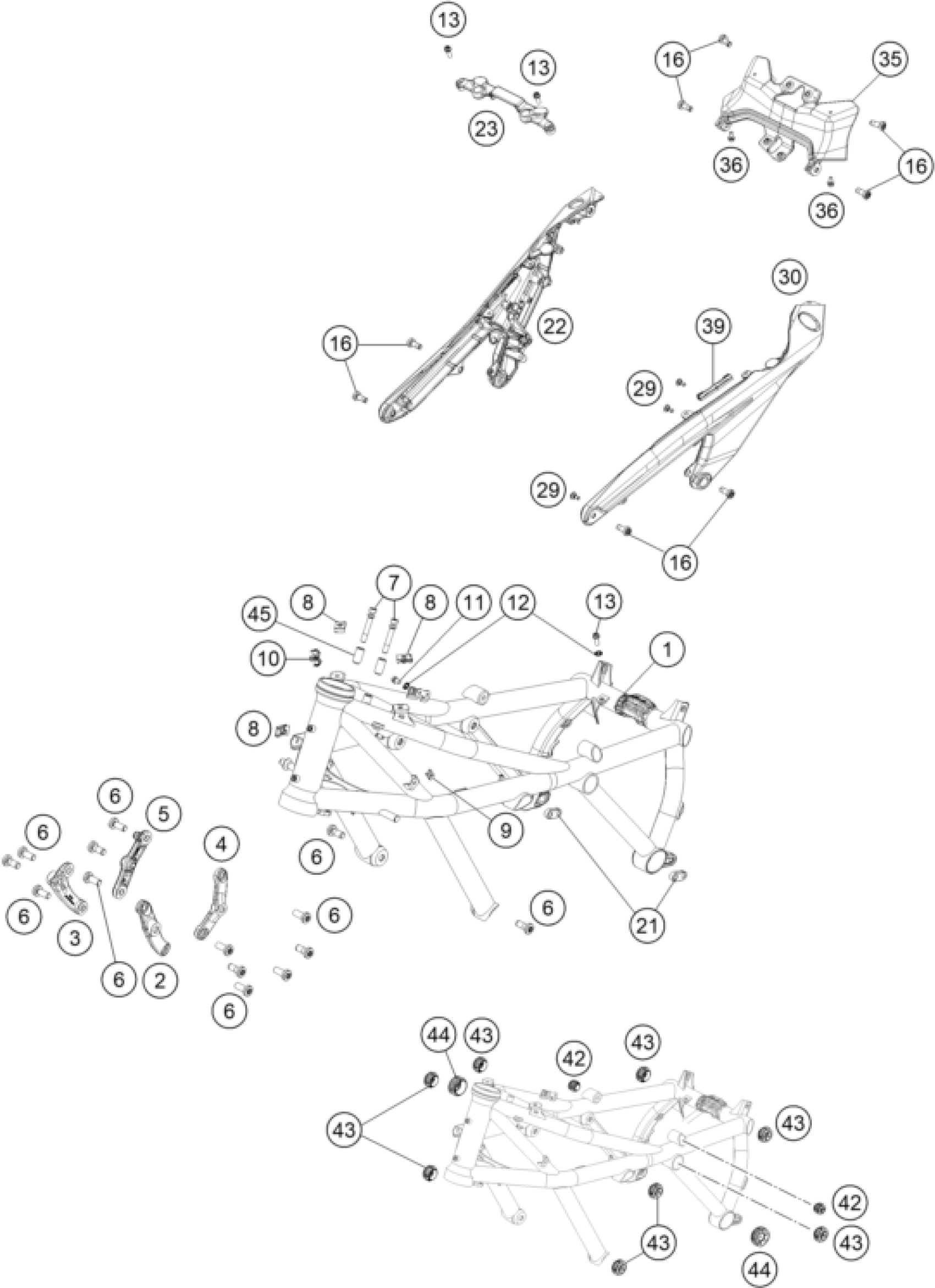

KTM 1290 SUPER DUKE RR 2021 FRAME Diagram

#

Description

Price

1

Frame 617TA

61703001000EB

Unavailable

2

Engine hanger front left

61703005000C1

$57.96

3

Engine hanger front right

61703006000C1

$57.96

4

Engine hanger rear left

61703007000C1

$50.76

5

Engine hanger rear right

61703008000C1

$55.72

6

HH collar screw M10x24 ISA45 S

0035100249S

$2.05

7

One-way screw 617

61711064000

$9.72

8

clip nut M6

54603048100

$4.11

9

clip nut M5

69008021080

$3.08

10

Support ABS-pipe d7.5

61342046000

$11.68

11

HH collar screw M6x10 TX30

0025060106

$3.08

12

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

13

HH collar screw M6x16 TX30

0025060166

$3.08

16

SHCS M8x20 TX45

0035080206S

$5.32

22

Subframe right

61703002020AB

Unavailable

23

Fuel tank bridge

61703002030C1

$72.83

30

Subframe left

61703002010AB

Unavailable

35

Cross brace, rear part

61703002040AB

Unavailable

36

HH collar screw M5x10 TX30

0025050106

$1.49

39

Edge protection

61703002060

$5.23

42

Plug small

61703288000

$2.80

43

Plug, small

61703188000

$2.80

44

Plug, large

61703088000

$3.73

45

Spacing tube ignition lock

61711065000

$5.98

21

Footrest bottom fixing nut

61703045010

$24.86

29

Screw, reservoir

69013099150

$2.05
