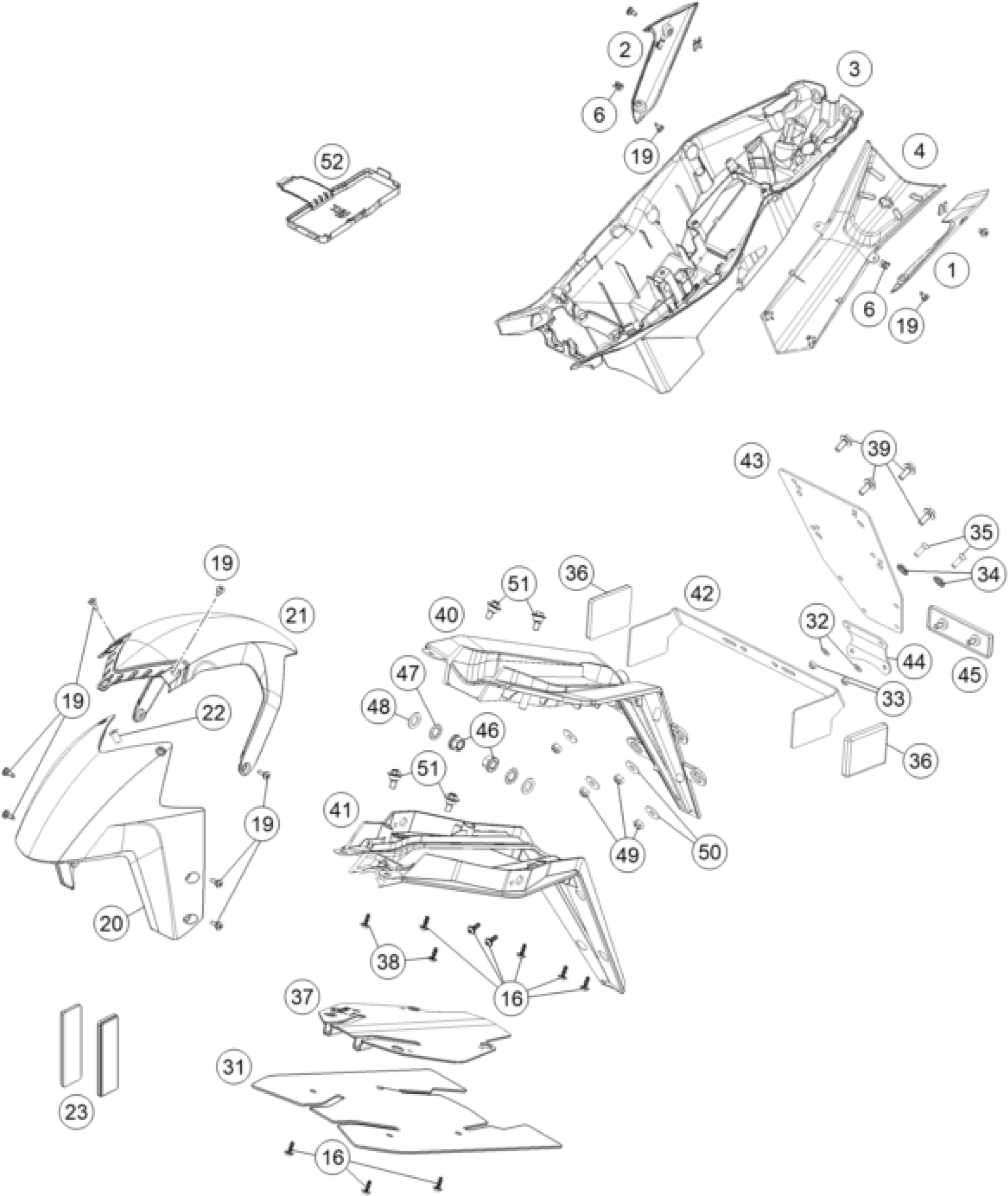

KTM 1290 Super Duke R, white 2018 MASK, FENDERS Diagram

#

Description

Price

1

Side fairing

61608041000KCA

$139.77

2

Side fairing

61608042000KCA

$139.77

3

Tail end lower part

61608018000

$89.00

4

REAR FAIRING LOWER PART BLACK

6130804000033

$12.99

6

clip nut M5

69008021080

$3.08

16

EJOT PT screw K50x12

0081050121

Unavailable

19

special screw M5x17

69008021060

$3.08

20

Fender

61308010000AB

$143.89

21

REAR FENDER BLACK

6130801100033

$27.87

22

blind plug nut M5 WN16A

60008008050

$3.73

23

SIDE REFLECTOR YELLOW "CEV"

60012080100

$6.44

31

SPLASH PROTECTION AUSTRALIA

61308123010

Unavailable

32

WASHER DIN0125-A 5,3

0125050003

$1.49

33

Self locking nut DIN 985 M5

0985050003

$2.05

34

WASHER 6MM

40006006000

$1.49

35

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

36

SIDE REFLECTOR RED REAR

16512180100

$7.10

37

SPLASH PROTECTION

61308023010

$8.31

38

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

39

HH collar screw M6x15 TX30

0024060156

$3.08

40

NUMBER PLATE CARRIER UPP. PART

61308022000

$48.33

41

NUMBER PLATE CARRIER LOW. PART

61308023000

$48.61

42

BRACKET SIDE REFLECTOR 06

62512081000

$27.95

43

license plate mouning plate

60012081200

$8.41

44

BRACKET FOR REFLECTOR

58412080050

$6.07

45

Rear reflector red

58412080400

$5.23

46

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

47

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

48

Washer DIN0433-M10

0433100003

$1.49

49

Self lock. nut DIN985-M6-A2

0985060003

$2.05

50

Washer DIN9021-A 6.4

0021060003

$2.05

51

Special screw M6x15x5.5

83008100015

$3.08

52

storage compartment smartphone

61612054100

$19.35
