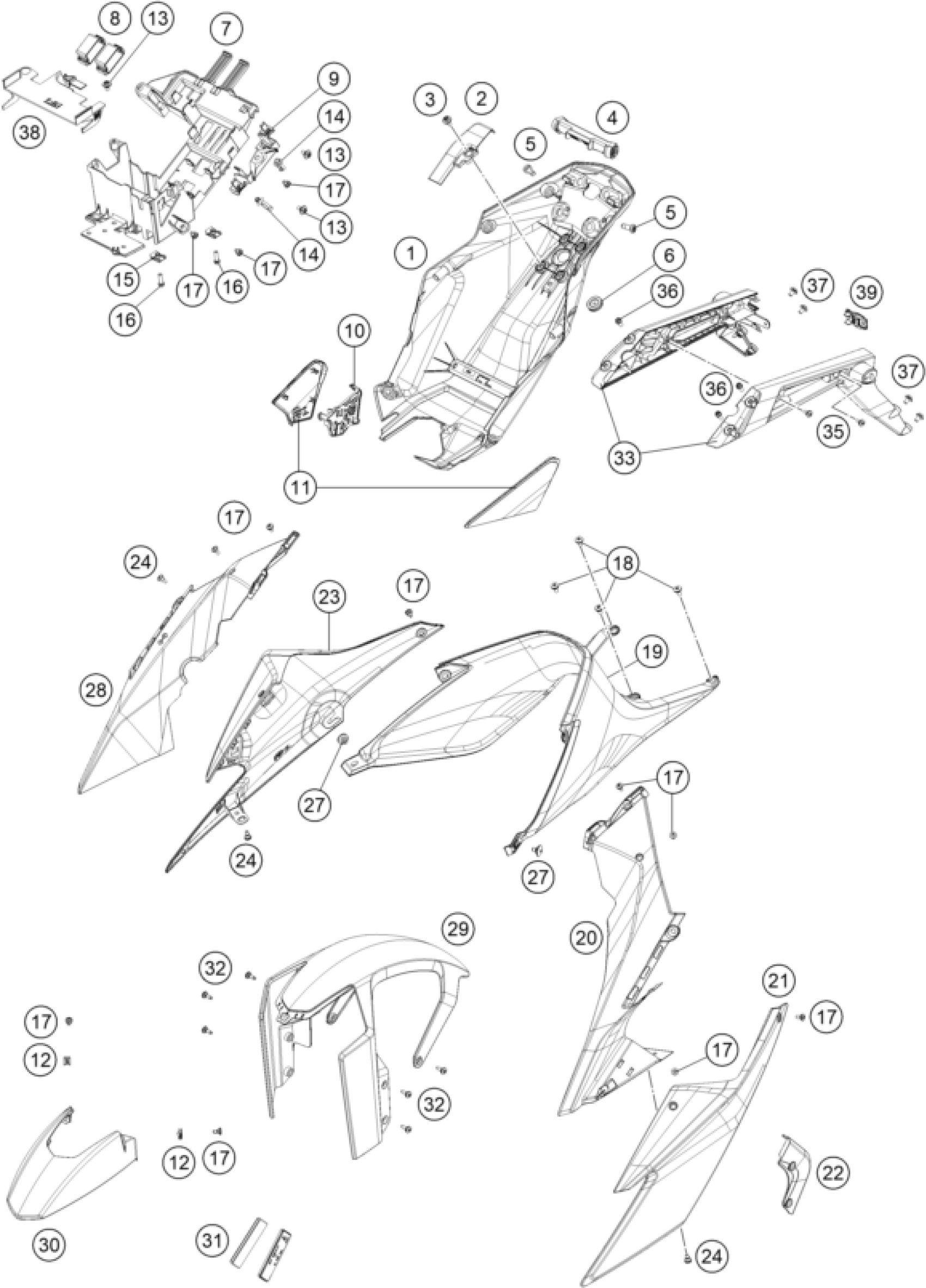

KTM 1290 SUPER DUKE R, orange 2022 MASK, FENDERS Diagram

#

Description

Price

1

Lower rear panel

61708019000

$346.78

2

Cable bracket tail end lower p

61708019060

$9.00

3

Special screw M6x15x5.5

83008100015

$3.08

4

Cross-connector

61708019050

$30.75

5

SHCS M8x20 TX45

0035080206S

$5.32

6

Rubber grommet, standby gas se

60006001023

$5.23

7

Electrics carrier

61711054000

$59.08

8

Rubber band TPMS

61711032050

$10.56

9

Bracket, fuse box

61711056000

$8.03

10

Connector support frame

A64111083050

$12.33

11

Side Cover Set SD-R 20

61708044000

$10.65

13

special screw M6x12x3

83008000012

$3.08

14

Cable tie w. socket D=6.5

69011092000

$1.49

15

clip nut M6

54603048100

$4.11

16

HH collar screw M6x20 TX30

0025060206

$3.08

17

special screw M5x12

69008021160

$4.11

18

special screw M6x14

69008021040

$2.05

19

Rear fuel tank fairing

61708049000EB

$247.39

20

Front fairing left

61708026000

$31.88

21

Radiator shroud left

61708050000EBB

$379.79

22

Plug cover

61411095000

$22.52

23

Radiator shroud right

61708051000EBB

$379.79

24

Special screw, M5x14

69008021260

$2.05

27

Seat screw M6x11.5 ISA30

0900000601200

$4.11

28

Inner cover right cpl

61708027033

$47.86

29

Fender rear part

61708011000

$31.88

30

Fender front part

61708010000EB

$110.04

31

SIDE REFLECTOR YELLOW "CEV"

60012080100

$6.44

32

special screw M5x17

69008021060

$3.08

33

License plate holder support

61708015000

$89.19

35

special screw M5x12

69008021160

$4.11

36

HH collar screw M6x12 TX30

0025060126

$3.08

37

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

38

ECU bracket

61711055000

$9.81

39

Bracket, license plate lightin

61708015030

$6.82

12

RANGE CHANGE METAL NUT M5 INOX

54603048600

$2.05
