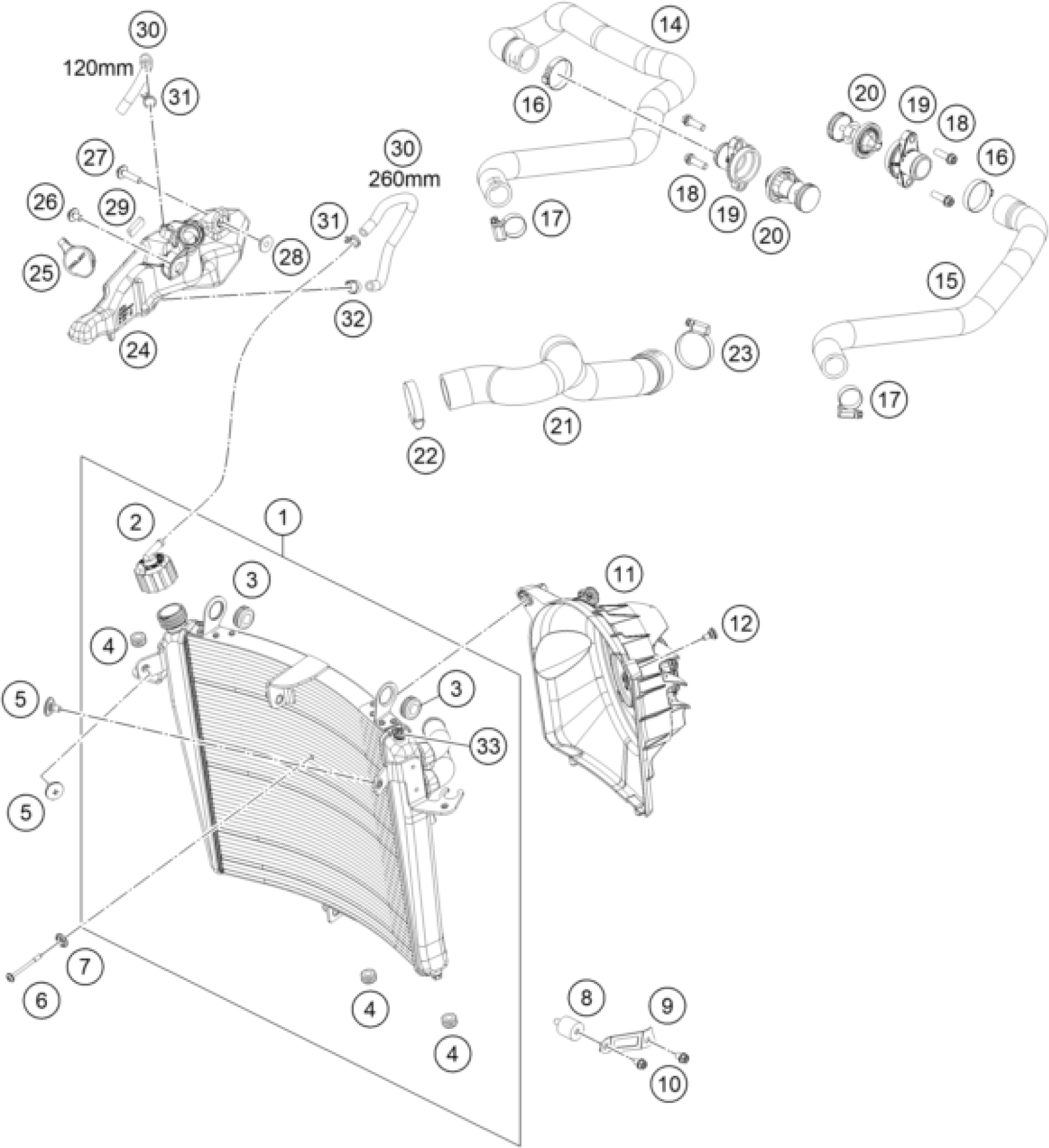

KTM 1290 SUPER DUKE R, black 2022 COOLING SYSTEM Diagram

#

Description

Price

1

Radiator

61735010100

$486.19

2

RADIATOR CAP 1,8 BAR

72035016000

$20.94

3

RUBBER SLEEVE D=12MM

41001052000

$4.11

4

rubber grommet D=8mm open

31008060000

$2.05

5

Seat screw M6x11.5 ISA30

0900000601200

$4.11

6

Screw K40x46/10

69135015

$4.11

7

Washer

69150036

$1.49

8

silentbloc M6

90235001001

$5.23

9

Fixing sheet bottom

61735005000C1

$25.52

10

HH collar screw M6x8 TX30

0025060086

$2.05

11

Radiator fan cover cmpl.

61735044033

$191.11

12

special screw M5x12

69008021160

$4.11

14

Pre-formed hose, cylinder, fro

61735026000

$27.76

15

Pre-formed hose, cylinder, rea

61735025000

$22.43

16

Stufenlose Einohrklemme 33,1mm

00050331706

$3.08

17

Hose clamp GEMI 20-32

76235028000

$4.11

18

HH collar screw M6x20 TX30

0025060206

$3.08

19

WATER CONNECTION CPL.

61235019100

$22.43

20

THERMOSTAT 70 DEGREE

61235017000

$33.65

21

Pre-formed hose coolant pump-r

61735027000

$31.03

22

Hose clamp 25-40 SGT 4

10001120000

$5.32

23

Spring band clamp D42mm

0310001204200

$5.23

24

Water compensating tank

61735065000

$80.87

25

Reservoir cover

61935065010

$12.61

26

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

27

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

28

Spring retainer 6.2X12X18X5.2

59032006050

$3.08

29

METAMOLL F. TAIL LIGHT COVER

61408015030

$1.49

30

HOSE 6X10 EPDM 03

60035067001

Unavailable

31

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

32

stepless one-ear clamp

00050119706

$3.08

33

collar screw

69135013

$5.32
