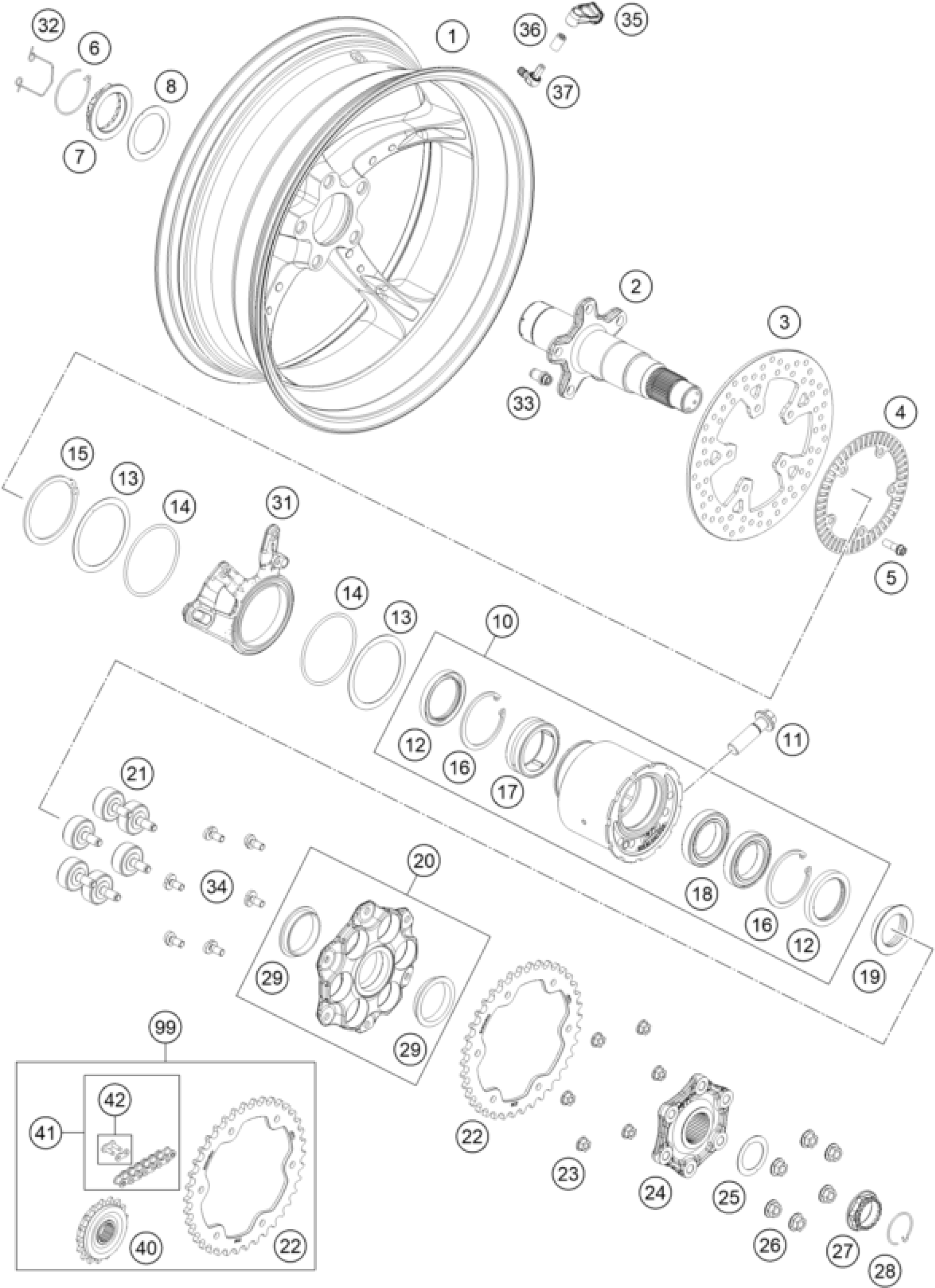

KTM 1290 SUPER DUKE R, black 2021 REAR WHEEL Diagram

#

Description

Price

1

Rear wheel 6x17"

61710003000C1A

Unavailable

2

Rear wheel axle

61310385100

Unavailable

3

BRAKE DISC 240MM

76010160000

Unavailable

4

Phonic wheel, rear

76042121000

Unavailable

5

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

6

Safety wire, right

61310187000

Unavailable

7

AXLE NUT M50X1.5

61310186100

Unavailable

8

WASHER 69X1

61310016000

Unavailable

10

CLUTCH HUB HOUSING CPL.

61310010044

Unavailable

11

HH collar screw M16X1.5X55

61310021000

Unavailable

12

Radial shaft seal 52X68X8

0760526880

Unavailable

13

WASHER 94X1

61310019000

Unavailable

14

O-ring 84.00X3.5 NBR70

0770840035

Unavailable

15

CIRCLIP DIN471-78X2.5

0471078250

Unavailable

16

CIRCLIP DIN472-68X2.5

0472068250

Unavailable

17

NEEDLE BEARING RNA4909-2RSR-XL

0617456822

Unavailable

18

Grooved ball bearing 61909-2RS

0625061909

Unavailable

19

SPACER RING

61310014000

Unavailable

20

SPROCKET SUPPORT CPL.

6131005404433S

Unavailable

21

Shock absorber

61310059100

Unavailable

22

SPROCKET STEEL DUKE 1290 Z38

61310151038

Unavailable

23

Hex. nut DIN EN 1661 M8 WS13

06923080003

Unavailable

24

JAR DAMPER CARRIER

6131005000033S

Unavailable

25

SHIM 50X1

76010116000

Unavailable

26

Hex. nut DIN6923 M10X1.25-10

06923100003

Unavailable

27

AXLE NUT M35X1.5

61310086000

Unavailable

28

Safety wire, left

76010187000

Unavailable

29

IGUS BEARING D=50

76010052000

Unavailable

31

BRAKE CALIPER ADAPTER BLACK

6131307500033S

Unavailable

32

Safety wire, inner

61310010011

Unavailable

33

Centering bolt M8

61310213000

Unavailable

34

Rear sprocket screw M8x18 S

61310052100

Unavailable

35

TIRE PRESSURE SENSOR SMALL

61412033000

Unavailable

36

NUT F. TYRE-PRESSURE SENSOR SM

61412033050

Unavailable

37

VALVE 8,5MM 90° F. TPMS SMALL

61412033060

Unavailable

40

Chain sprocket 17-t, damped 0

60033129017

Unavailable

41

CHAIN DID525 VAZ & MASTER LINK

61310165118

Unavailable

42

MASTER LINK FOR CHAIN DID VAZ

61310066000

Unavailable

99

DRIVETRAIN KIT 1290 SD 17T/38T

00050002029

Unavailable
