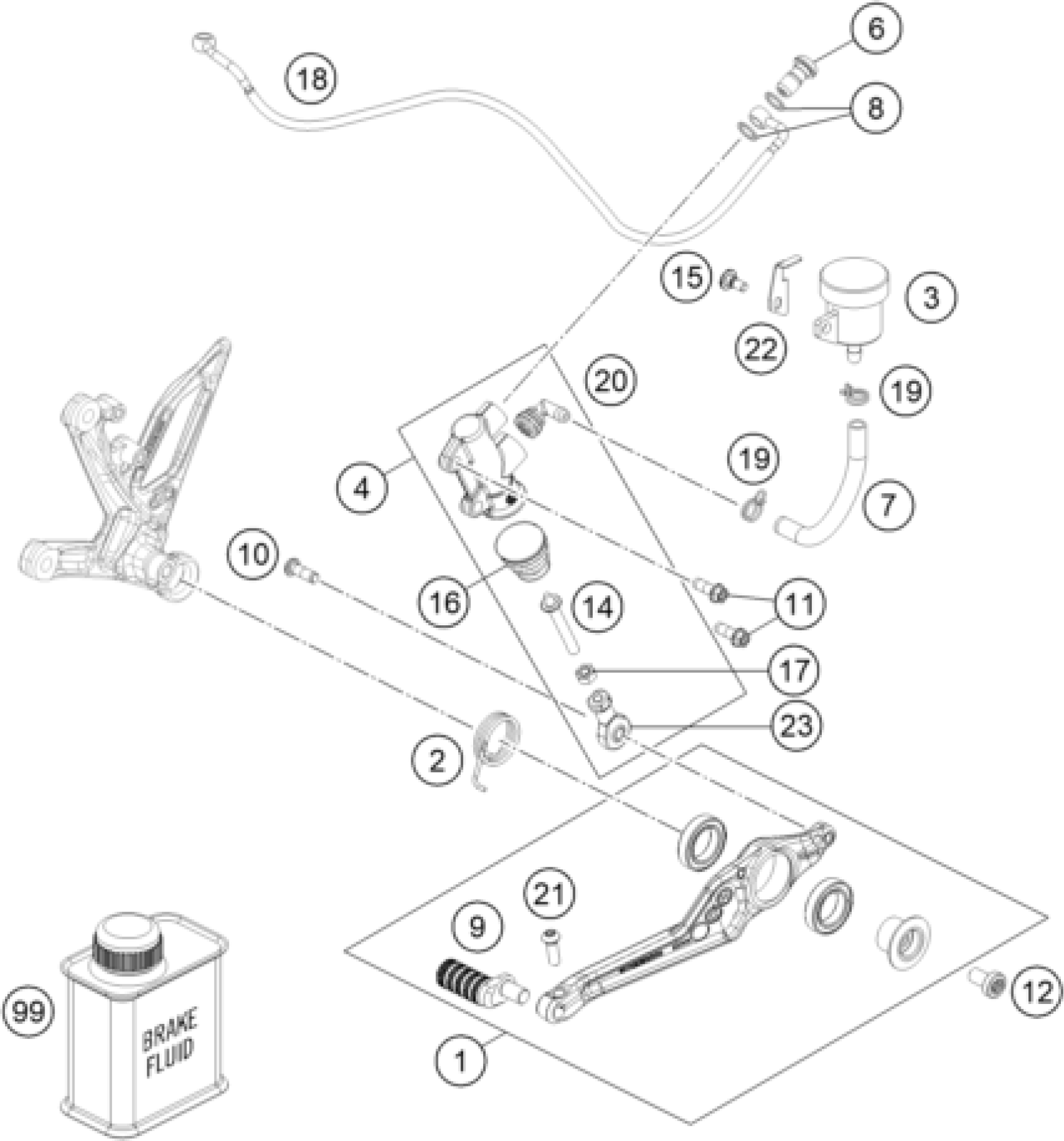

KTM 1290 SUPER DUKE R, black 2021 REAR BRAKE CONTROL Diagram

#

Description

Price

3

Brake fluid reservoir cmpl.

61713069044

$15.42

4

Rear master cylinder

61713060000C1

$197.00

6

banjo bolt M10x1x19.5

62113020100

$8.78

7

HOSE FOR RESERVOIR 6X1,5

58007016101

$16.35

8

sealing ring DIN 7603 10x14x1

0603100141

$2.05

10

oval head screw M6x18 A2-70 S

0738060185S

$1.49

14

PUSH ROD CPL.

60313056044

$69.93

15

Screw, reservoir

69013099150

$2.05

16

RUBBER SLEEVE

54513151000

$17.48

17

STOP NUT DIN6926 M8 SS

0926080003

$1.49

18

Brake line rear master cylinde

61742002000

$79.09

19

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

20

ANGLE PIECE

54513155000

$14.58

22

Lock washer, brake fluid reser

61713069020

$11.40

23

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

$37.20

99

Brake fluid DOT5.1 0,25L

00062030000

$12.52

1

Rear brake lever cmpl.

61713050133C1

$173.34

2

Leg spring

61713052000

$3.08

11

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

12

AH-COLLAR SCREW M8X15 TORX45

0035080156S

$2.05

21

Round head scr. ISR M6x18-A2-7

0738060185

$1.49

9

Footbrake lever step plate

61713051000C1

$47.12
