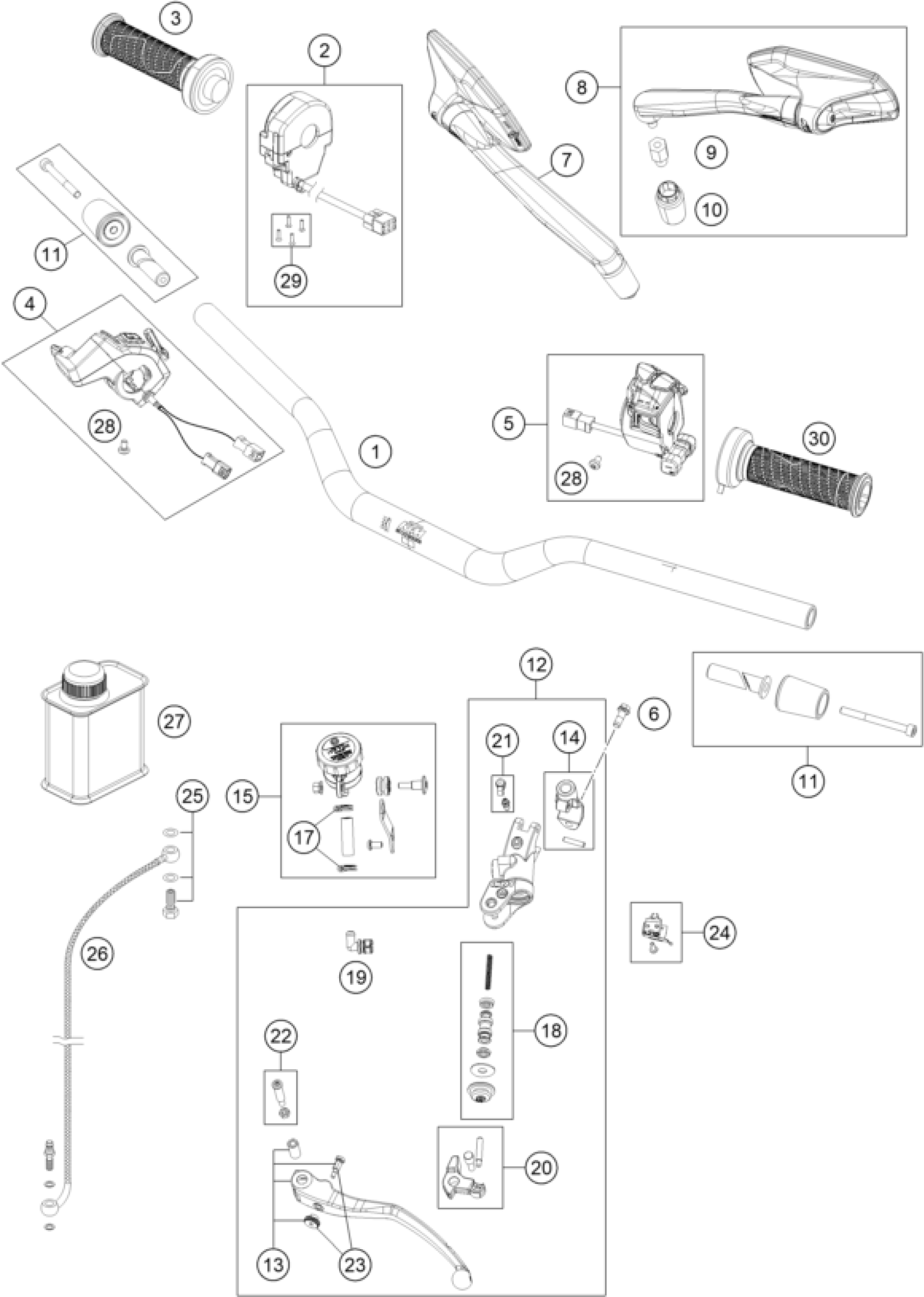

KTM 1290 SUPER DUKE R, black 2021 HANDLEBAR, CONTROLS Diagram

#

Description

Price

1

Handlebar Dk=28.5mm

61702001000C1

$182.50

2

Ride-by-wire without throttle

60711012000

$100.88

3

Grip tube (no heating)

60702012000

$74.51

4

Start / Emergency stop switch,

61711074100

$248.98

5

Combination steering switch, l

61711070100

$494.51

6

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

7

Mirror right

61312041300

$93.30

8

Mirror left

61312040300

$65.35

9

ADAPTOR FOR MIRROR

61312040050

$15.14

10

RUBBER SLEEVE

61312040030

$7.85

11

Handlebar weight with silent b

61702104000C1

$31.13

12

MASTER CYLINDER CPL.

6130203014430

$692.92

13

CLUTCH LEVER CPL.

6130203100030

$89.00

14

CLAMP MIRROR W. TENSION PIN

6130204400030

$45.06

15

Reservoir cpl. with bracket

61702055044

$151.65

17

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

18

REP. SET PISTON D=12MM 2007

59413008000

$96.58

19

ANGLE PIECE CPL. (DOT)

61002051144

$15.04

20

ROCKER CPL. 05

61002056000

$43.94

21

BLEEDER SCREW WITH CAP

61002054000

$23.55

22

LEVER SCREW SHORT CPL. 09

50302038200

$22.90

23

ADJUSTING SCREW CPL.

61002043000

$19.72

24

CLUTCH SWITCH ATV

83111049000

$106.49

25

HOLLOW SCREW + COPPER GASKET

59032062000

$25.05

26

CLUTCH PIPE

61032063100

$88.35

27

Brake fluid DOT5.1 0,25L

00062030000

$12.52

28

PAN HEAD SCREW M5X10 TX25

073800501002

$1.49

29

SCREW SET START-STOP SWITCH

76011073110

$6.72

30

Grip LHS w/o heater

60702039100

$86.29
