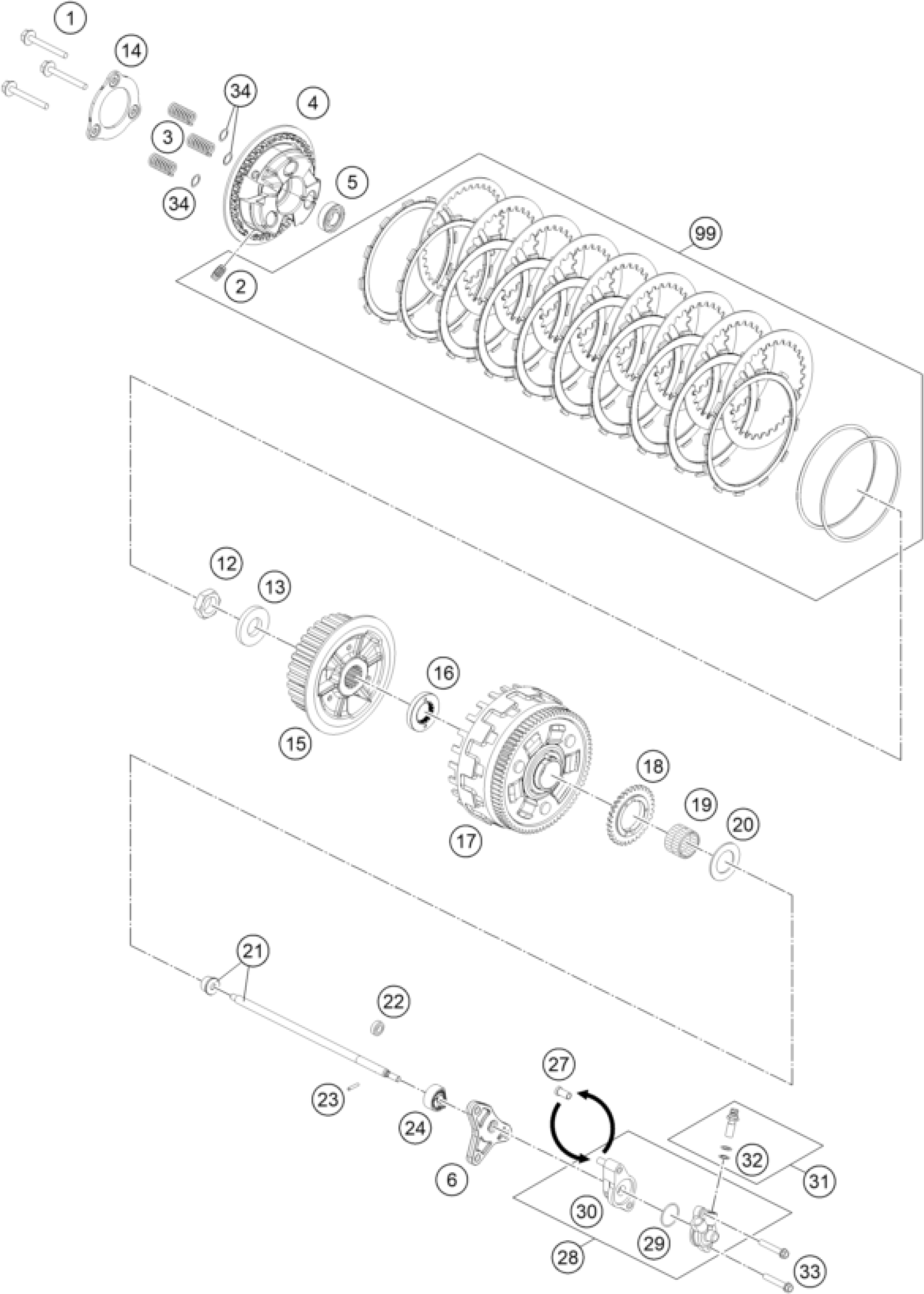

KTM 1290 SUPER DUKE R, black 2021 CLUTCH Diagram

#

Description

Price

1

HH collar screw M6X45 WS10

61332044000

$9.62

2

DAMPER

61332007000

$35.71

3

Clutch spring, orange

61432005000

$12.15

4

PRESSURE CAP

61332003000

$124.35

5

BALL BEARING 6003 JR2 C4

0625060032

$15.98

6

DISTANCE PLATE 7MM

61232068100

$11.02

12

hexagonal nut M22x1.5

0910002200800

$4.11

13

wedge lock washer M22

0252012303500

$5.70

14

ARRESTOR PRESSURE CAP

61332006000

$21.03

15

INNER CLUTCH HUB

61332002000

$124.44

16

SECTION WASHER 03

60032021000

$33.93

17

CLUTCH CAGE CPL.

61332001044

$829.34

18

oil pump gear 32 teeth

60038001132

$27.85

19

Needle bushing HK 30X35X26

0618303526

$60.11

20

STOP DISK 30,2/50/2

60032020000

$7.85

21

Push rod assembly 117mm

61232154000

$26.83

22

SHAFT SEAL RING 9X18X06 B-NBR

0760091862

$5.23

23

Needle roll.DIN5402 NRB 3X17.8

0402031780

$1.49

24

PUSH ROD GUIDE

61232069000

$6.44

27

SLEEVE CLUTCH CONTR.

61232061051

$15.33

28

SLAVE CYLINDER CPL. LC8 DOT

60032061344

$226.17

29

O-RING GASKET 03

60032065000

$12.61

30

DISTANCE CLUTCH CONTR. CPL.

60032061050

$57.68

31

Hollow screw cmpl. M 10x1 98

50332062000

$34.96

32

sealing ring DIN 7603 10x14x1

0603100141

$2.05

33

HH collar screw M6x55 TX30

0025060556

$3.08

34

SUPPORT CLUTCH SPRING

61332004000

$8.69

99

Clutch kit

61732011010

Unavailable
