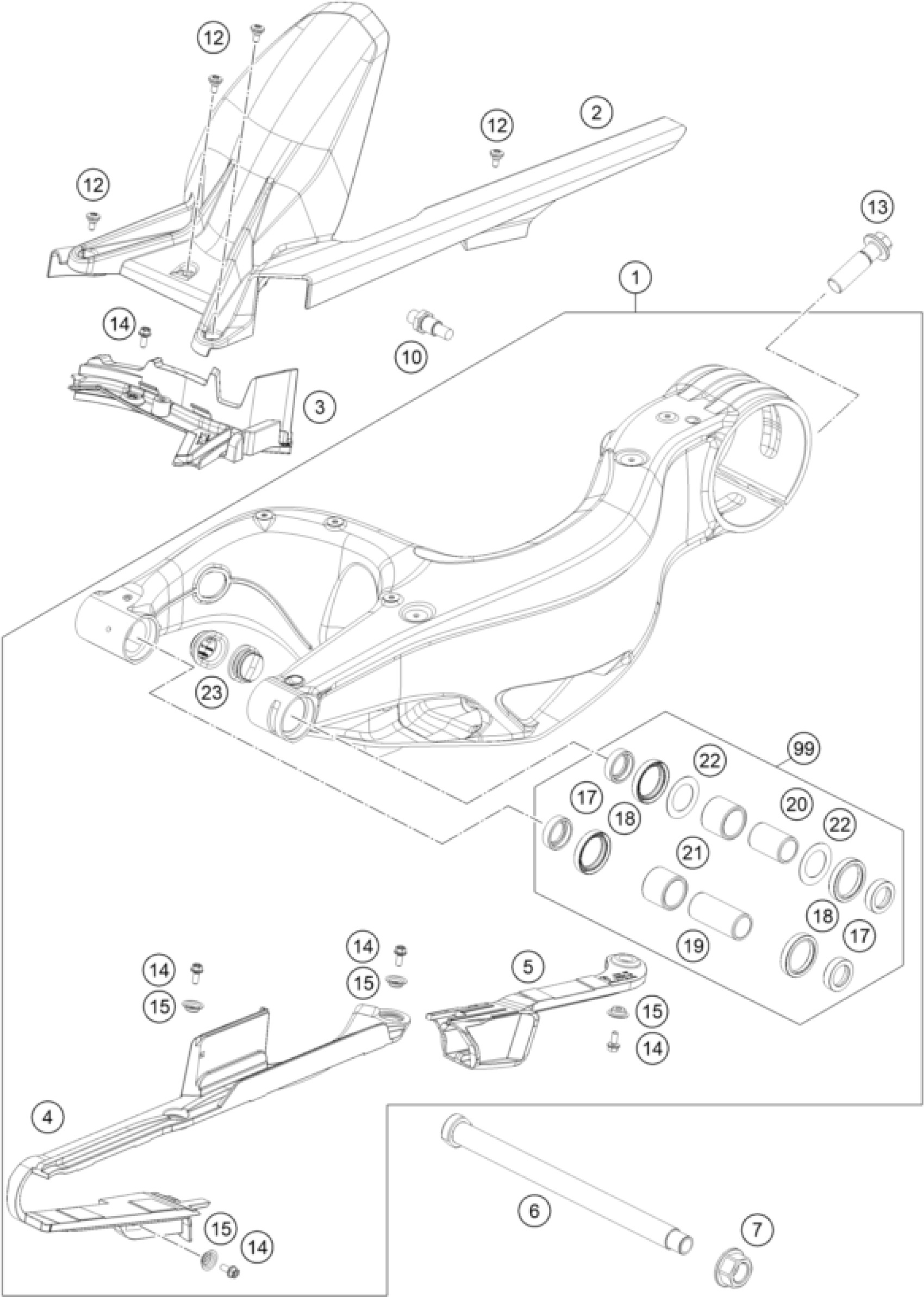

KTM 1290 Super Duke R, black 2020 SWING ARM Diagram

#

Description

Price

1

Swingarm cmpl. SD-R 20

6170403004433

$1,554.34

4

Front chain slider

61704060000

$22.99

5

Rear chain slider

61704070000

$15.61

14

HH collar screw M5x12 TX30

0025050126

$3.08

15

BUSH FOR CHAINSLIDER GUARD 02

46104066050

$8.31

2

Splash protection

61704050000

$35.52

12

special screw M5x12

69008021160

$4.11

3

Brake line guide

61704042000

$21.68

6

Swingarm pivot

69004037344

$73.76

7

Collar nut M19X1.5 SW=27MM

60004038200

$17.94

13

HH collar screw M16X1.5X55

61310021000

$8.69

23

Locking cap swingarm

61304041100

$8.69

10

BOLT BRAKE SADDLE BRACKET

76004142000

$30.10

17

Radial shaft seal 30X40X7

0760304073

$4.11

18

Bucket f. shaft seal ring 03

60004034000

$8.03

19

Inner ring JR 20X25X56.5

69004032000

$36.08

20

INNER RING JR20X25X38,5 03

60004032000

$18.13

21

NEEDLE BUSH HK2526B 03

60004031000

$10.65

22

Stop disk 03

60004033000

$2.05

99

swingarm rep. kit

69004230010

$96.30
