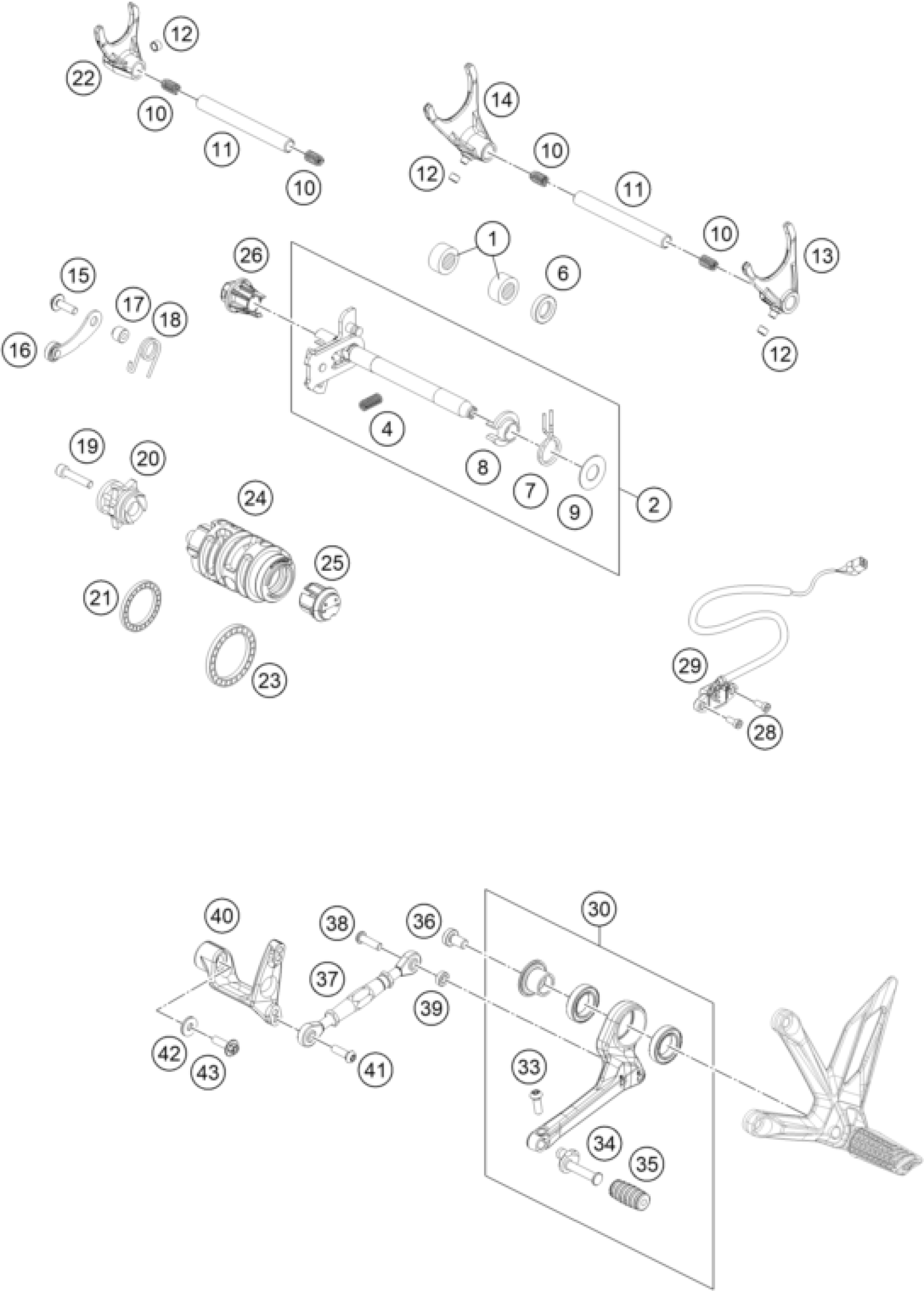

KTM 1290 Super Duke R, black 2020 SHIFTING MECHANISM Diagram

#

Description

Price

1

needle sleeve HK 1412 14x20x12

54632095000

$7.00

2

Shift shaft cmpl.

61734005044

Unavailable

4

TENSIONING SPRING 0,8MM

56534013100

$1.49

6

radial shaft seal 14x24x6 B

0760142460

$9.25

7

RETURN SPRING 2.3 MM

61434014000

$14.86

8

SPRING GUIDE

54634020000

$6.44

9

STOP DISK 14X30X1

54634050000

$2.05

10

PRESSURE SPRING 0,9MM

58038023200

$4.11

11

SHIFT RAIL 11,8X105MM

59034020000

$13.36

12

SHIFTING ROLLER 6X8X5,2

50334018100

$4.11

13

Shift fork 2/3 gear

61734002000

$68.25

14

Shift fork 1/4 gear

61734001000

$68.25

15

HH collar screw M6x20 TX30

0024060206S

$1.49

16

LOCKING LEVER CPL.

61434024000

$41.60

17

SLEEVE FOR LOCKING LEVER 07

75034052000

$4.11

18

SPRING - LOCKING LEVER

61234023000

$6.07

19

Hexagon socket screw, DIN0912-

0912060309S

$1.49

20

SHIFT LOCATING DRUM CPL.

61434015000

$30.47

21

BALL BEARING 61805 C3

0625618050

$43.94

22

Shift fork 5/6 gear

61734003000

$67.03

23

GROOVED BALL BEARING 6808 JRC3

0625068080

$32.16

24

Selector drum 6 gear

61734012001

$96.02

25

Magnet bracket cmpl.

79234012020

$58.71

26

MAGNET HOLDER

61434050000

$53.29

28

CYL. SCREW DIN6912 M5X14 8.8

0984050143S

$2.05

29

GEAR POSITION SENSOR

60411023000

$173.62

30

Gear shift lever cmpl.

61734031033C1

$175.49

33

Round head scr. ISR M6x18-A2-7

0738060185

$1.49

34

Gear shift lever, foot peg

61734032000C1

$43.75

35

Rubber Step Shiftlever

61734035000

$3.08

36

AH-COLLAR SCREW M8X15 TORX45

0035080156S

$2.05

37

Shift rod cmpl.

61334036044

$93.30

38

Oval head screw ISR M6x22-A2-7

0738060225S

$1.49

39

Spacer bushing

61703038060C1

$7.28

40

Gear linkage

61734030000C1

$92.09

41

Oval head screw ISR M6x20-A2-7

0738060205S

$1.49

42

PAIR NORDLOCK WASHER M6

50233041500

$4.11

43

HH collar screw M6x20 TX30

0024060206S

$1.49
