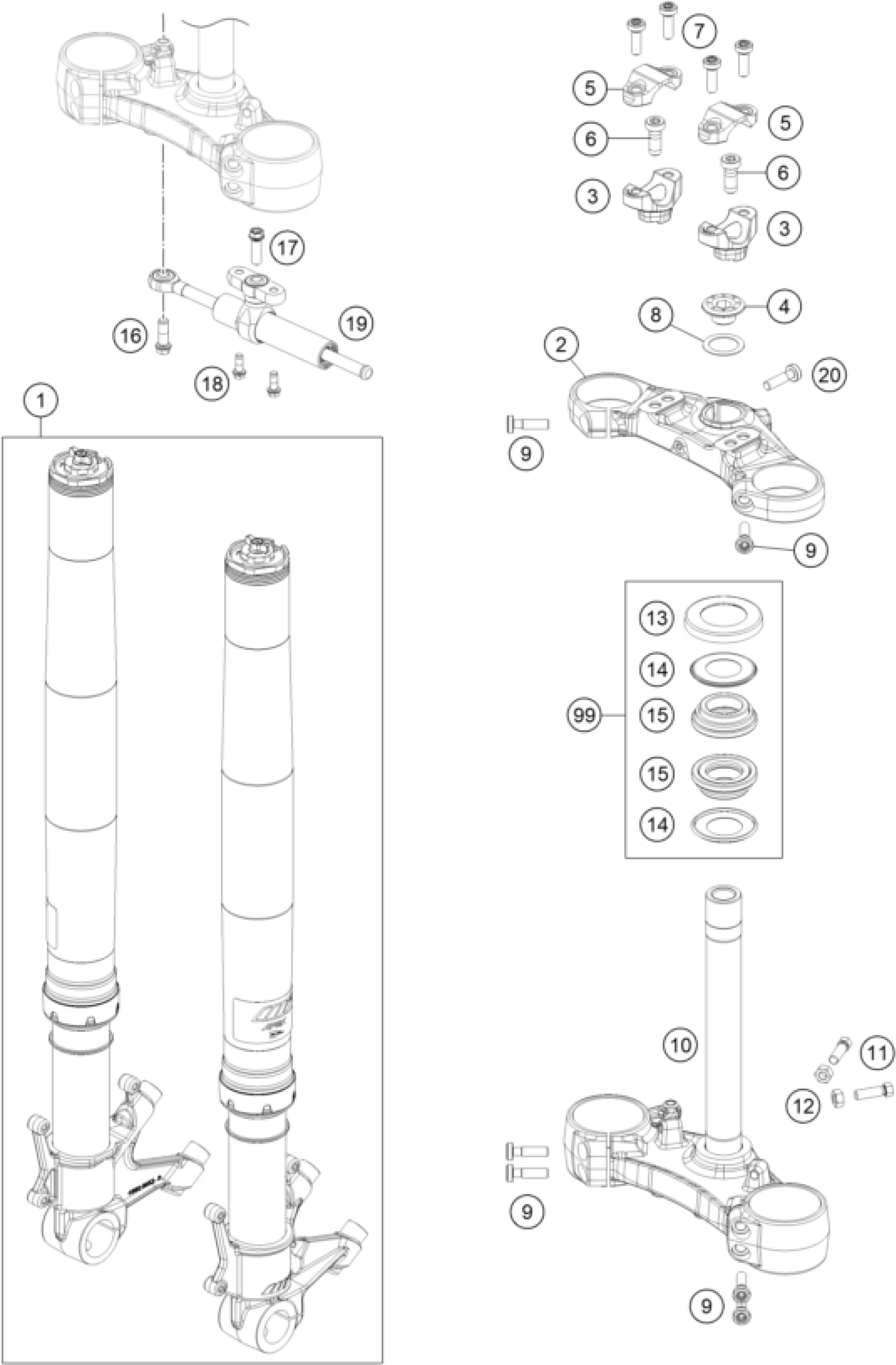

KTM 1290 Super Duke R, black 2020 FRONT FORK, TRIPLE CLAMP Diagram

Fork 1290 Super Duke R 20

14188T2201

$2,701.30

Triple clamp top

61701034032C1

$186.62

Triple clamp bottom cmpl. X=32

61701032032C1

$381.28

Handlebar mount h=32

61701039032C1

$45.99

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

HH collar screw M8x25

0025080256

$2.05

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

AH collar screw M10x25 ISA45

0032100256S

$4.11

Shim ring DIN0988-25X35X1

0988253510

$2.05

Steering head screw M20x1,5 WS

61701036000C1

$22.90

Steering damper Superduke R 20

16181T56E

$304.33

Handlebar clamp

6160103800030S

$34.31

AH collar screw M8x25 ISA45

0035080256

$4.11

AH collar screw M8x30 ISA45

0035080306

$3.08

AH collar screw M8x30 ISA45

0035080306S

$3.08

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

Hexagon nut DIN934 M8

0934080003

$2.05

PROT. RING STEER. HEAD BEARING

69001086100

$5.23

Stearing head gasket

69001084100

$5.23

STEERINGHEAD KPL.17

69001181000

$37.77

Stearing head rep. Kit

69001181010

$91.81
