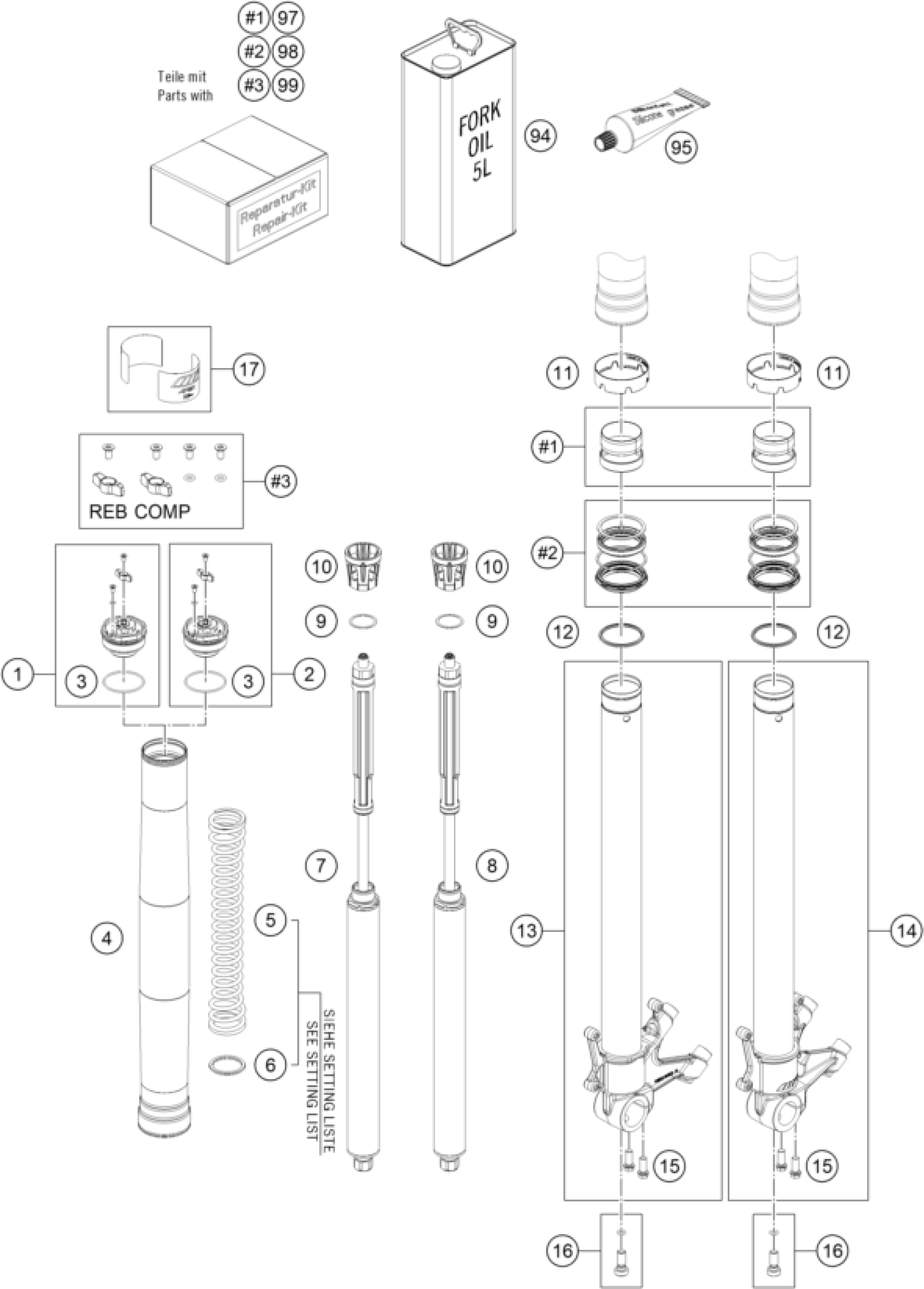

KTM 1290 Super Duke R, black 2020 FRONT FORK DISASSEMBLED Diagram

#

Description

Price

1

screw cap M51x1.5 rebound cpl.

48602129S1

$151.09

2

Screw cap M51x1.5 compression

48602129S2

$151.65

3

O-ring 46x2 NBR70 siliconized

48600048

$3.08

4

Fork outer tube 19,13x515 dt54

48601931

$234.02

6

Washer 35x43x1,5 plastic

48600458

Unavailable

6

Washer 35x43x2,5 plastic

48600456

Unavailable

6

Preload bush 35x43x3,5

48600457

Unavailable

5

Mainspring (44) 8,5-300 set fo

95010106S

Unavailable

5

Mainspring (44) 9,0-300 set fo

95010089S

$152.99

5

Mainspring (44) 9,5-300 set fo

95010107S

Unavailable

9

Shim 27,5x33x0,3

48601702

$10.74

10

Spring retainer 27,08x43x45

48601298

$5.88

11

Fork protection ring 60,1mm

48601986

$2.05

12

Stroke indicator 48mm red

48602007

$4.11

15

HH collar screw M8x20

0025080206

$2.05

16

AH SCREW M10X20 SET

00501020S1

$11.49

17

Sticker set APEX OC 90x40

52000210SET

$46.74

94

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

95

Fuchs grease IPR (250g)

T14034

Unavailable

97

Guide bushing set fork 48mm

R14047

Unavailable

99

Adjuster kit screw cap

RP10021

Unavailable

98

Sealkit 48mm SKF black

RP10012

Unavailable

7

Cartridge 34x340 cpl. Right

48602225S02

$525.56

8

Cartridge 34x340 cpl. Left

48602225S03

$503.40

13

axle clamp right cpl. with inn

48601082S02

$420.65

14

axle clamp left cpl. with inne

48601081S02

$421.96
