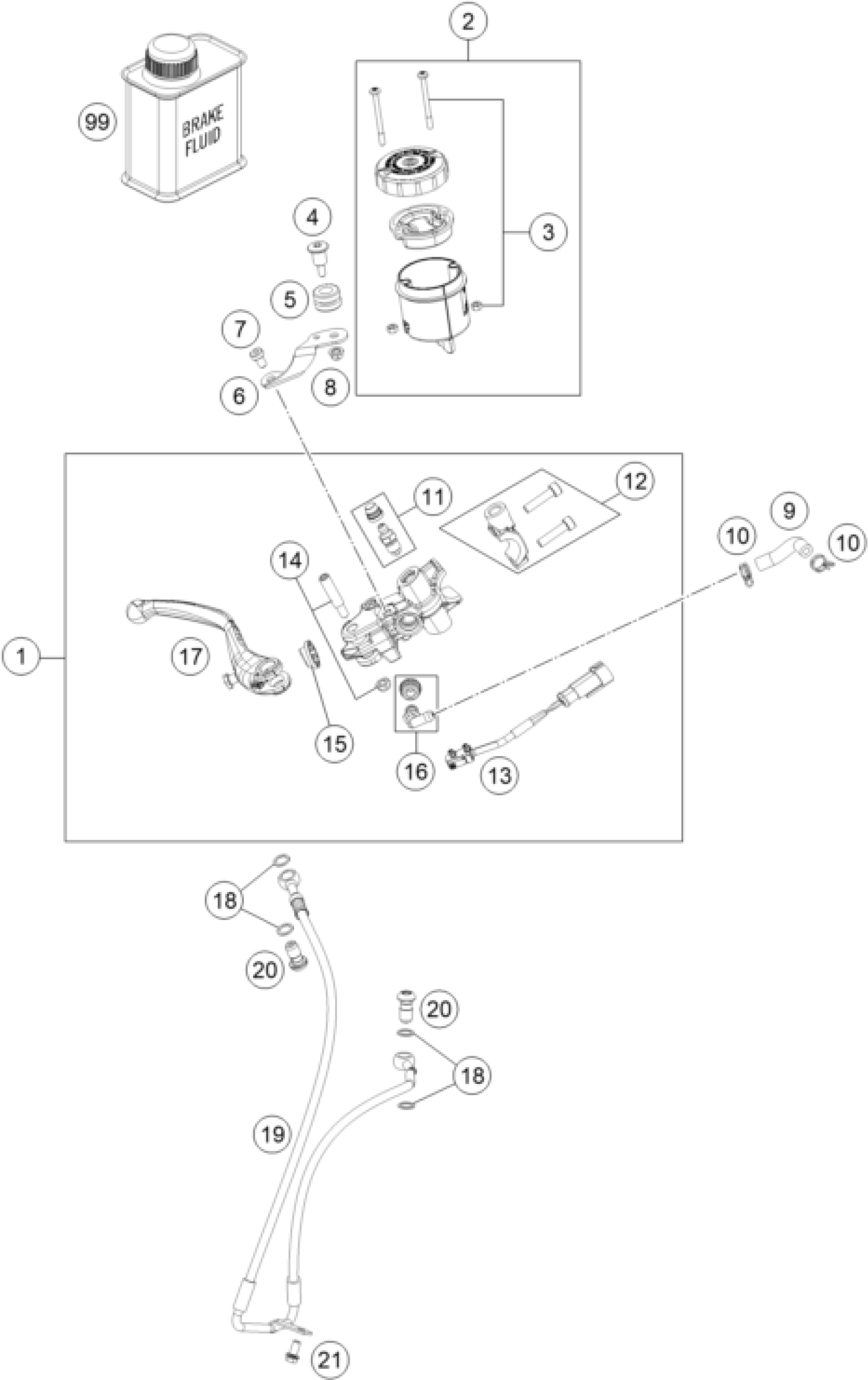

KTM 1290 Super Duke R, black 2020 FRONT BRAKE CONTROL Diagram

#

Description

Price

1

Hand brake cylinder PR16/19

6131300110030

$272.51

2

BRAKE FLUID RESERV. BLACK CPL.

61313029000

$64.51

3

SCREW + NUT F. RESERVOIR

61013009203

$17.10

4

SCREW RET.PANEL-RESERVOIR

61013013050

$9.06

5

RUBBER BUSH 05

61013013000

$3.08

6

SUPPORT BRAKE FLUID RES. FRONT

6101300900130

$14.86

7

SCREW RET.PANEL-BRAKE CYLINDER

61013021000

$1.49

8

NUT FOR RESERVOIR

61013009004

$3.08

9

HOSE FOR RESERVOIR 6X1,5

69013069001

$16.35

10

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

11

BLEEDER SCREW WITH CAP

60013020000

$7.38

12

CLAMP CPL. 16

76013005100

$64.32

13

BRAKE LIGHT SWITCH FRONT

61311050000

$61.14

14

LEVER SCREW CPL. 05

61013006000

$12.43

15

RUBBER CUP 05

61013008000

$7.66

16

ANGLE PIECE

54513155000

$14.58

17

HAND BRAKE LEVER LOOSE BLACK

6101300200030

$126.03

18

sealing ring DIN 7603 10x14x1

0603100141

$2.05

19

Brake line brake cylinder/modu

61742001000

$132.20

20

banjo bolt M10x1x19.5

62113020100

$8.78

99

Brake fluid DOT5.1 0,25L

00062030000

$12.52

21

HH collar screw M6x12 TX30

0025060126

$3.08
