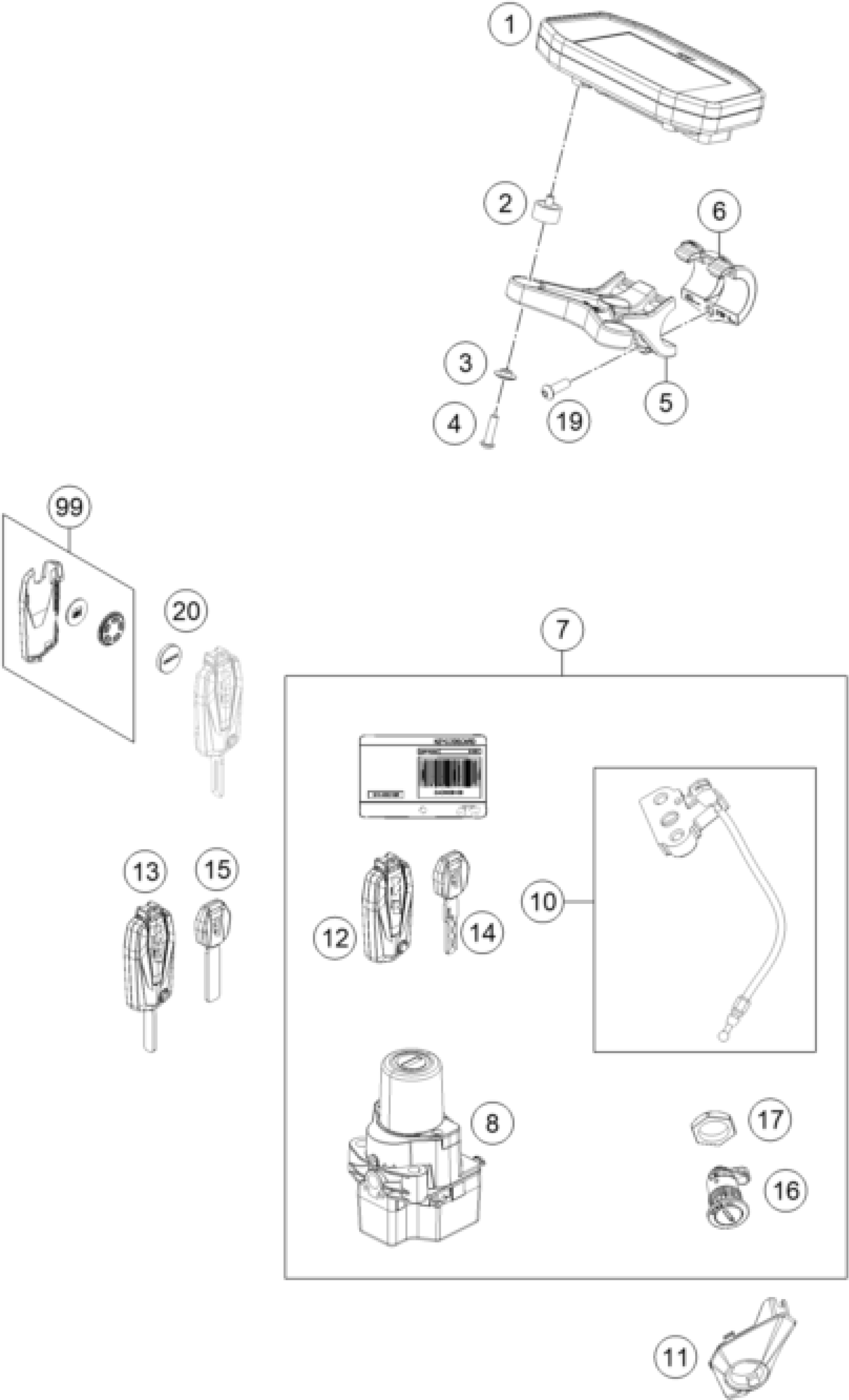

KTM 1290 Super Duke R, black 2019 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

1

Dashboard

61614069000

Unavailable

2

Absorber Speedometer

61614069010

Unavailable

3

Tachometer support bush

61614069020

Unavailable

4

Flat Head Screw ISO7380 M5x8 A

0738050082

Unavailable

5

Instrument holder front part

61601045100

Unavailable

6

Instrument holder rear part

61601044000

Unavailable

7

Locks set with key Race-on 868

61611066144

Unavailable

8

Ignition lock Race-on 868MHz

61611066000

Unavailable

10

SEAT LOCK MECHANISM CPL.

61307050000

Unavailable

11

Support seat lock

61307055000

Unavailable

12

Race on key 868 MHz

60711067000

Unavailable

13

Blank race-on key 868 MHz

60711067010

Unavailable

14

KTM ignition key

60411067100

Unavailable

15

Blank KTM ignition key

60411067010

Unavailable

16

LOCK CYLINDER SEAT LOCK

61307050020

Unavailable

17

NUT SEAT LOCK M22X1,5

69007050050

Unavailable

19

BHCS ISO 7380 M6X18

0738060181

Unavailable

20

BATTERY FOR ICO TRIPMASTER 04

58512085160

Unavailable

99

Cover-Kit for Race-on-Key

60711067050

Unavailable
