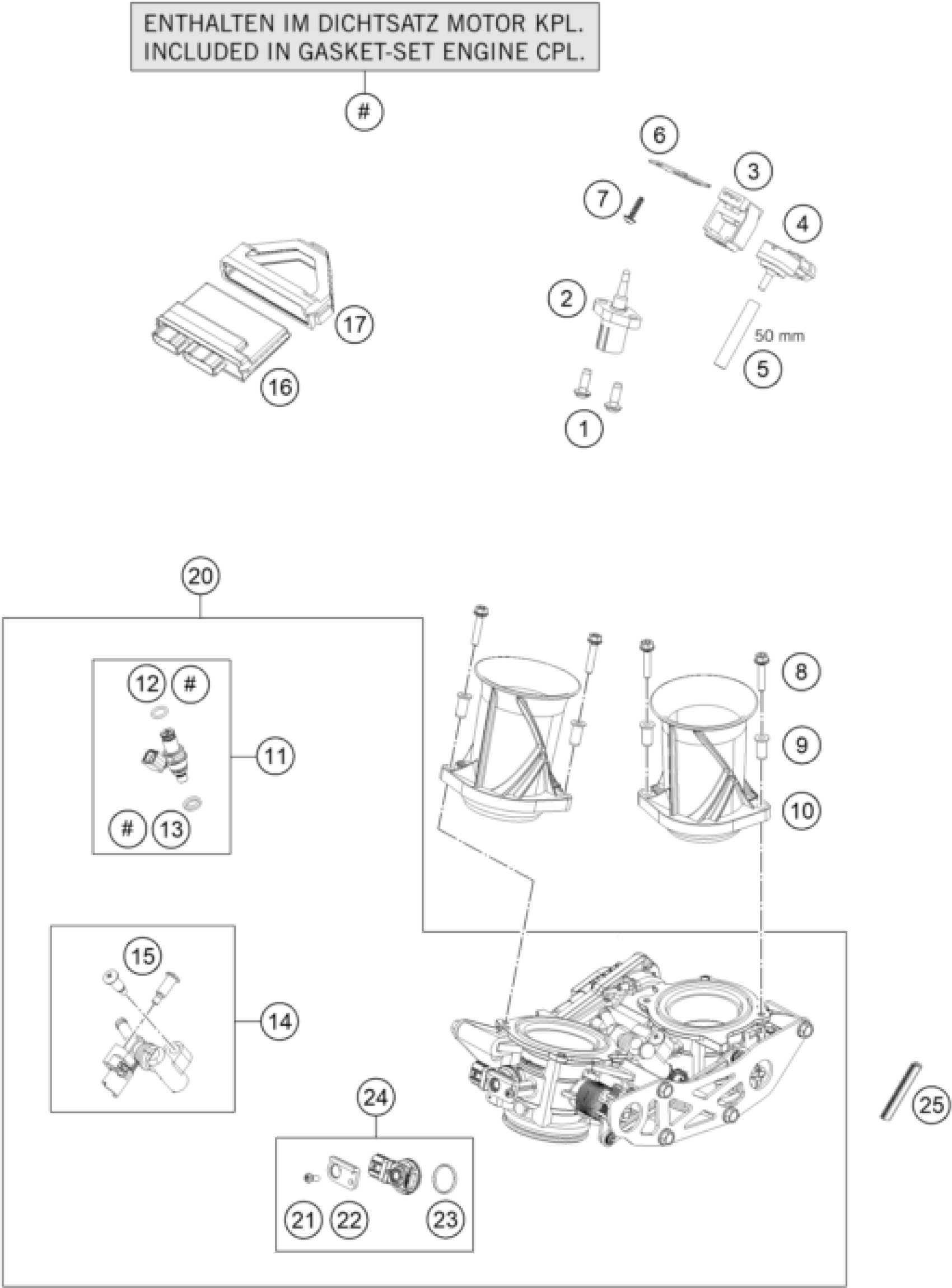

KTM 1290 Super Duke R, black 2018 THROTTLE BODY Diagram

#

Description

Price

1

EJOT PT SCREW K50X16 1451

0081050161

$1.49

2

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

3

RUBBER SUPP. PRESSURE SENS. 06

61041085150

$5.23

4

PRESSURE SENSOR 06

61041085100

$144.36

5

HOSE 3,2X8,5 PER METER

60031098001

Unavailable

6

SUPPORT VACUUM SENSOR

61311085050

$5.98

7

EJOT PT screw K50x14

0081050141

$1.49

8

HH collar screw M5x25 TX30

0025050256S

$1.49

9

Bushing intake funnel

60306042010

$4.11

10

Velocity stack l=80

61641040100

$8.41

11

FUEL INJECTOR CPL.

60341023044

$187.46

12

O-RING

60341023020

$7.94

13

SEAL RING

75041023010

$11.49

14

FUEL PIPE CPL.

60341013044

$84.42

15

SCREW SHOULDER

75041013060

$6.72

16

Control unit EFI

61341031300

$625.23

17

ECU RUBBER BRACKET

60341031050

$17.76

20

THROTTLE BODY

61341001000

$1,306.47

21

SCREW WASHER

75041085030

$3.08

22

PLATE, STAY

75041085020

$5.23

23

O-RING

75041085010

$6.07

24

MAP SENSOR CPL. 07

75041085044

$179.98

25

EDGE PROTECTOR L=45MM 05

61011055045

$3.08
