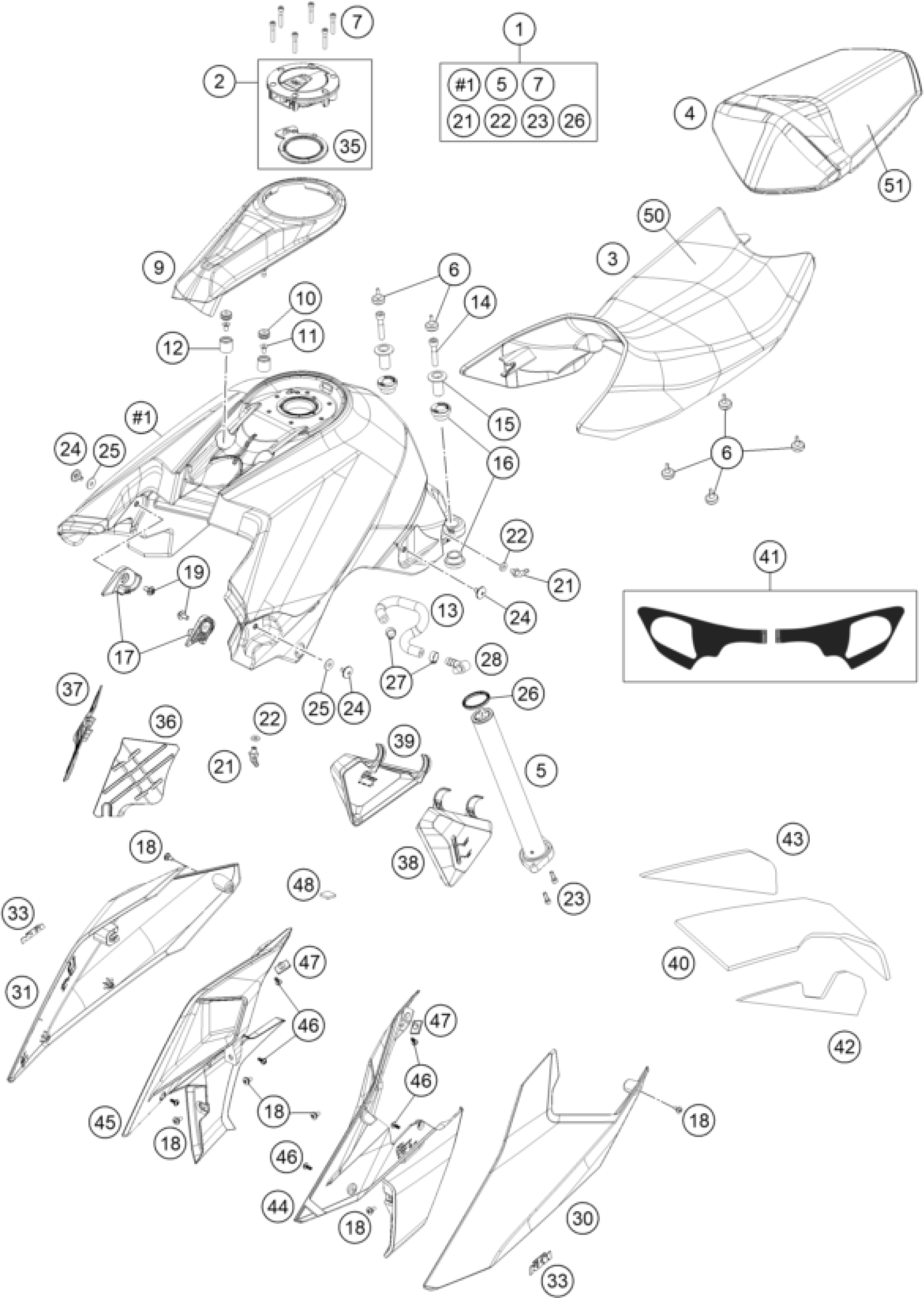

KTM 1290 Super Duke R, black 2018 TANK, SEAT Diagram

#

Description

Price

1

Fuel tank cpl. SD pitch black

61307013044CBA

$1,159.20

2

Fuel tank cap keyless

61607008000

$322.38

3

Seat rider complete

61607040000

$152.77

4

Seat passenger complete

61607047000

$185.40

5

GAS LEVEL SENSOR

61307080000

$134.35

6

Distance rupper airbox 03

60006001021

$2.05

7

AH SCREW DIN0912-M 5X25

0912050253

$1.49

9

Tank fairing

61607058000

$26.92

10

RUBBER SLEEVE 5X7.6X13MM

76008052050

$2.05

11

FLAT HEAD SCREW DIN7991-M 6X12

0991060126

$2.05

12

BUSHING 13X20X18,5MM

76008052000

$7.94

13

FUEL HOSE PUMP

61307017050

$23.74

14

AH collar screw DIN0912 M8x40

0912080403

$2.05

15

collar bushing, bearing, outsi

61007060000

$9.90

16

collar bushing, front tank hol

61007065000

$7.85

17

TANK MOUNTING FRONT L/S & R/S

61307021044

$4.56

18

special screw M5x12

69008021160

$4.11

19

HH collar screw M6x13 TX30

0024060136

$3.08

21

CONNECT.PIECE F.OVERFLOW M7 03

60007024000

$2.05

22

GASKET FOR CONNECTING PIECE 03

60007024050

$2.05

23

AH collar screw DIN 912 M5x16

0912050163

$1.49

24

SCREW FOR SEAT M6X11,5/8

58407011100

$4.11

25

Washer DIN9021-A 6.4

0021060003

$2.05

26

Gasket fuel lever sensor

60307080090

$50.67

27

Variable one-ear clamp 15.7mm

00050157706

$5.23

28

PLUG CPC

7720701000030

$37.02

30

Fuel tank spoiler dark galvano

61608050000KCA

$318.27

31

Fuel tank spoiler right dark g

61608051000KCA

$318.27

35

GASKET TANK CAP

60307008190

$7.85

36

FRAME COVER L/S

61303085000

$9.44

37

FRAME COVER R/S

61303086000

$12.71

38

KNEE PAD L/S

61303091000

$21.87

39

KNEE PAD R/S

61303092000

$21.87

40

INSULATION MAT MIDDLE

61306095010

$20.75

41

Tank protection sticker SD 17

61307013010

$13.83

42

INSULATION MAT L/S

61306095020

$17.01

43

INSULATION MAT R/S

61306095030

$17.48

44

interior finishing left

61608027000

$42.25

45

interior finishing right

61608026000

$42.25

46

EJOT PT screw K50x12

0081050121

$2.05

47

Isolation pad

77307040041

$2.05

48

METAMOLL F. TAIL LIGHT COVER

61408015030

$1.49

50

Seat cover

61607040050

$37.12

51

Seat cover

61607047050

$37.77

33

Decal 3D ''KTM'' 17

61608098000

$22.43
