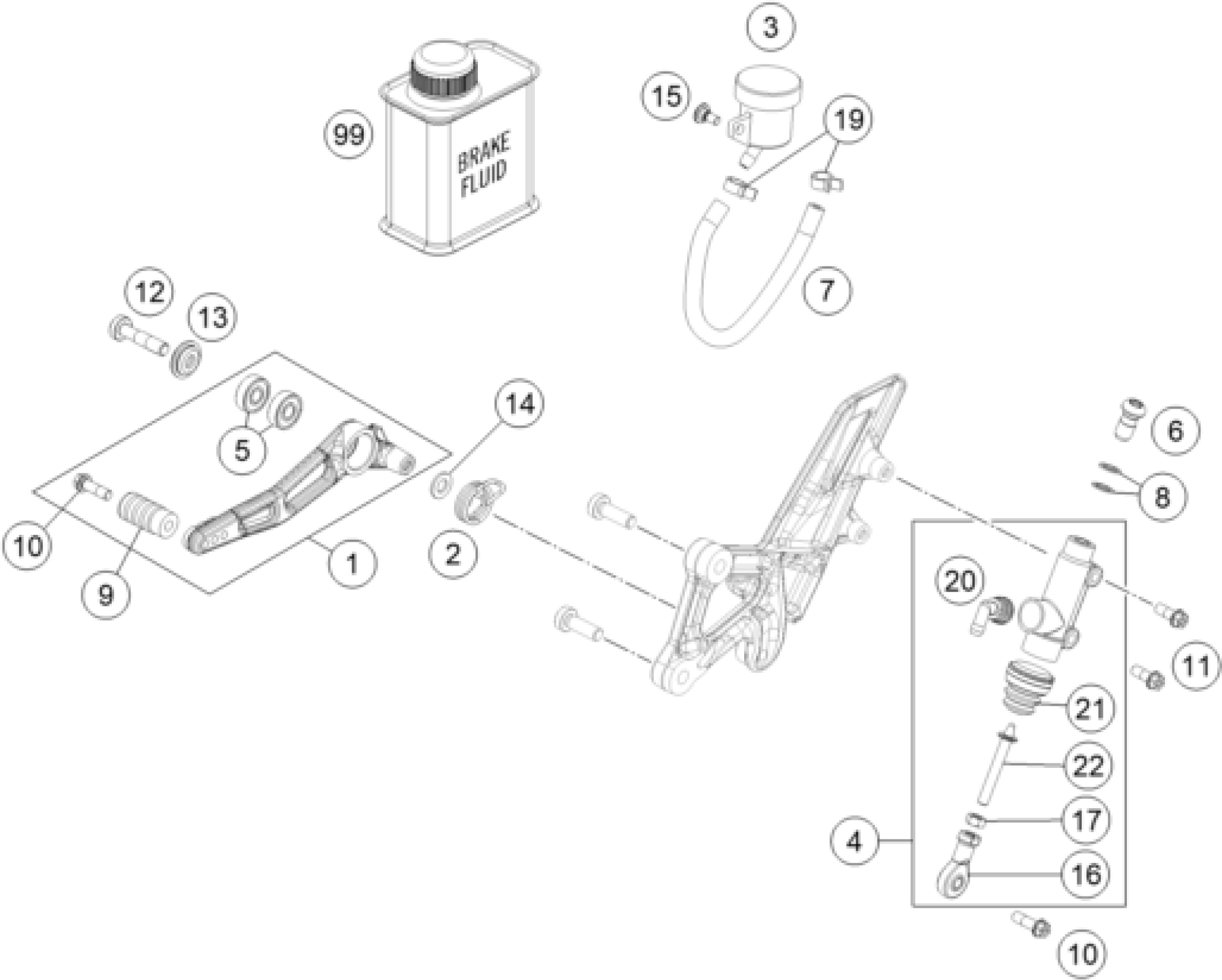

KTM 1290 Super Duke R, black 2018 REAR BRAKE CONTROL Diagram

#

Description

Price

1

FOOT BRAKE LEVER CPL.

6131305004433S

$109.57

2

SPRING

61313052000

$9.15

3

reservoir, rear cpl.

61013069000

$16.07

4

REAR BRAKE CONTROL

6031306000030

$229.91

5

Grooved ball bearing 608 2RS C

0625006087

$21.40

6

banjo bolt M10x1x19.5

62113020100

$8.78

7

HOSE FOR RESERVOIR 6X1,5

69013069001

$16.35

8

sealing ring DIN 7603 10x14x1

0603100141

$2.05

9

Brake lover pedal Duke 94

58303060051

$15.04

10

HH collar screw M6x20 TX30

0025060206S

$2.05

11

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

12

AH collar screw M8x30 ISA45

0035080306S

$3.08

13

SPECIAL WASHER D=23X7,2MM

61334041000

$10.18

14

washer DIN 125 A -8.4

0125080003

$1.49

15

Screw for expansion tank

69013099050

$4.11

16

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

$37.20

17

Hex. nut DIN 934 M6

0934060003

$1.49

19

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

20

ANGLE PIECE

54513155000

$14.58

21

RUBBER SLEEVE

54513151000

$17.48

22

PUSH ROD CPL.

60313056044

$69.93

99

Brake fluid DOT5.1 0,25L

00062030000

$12.52
