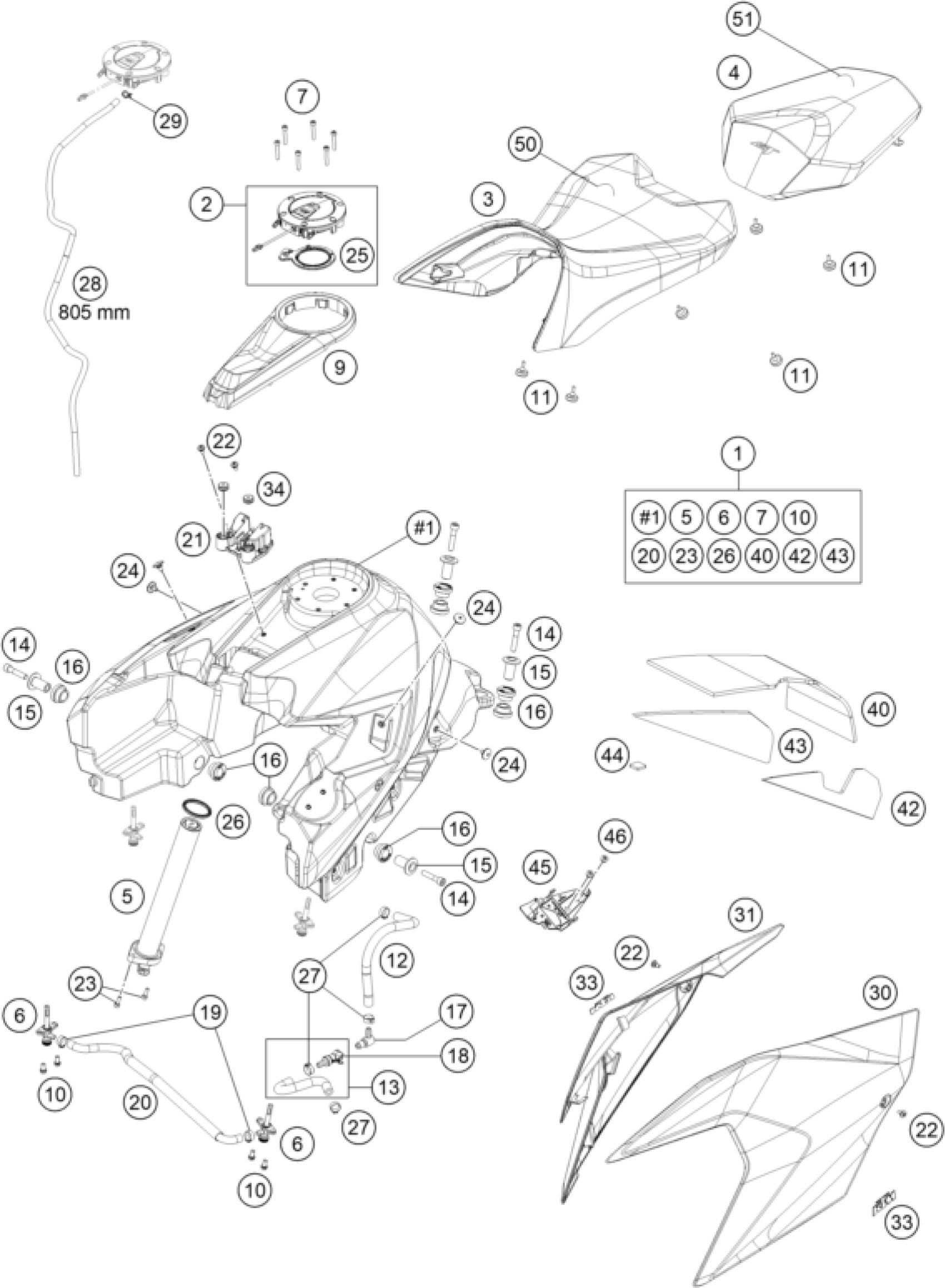

KTM 1290 SUPER DUKE GT, orange 2023 TANK, SEAT Diagram

#

Description
Price

1

fuel tank SD-GT orange US

61407013444BKA

$1,748.25

2

Fuel tank cap, RaceOn

61507008100

$324.25

3

Driver seat complete

61507040000

$193.54

4

Passenger seat

61507047000

$173.90

5

Fuel lever sensor

61407080200

$142.11

6

Fuel cock cmpl.

58507003200

$26.55

7

AH SCREW DIN0912-M 5X25

0912050253

$1.49

9

Tank cover

61507058000

$25.70

10

HH collar screw M6x12 TX30

0025060126

$3.08

11

Distance rupper airbox 03

60006001021

$2.05

12

FUEL HOSE DKK

61407016050

$27.76

13

FUEL HOSE CPL.

62607016044

$54.13

14

AH collar screw DIN0912 M8x40

0912080403

$2.05

15

collar bushing, bearing, outsi

61007060000

$9.90

16

collar bushing, front tank hol

61007065000

$7.85

17

PLUG CPC

7720701000030

$37.02

18

Clutch CPC PLCD17005, black

5850701050030

$55.90

19

CLAMP YDNAC 10128 12MM

58031005000

$3.08

20

TANK COMPENSATION TUBE

61407018000

$92.46

21

RRS antenna support

61507058050

$8.03

22

special screw M5x12

69008021160

$4.11

23

AH collar screw DIN 912 M5x16

0912050163

$1.49

24

SCREW FOR SEAT M6X11,5/8

58407011100

$4.11

25

GASKET TANK CAP

60307008190

$7.85

26

Gasket fuel lever sensor

60307080090

$50.67

27

Variable one-ear clamp 15.7mm

00050157706

$5.23

28

HOSE 5,4X9,4 NBR, METER

60007126001

$7.10

29

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

30

Radiator shroud left

61508050000EBA

$278.34

31

Radiator shroud right

61508051000EBA

$278.34

33

Decal 3D ''KTM'' 17

61608098000

$22.43

34

RUBBER SLEEVE 5X7.6X13MM

76008052050

$2.05

40

INSULATION MAT MIDDLE

61306095010

$20.75

42

INSULATION MAT L/S

61306095020

$17.01

43

INSULATION MAT R/S

61306095030

$17.48

44

METAMOLL F. TAIL LIGHT COVER

61408015030

$1.49

45

Control unit bracket

A61214086010

$8.13

46

special screw M5x12

69008021160

$4.11

50

SEAT COVER DRIVER

61407040050

$49.17

51

SEAT COVER SOZIUS

61407047050

$48.52
