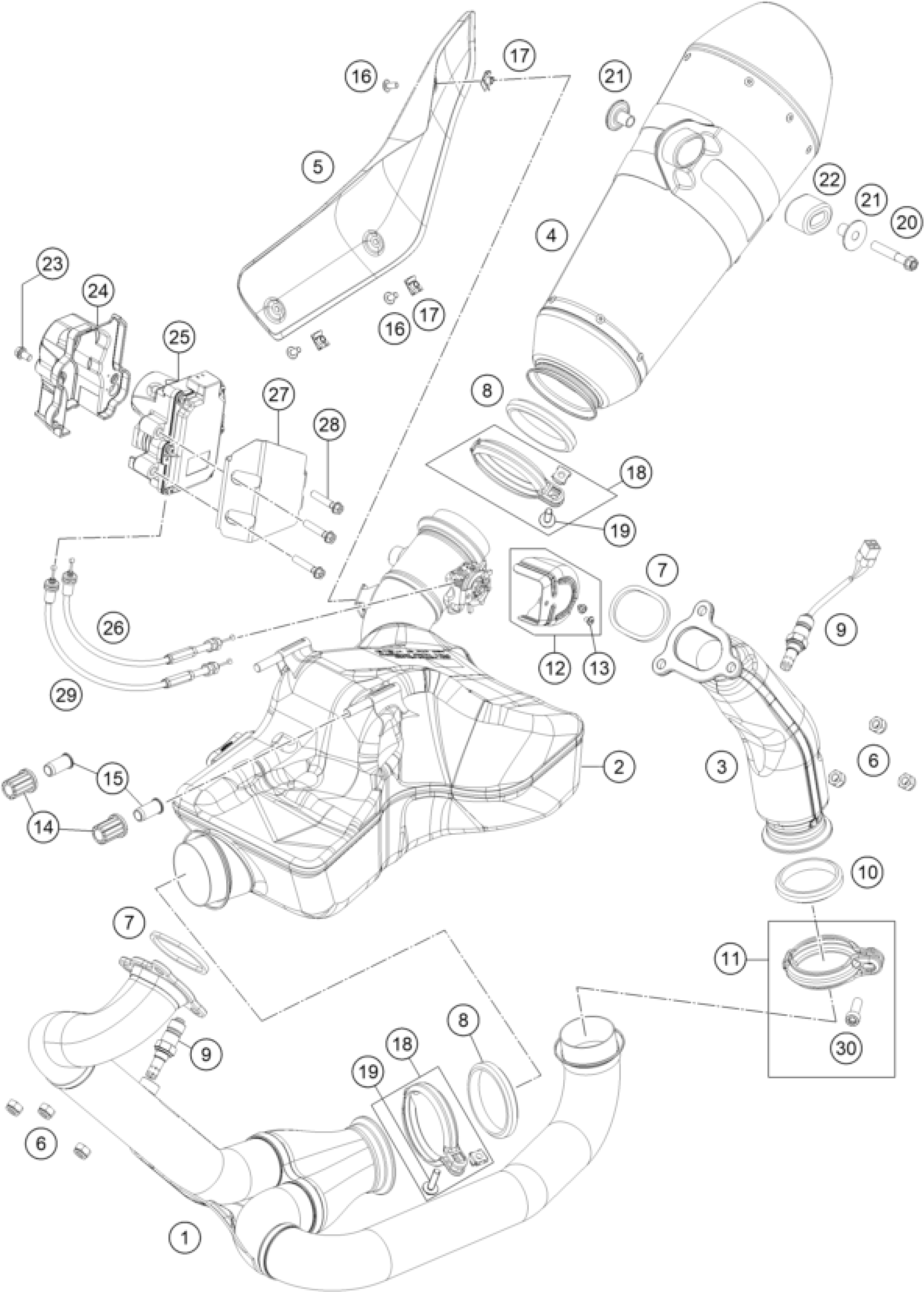

KTM 1290 SUPER DUKE GT, orange 2023 EXHAUST SYSTEM Diagram

#

Description
Price

1

Manifold front

A61205007000

Unavailable

2

Presilencer

A61205050000

Unavailable

3

Header with integral insulatio

60405008200

Unavailable

4

SILENCER CPL. USA

61305082000

Unavailable

5

HEAT PROTECTOR BLACK

6140501100033

Unavailable

6

self-locking nut M8 Cu

51010086100

Unavailable

7

EXHAUST PIPE FLANGE GASKET

69005005100

Unavailable

8

Manifold gasket 60mm

61305105005

Unavailable

9

LAMBDA SENSOR

75041090200

Unavailable

10

MANIFOLD GASKET

69005005005

Unavailable

11

Exhaust clamp tube 50 mm

63605058100

Unavailable

12

Exhaust flap cover

61405095150

Unavailable

13

EJOT SPIRAL SCREW SF M4X6-K

60402052010

Unavailable

14

RUBBER SILENCER SUPPORT 05

61005013000

Unavailable

15

Sleeve silencer support

61005014000

Unavailable

16

SCREW TORX M5X10

78105081010

Unavailable

17

clip nut M5

69008021080

Unavailable

18

Clamp, tube, 60 mm

61305058100

Unavailable

19

HH COLLAR SCREW M6X25 TX30

0024060256

Unavailable

20

HH COLLAR SCREW M8X45 ISA40

0025080456S

Unavailable

21

Bushing 8.5X11X29

61305069000

Unavailable

22

DAMPING RUBBER

61305068000

Unavailable

23

HH collar screw M6x10 TX30

0025060106

Unavailable

24

COVER EXHAUST FLAP CONTROL MOT

61441070050

Unavailable

25

Exhaust flap controll motor

61441070100

Unavailable

26

Throttle cable AG, flap 1

61441171000

Unavailable

27

HEAT PROTECTION CAP SERVOMOTOR

61441070060

Unavailable

28

HH collar screw M6x30 TX30

0025060306

Unavailable

29

Throttle cable AG, flap 2

61441271000

Unavailable

30

Cap head bolt ISO 14580 M8x25

0145800802500

Unavailable
