Description

Price

1

STICK COIL

76039006000

$97.14

2

SPARK PLUG

60439094000

$29.91

3

Stick coil

63539006100

$110.60

4

Spark plug M12x1.25

61739093000

$25.80

5

HH collar screw M6x16 TX30

0025060166

$3.08

8

Rotor complete

61539005000

$565.11

9

generator line bracket

60039040020

$3.08

10

SK-BUNDSCHRAUBE M6X25 ISA30

0025060256S

$1.49

11

GASKET GENERATORCOVER

61230040100

$27.95

12

DOWEL 9,8 X 7 X 10

49030090000

$2.05

13

STATOR

60339004000

$225.61

14

generator cover cpl.

6193010204441

$188.96

15

o-ring 24.00x2.50 Viton

07700240251

$3.08

16

threaded plug M24x1.5 PA 6.6

6003009400030

$4.11

18

special screw M12x1.5 WS15

60339003000

$19.63

20

HH collar screw M6x30 TX30

0025060306

$3.08

21

HH collar screw M6x35 TX30

0025060356

$3.08

22

Plug cover

61411095000

$22.52

23

pulse generator KOKUSAN 4K3-A/

59039034000

$89.28

24

SPECIAL SCREW M5X16

60339035000

$4.11

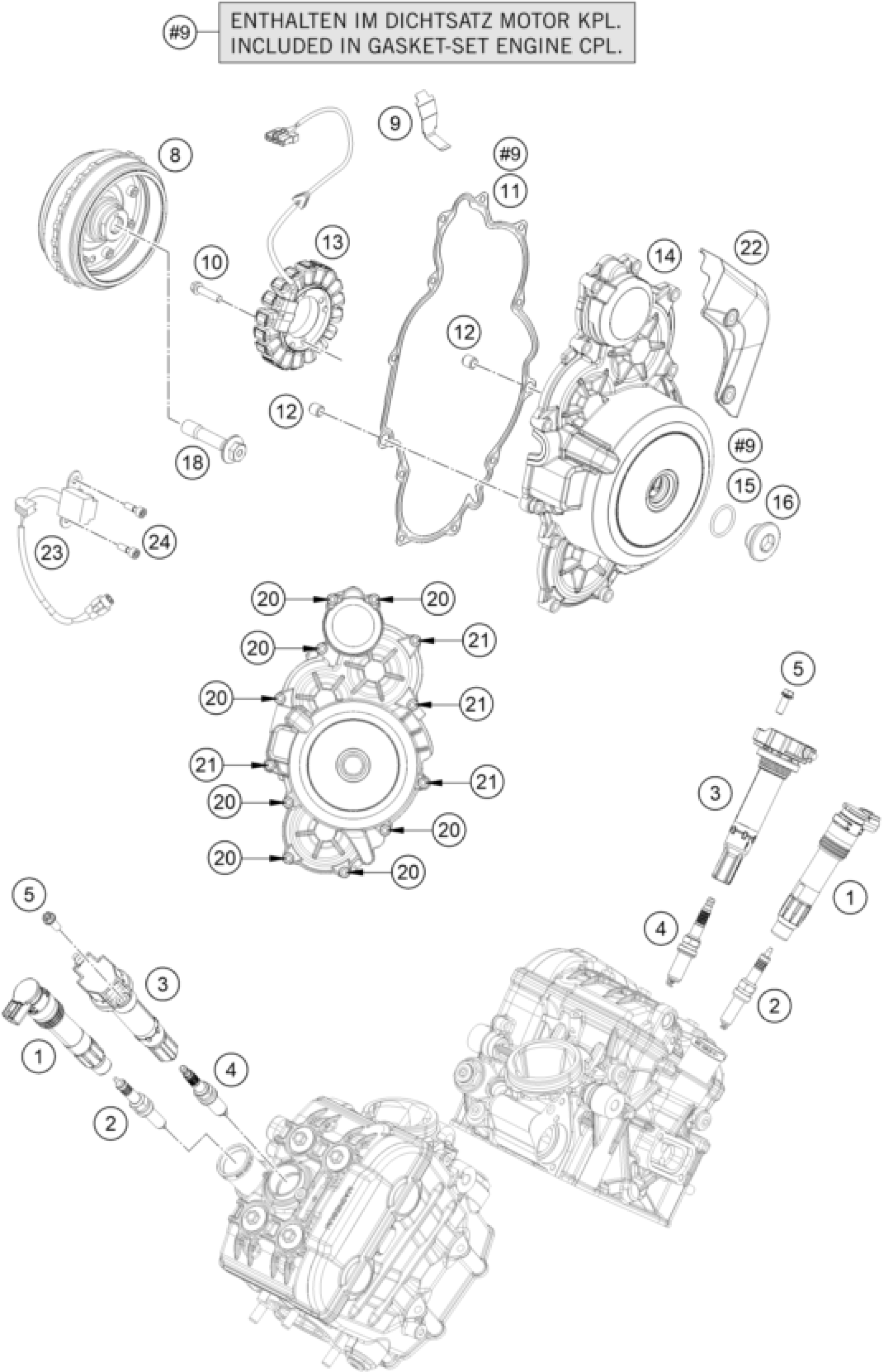

KTM 1290 SUPER DUKE GT, orange 2023 IGNITION SYSTEM Diagram

STICK COIL

SPARK PLUG

Stick coil

Spark plug M12x1.25

HH collar screw M6x16 TX30

Rotor complete

generator line bracket

SK-BUNDSCHRAUBE M6X25 ISA30

GASKET GENERATORCOVER

DOWEL 9,8 X 7 X 10

STATOR

generator cover cpl.

o-ring 24.00x2.50 Viton

threaded plug M24x1.5 PA 6.6

special screw M12x1.5 WS15

HH collar screw M6x30 TX30

HH collar screw M6x35 TX30

Plug cover

pulse generator KOKUSAN 4K3-A/

SPECIAL SCREW M5X16
