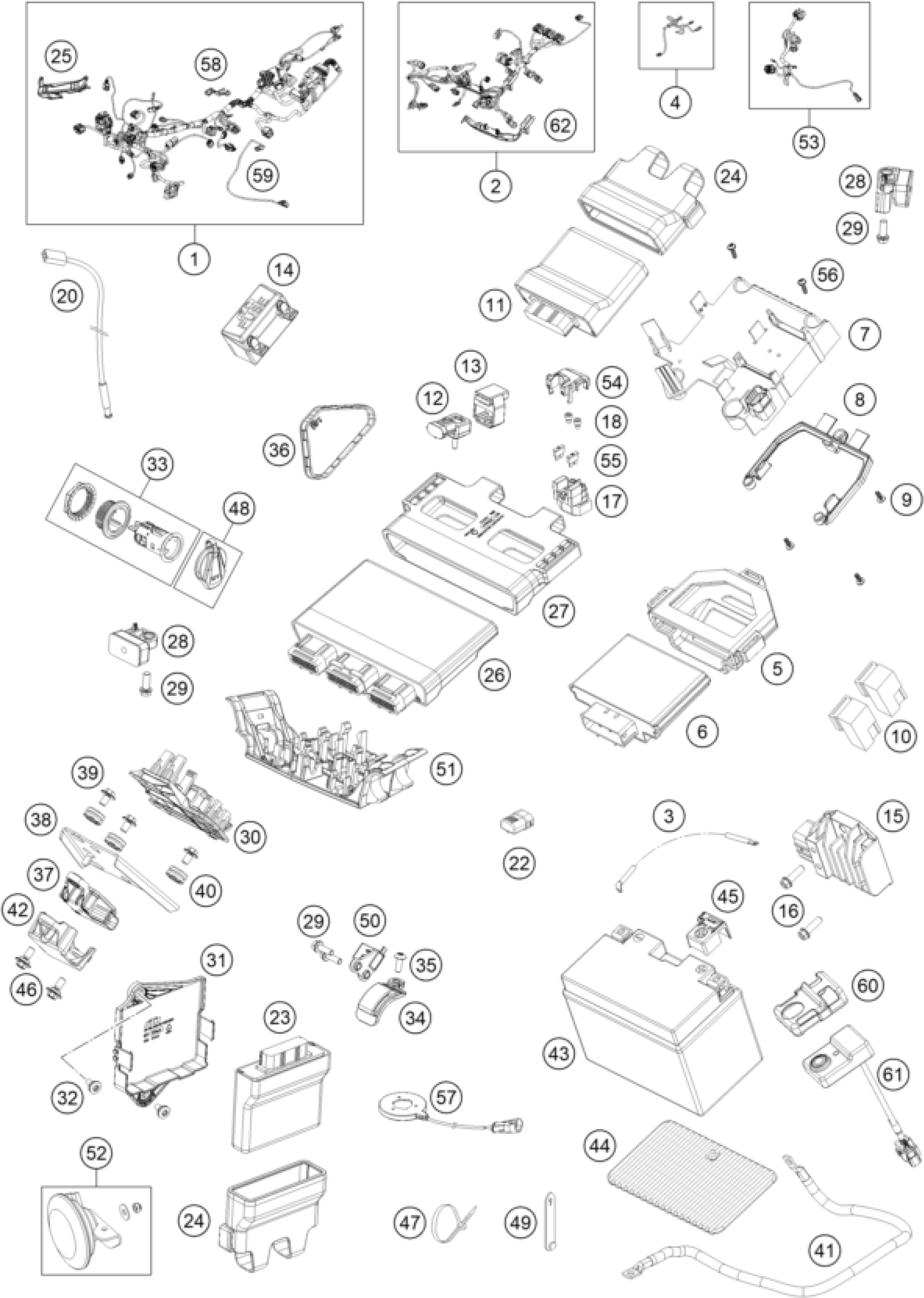

KTM 1290 SUPER DUKE GT, orange 2022 WIRING HARNESS Diagram

#

Description
Price

1

Main wiring harness cmpl.

A61211075033

Unavailable

2

Engine wiring harness cpl.

A61211085033

Unavailable

3

BATTERY CABLE

61311059050

Unavailable

4

REAR WIRING HARNESS

61311076100

Unavailable

5

Rubber band

60711033050

Unavailable

6

Control unit MCU 3.0

60711033000

Unavailable

7

MCU bracket

61508018020

Unavailable

8

MCU bracket

61508018010

Unavailable

9

EJOT PT screw K50x14

0081050141

Unavailable

10

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

11

ELECTRONIC CONTROL UNIT SAFE

60416031000

Unavailable

12

Ambient air pressure sensor

A61241085000

Unavailable

13

Ambient air pressure sensor ru

A61241085050

Unavailable

14

RUBBER CASING FUSE BOX

61311087050

Unavailable

15

VOLTAGE REGULATOR

60311034000

Unavailable

16

HH collar screw M6x20 TX30

0025060206

Unavailable

17

Starter relay

76211058000

Unavailable

18

Oval head screw ISK ISO7380 M6

0738060101

Unavailable

20

Temperatur sensor

61111018100

Unavailable

23

CONTROL UNIT CURVE LIGHT

60414039000

Unavailable

24

RUBBER EDS-CONTROL UNIT

60316029000

Unavailable

25

CABLE CHANNEL R/S

60311047000

Unavailable

26

Engine control unit "KTKZ"

61941031000

Unavailable

27

Rubber mount ECU

61741031050

Unavailable

28

ACCLERATION SENSOR

60416063000

Unavailable

29

HH collar screw M6x16 TX30

0025060166

Unavailable

30

CONNECTOR BOARD FRONT

61411083000

Unavailable

31

LCU HOLDER

61414039050

Unavailable

32

special screw M5x17

69008021060

Unavailable

33

Power socket 12V

60711042000

Unavailable

34

MAGNET HOLDER

60416061000

Unavailable

35

Oval head screw M5x14 TX25

58605083014

Unavailable

36

HEATINGSWITCH COVER

61408019040

Unavailable

37

Angle sensor

61542090000

Unavailable

38

SUPPORT SLOPING POS. SENSOR

61342090040

Unavailable

39

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

40

DAMP. COMPONENT ABS MODUL

62142041000

Unavailable

41

Ground wire battery-frame 16mm

A61211098000

Unavailable

42

COVER SENSOR BOX

61342090050

Unavailable

43

BATTERY 12V/11AH 03

60011053000

Unavailable

44

RUBBER PLATE FOR BATTERY

61311053050

Unavailable

45

COVER POSITIVE POLE

62111059060

Unavailable

46

SPECIAL SCREW M6X15X3

83008000015

Unavailable

47

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

47

Cable tie 200/4.6mm black

44011076200

Unavailable

47

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

48

Lid 12V-socket

60311042050

Unavailable

49

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

50

WHEEL TRAVEL SENSOR

60416062000

Unavailable

51

CONNECTOR BOARD REAR

61411049000

Unavailable

52

Direct current horn complete

61611060033

Unavailable

53

Front wiring harness

A61211078000

Unavailable

54

Cover cap starter relay

64111058010

Unavailable

55

Plug-in fuse, big 30A

58011109130

Unavailable

56

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

57

Antenna keyless

69011168000

Unavailable

58

main wiring harness cable chan

A61211047000

Unavailable

59

Shock absorber wiring harness,

61511015000

Unavailable

60

Rubber support, CCU

79114086050

Unavailable

61

Connectivity unit

79114086100

Unavailable

62

CABLE CHANNEL L/S

60311046000

Unavailable

22

CAP FOR CONNECTOR 000700000HJ

000700000HJ01

Unavailable
