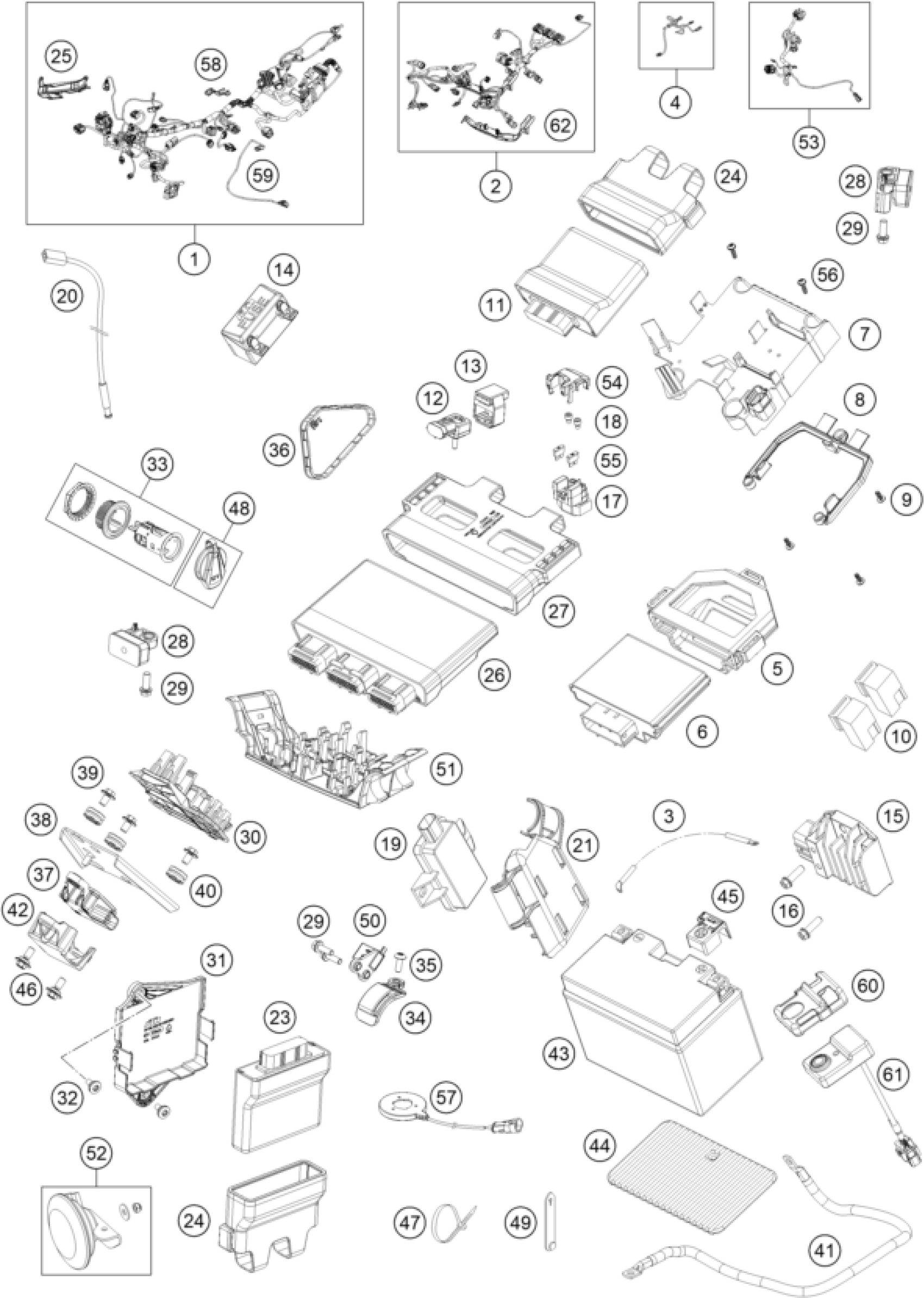

KTM 1290 SUPER DUKE GT, orange 2022 WIRING HARNESS Diagram

#

Description
Price

1

Main wiring harness cmpl.

A61211075033

$784.46

2

Engine wiring harness cpl.

A61211085033

$383.06

3

BATTERY CABLE

61311059050

$28.88

4

REAR WIRING HARNESS

61311076100

$36.92

5

Rubber band

60711033050

$11.12

6

Control unit MCU 3.0

60711033000

$646.64

7

MCU bracket

61508018020

$15.89

8

MCU bracket

61508018010

$6.54

9

EJOT PT screw K50x14

0081050141

$1.49

10

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

11

ELECTRONIC CONTROL UNIT SAFE

60416031000

$522.47

12

Ambient air pressure sensor

A61241085000

$221.03

13

Ambient air pressure sensor ru

A61241085050

$6.63

14

RUBBER CASING FUSE BOX

61311087050

$16.35

15

VOLTAGE REGULATOR

60311034000

$177.55

16

HH collar screw M6x20 TX30

0025060206

$3.08

17

Starter relay

76211058000

$79.19

18

Oval head screw ISK ISO7380 M6

0738060101

$1.49

19

RECEIVER AIR PRESSURE SENSOR

60312032000

$169.69

20

Temperatur sensor

61111018100

$31.59

21

TPMS holder

61412032040

$8.13

23

CONTROL UNIT CURVE LIGHT

60414039000

$393.07

24

RUBBER EDS-CONTROL UNIT

60316029000

$33.18

25

CABLE CHANNEL R/S

60311047000

$8.13

26

Engine control unit "KTKZ"

61941031000

$440.94

27

Rubber mount ECU

61741031050

$18.60

28

ACCLERATION SENSOR

60416063000

$69.84

29

HH collar screw M6x16 TX30

0025060166

$3.08

30

CONNECTOR BOARD FRONT

61411083000

$10.65

31

LCU HOLDER

61414039050

$9.90

32

special screw M5x17

69008021060

$3.08

33

Power socket 12V

60711042000

$55.81

34

MAGNET HOLDER

60416061000

$52.73

35

Oval head screw M5x14 TX25

58605083014

$3.08

36

HEATINGSWITCH COVER

61408019040

$7.94

37

Angle sensor

61542090000

$391.01

38

SUPPORT SLOPING POS. SENSOR

61342090040

$39.73

39

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

40

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

41

Ground wire battery-frame 16mm

A61211098000

$28.70

42

COVER SENSOR BOX

61342090050

$12.15

43

BATTERY 12V/11AH 03

60011053000

$366.89

44

RUBBER PLATE FOR BATTERY

61311053050

$10.84

45

COVER POSITIVE POLE

62111059060

$4.11

46

SPECIAL SCREW M6X15X3

83008000015

$3.08

47

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

47

Cable tie 200/4.6mm black

44011076200

Unavailable

47

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

48

Lid 12V-socket

60311042050

$7.38

49

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

50

WHEEL TRAVEL SENSOR

60416062000

$126.96

51

CONNECTOR BOARD REAR

61411049000

$10.93

52

Direct current horn complete

61611060033

$40.57

53

Front wiring harness

A61211078000

$163.62

54

Cover cap starter relay

64111058010

$3.08

55

Plug-in fuse, big 30A

58011109130

$2.05

56

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

57

Antenna keyless

69011168000

$41.13

58

main wiring harness cable chan

A61211047000

$10.18

59

Shock absorber wiring harness,

61511015000

$24.02

60

Rubber support, CCU

79114086050

$7.47

61

Connectivity unit

79114086100

$491.72

62

CABLE CHANNEL L/S

60311046000

$7.66
