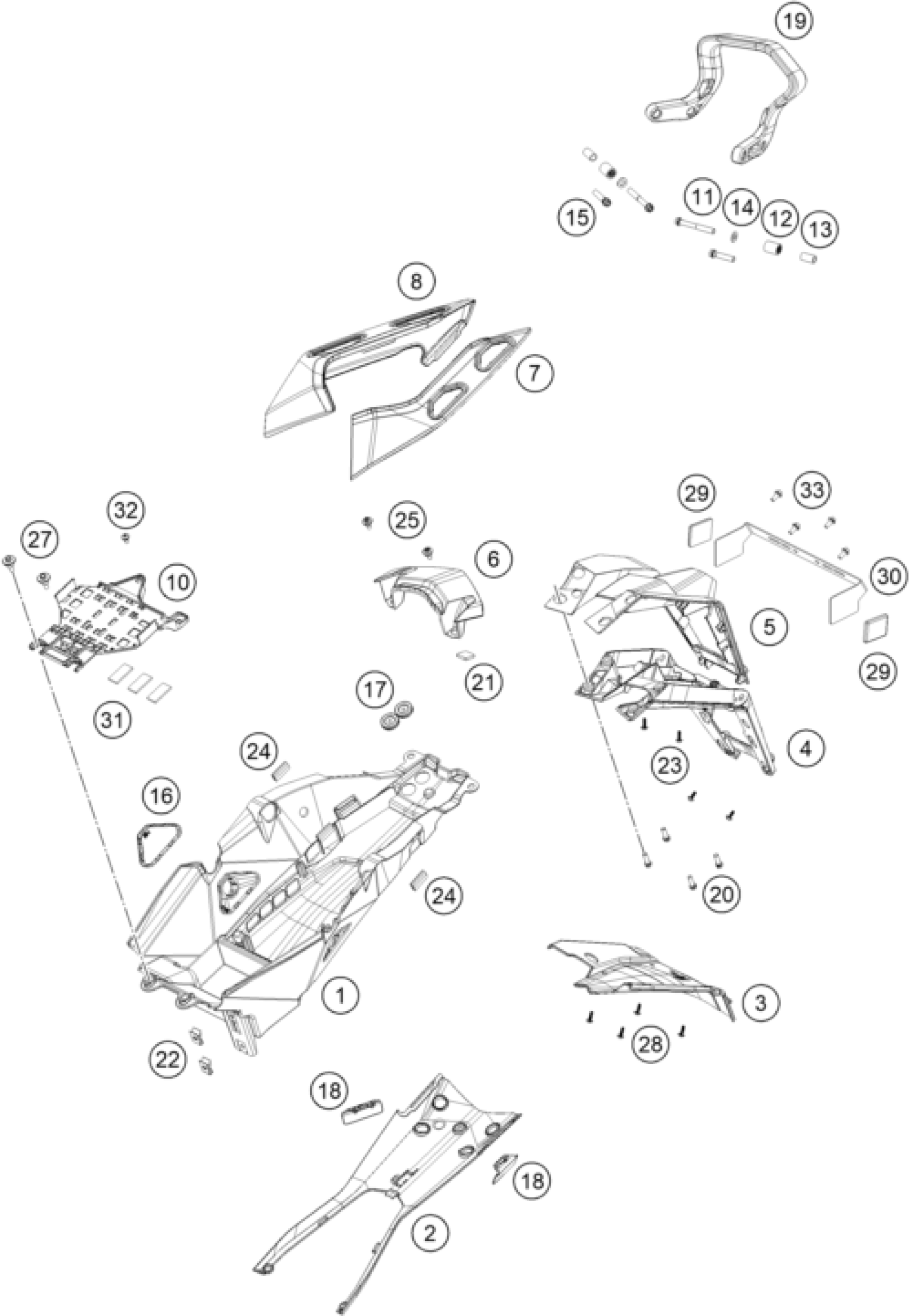

KTM 1290 SUPER DUKE GT, orange 2022 TRIM REAR Diagram

#

Description
Price

1

Tail end lower part

61408019100

$82.46

2

Bottom rear fairing Pitch blac

61408019050CB

$154.45

3

SPLASH PROTECTOR

61408023010

$42.63

4

NPC LOWER PART

61408023000

$67.40

5

NPC UPPER PART

61408022000

$38.14

6

TAIL LIGHT COVER

61408015020

$11.77

7

Rear fairing left

61408042000BKA

$185.50

8

Rear fairing right

61408041000BKA

$172.50

10

Battery holder

A61211054000

$14.48

11

HH COLLAR SCREW M8x60 TX40

0025080606

$3.08

12

RUBBER SEAT-CONTACT SURFACE

60307048000

$5.70

13

BUSHING 8.4X12X21.5

61407049000

$7.47

14

washer DIN 125 A -8.4

0125080003

$1.49

15

HH collar screw M8x35 TX40

0025080356

$4.11

16

HEATINGSWITCH COVER

61408019040

$7.94

17

Rubber grommet, standby gas se

60006001023

$5.23

18

PANNIER HOOK DAMPING RUBBER

61403002059

$11.77

19

PILLION HANDLE BAR

61412008000

$64.60

20

HH collar screw M6x20 TX30

0025060206

$3.08

21

METAMOLL F. TAIL LIGHT COVER

61408015030

$1.49

22

clip nut M6

54603048100

$4.11

23

EJOT PT screw K50x12

0081050121

$2.05

24

EDGE PROTECTOR PER METER

58312085100

$22.52

25

Special screw M6x15x5.5

83008100015

$3.08

27

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

28

EJOT PT screw K50x14

0081050141

$1.49

29

SIDE REFLECTOR RED REAR

16512180100

$7.10

30

BRACKET SIDE REFLECTOR

62512081100

$40.10

31

Metamoll 139x11.6x3 self-adhes

61711055020

$4.11

32

special screw M5x12

69008021160

$4.11

33

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05
