Description

Price

1

EJOT PT SCREW K50X16 1451

0081050161

$1.49

2

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

3

RUBBER SUPP. PRESSURE SENS. 06

61041085150

$5.23

4

PRESSURE SENSOR 06

61041085100

$144.36

5

HOSE 3,2X8,5 PER METER

60031098001

Unavailable

6

SUPPORT VACUUM SENSOR

61311085050

$5.98

7

EJOT PT screw K50x14

0081050141

$1.49

8

HH collar screw M5x25 TX30

0025050256S

$1.49

9

Bushing intake funnel

60306042010

$4.11

10

Velocity stack l=80

61641040100

$8.41

11

FUEL INJECTOR CPL.

60341023044

$187.46

12

O-RING

60341023020

$7.94

13

SEAL RING

75041023010

$11.49

14

FUEL PIPE CPL.

60341013044

$84.42

15

SCREW SHOULDER

75041013060

$6.72

20

Throttle valve body

A61241001000

$847.48

21

SCREW WASHER

75041085030

$3.08

22

PLATE, STAY

75041085020

$5.23

23

O-RING

75041085010

$6.07

24

MAP SENSOR CPL. 07

75041085044

$179.98

25

EDGE PROTECTOR L=45MM 05

61011055045

$3.08

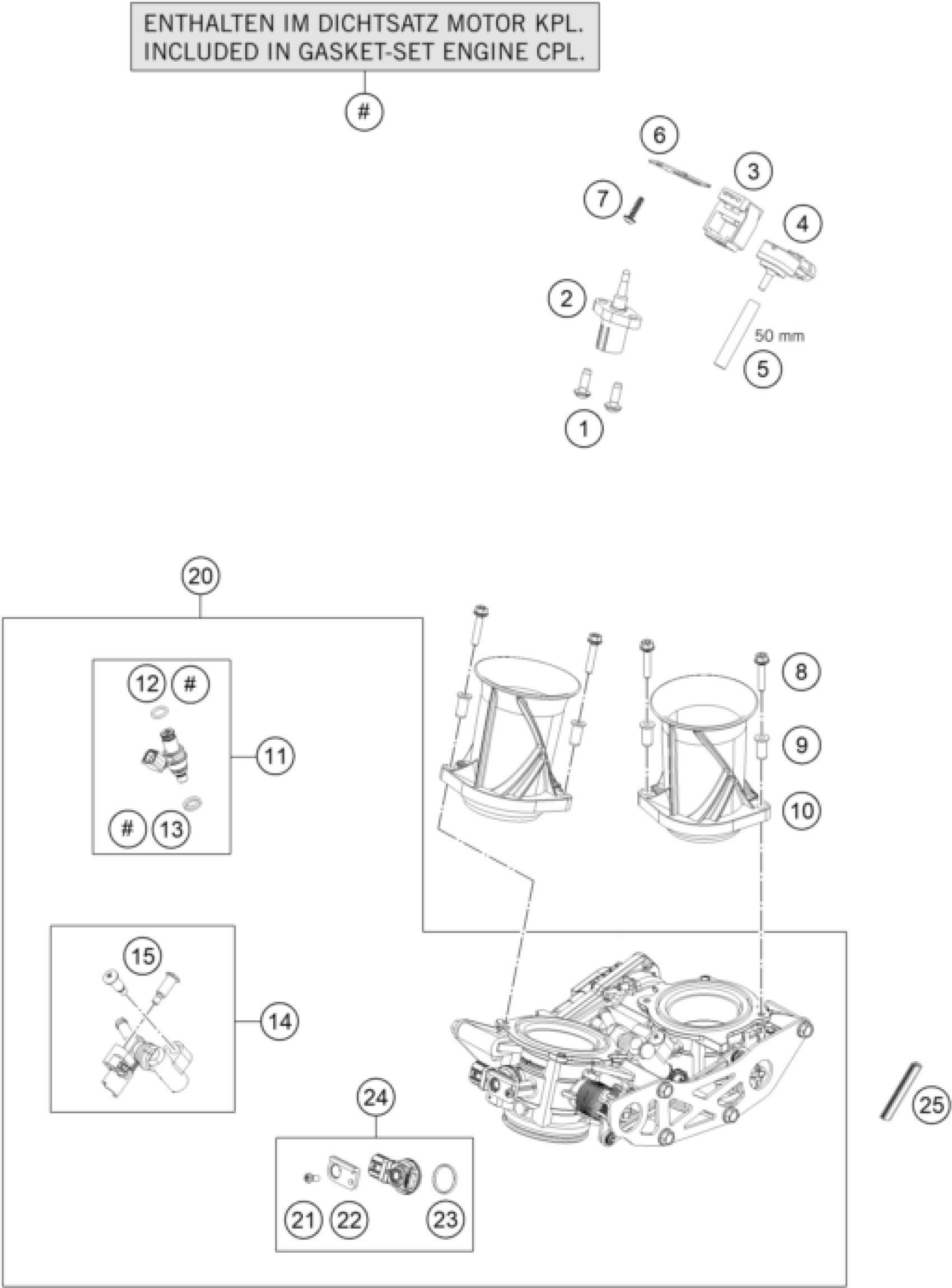

KTM 1290 SUPER DUKE GT, orange 2022 THROTTLE BODY Diagram

EJOT PT SCREW K50X16 1451

AMBIENT-AIR TEMPERATURE SENSOR

RUBBER SUPP. PRESSURE SENS. 06

PRESSURE SENSOR 06

HOSE 3,2X8,5 PER METER

SUPPORT VACUUM SENSOR

EJOT PT screw K50x14

HH collar screw M5x25 TX30

Bushing intake funnel

Velocity stack l=80

FUEL INJECTOR CPL.

O-RING

SEAL RING

FUEL PIPE CPL.

SCREW SHOULDER

Throttle valve body

SCREW WASHER

PLATE, STAY

O-RING

MAP SENSOR CPL. 07

EDGE PROTECTOR L=45MM 05
