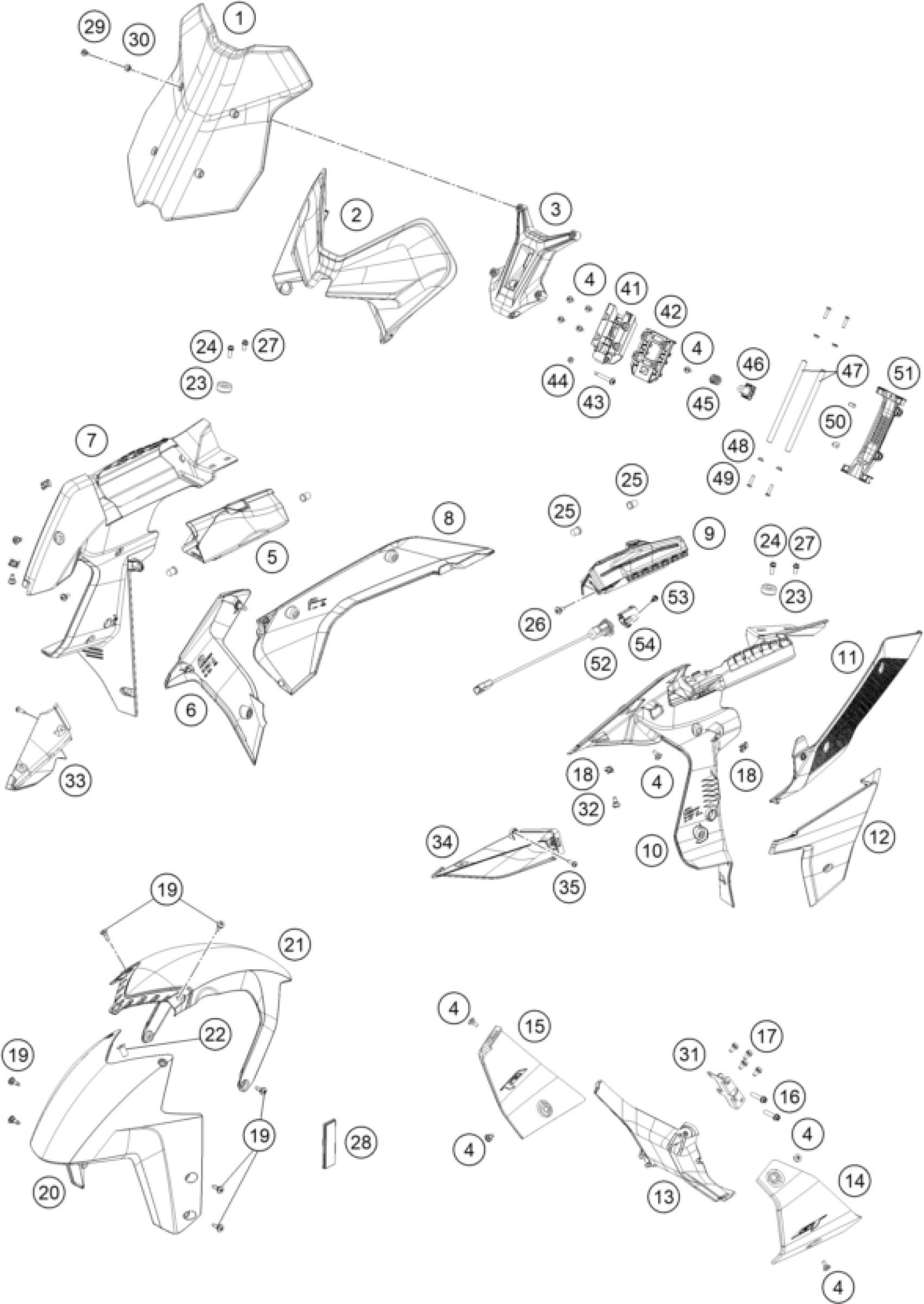

KTM 1290 SUPER DUKE GT, orange 2022 MASK, FENDERS Diagram

#

Description
Price

1

Windshield EU

61508008000

Unavailable

2

Headlight mask

61508001000

Unavailable

3

Windshield holder

61508008050

Unavailable

4

special screw M5x12

69008021160

Unavailable

5

Storage compartment, right cmp

61514078033

Unavailable

6

cooler spoiler right

61508061000

Unavailable

7

Inside cover, right

61508026000

Unavailable

8

LOWER TANKCOVER RIGHT

61408063000

Unavailable

9

Storage compartment, left, cmp

61514080144

Unavailable

10

Inside cover, left

61508027000

Unavailable

11

LOWER TANKCOVER LEFT

61408062000

Unavailable

12

Radiator spoiler, left

61508060000

Unavailable

13

Front spoiler, bracket

61508021000

Unavailable

14

Front spoiler left

6150802001033

Unavailable

15

Front spoiler right

6150802002033

Unavailable

16

HH collar screw M6x25 TX30

0025060256

Unavailable

17

HH collar screw M5x10 TX30

0025050106

Unavailable

18

clip nut M5

69008021080

Unavailable

19

special screw M5x17

69008021060

Unavailable

20

Front fender

61508010000BK

Unavailable

21

REAR FENDER BLACK

6130801100033

Unavailable

22

blind plug nut M5 WN16A

60008008050

Unavailable

23

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

24

HH collar screw M6x16 TX30

0025060166

Unavailable

25

Spring loaded pressure piece D

61508026010

Unavailable

27

HH collar screw M6x12 TX30

0025060126

Unavailable

28

SIDE REFLECTOR YELLOW "CEV"

60012080100

Unavailable

29

Special screw M5x14

60708008071

Unavailable

30

rubber bush windshield fixatio

60708008070

Unavailable

31

Front spoiler retaining bracke

61508021170

Unavailable

32

Special screw M5X14 ISA30

69007025014

Unavailable

33

Air inlet, right

61508003050

Unavailable

34

Air inlet, left

61508002050

Unavailable

35

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

41

Adapter, windshield bracket

61508008040

Unavailable

42

Slide bars, windshield adjust.

61508008030

Unavailable

43

Wheel spindle, windshield adju

61508008054

Unavailable

44

flanged hex nut EN 1661 M5

06923050003

Unavailable

45

Spring, windshield adjustment

61508008062

Unavailable

46

Locking mechanism, windshield

61508008060

Unavailable

47

Guide profile, windshield adju

61508008022

Unavailable

48

Bushing windshield fastening

61508008023

Unavailable

49

Lens head screw ISO 7380-M5X20

0738050202

Unavailable

50

Bump rubber

61508008032

Unavailable

51

Support, windshield adjustment

61508008020

Unavailable

52

USB power socket 12 V

64111043000

Unavailable

53

EJOT PT screw K50x12

0081050121

Unavailable

54

Adapter USB socket

A61211043030

Unavailable

26

Special screw M5x12

69008021170
