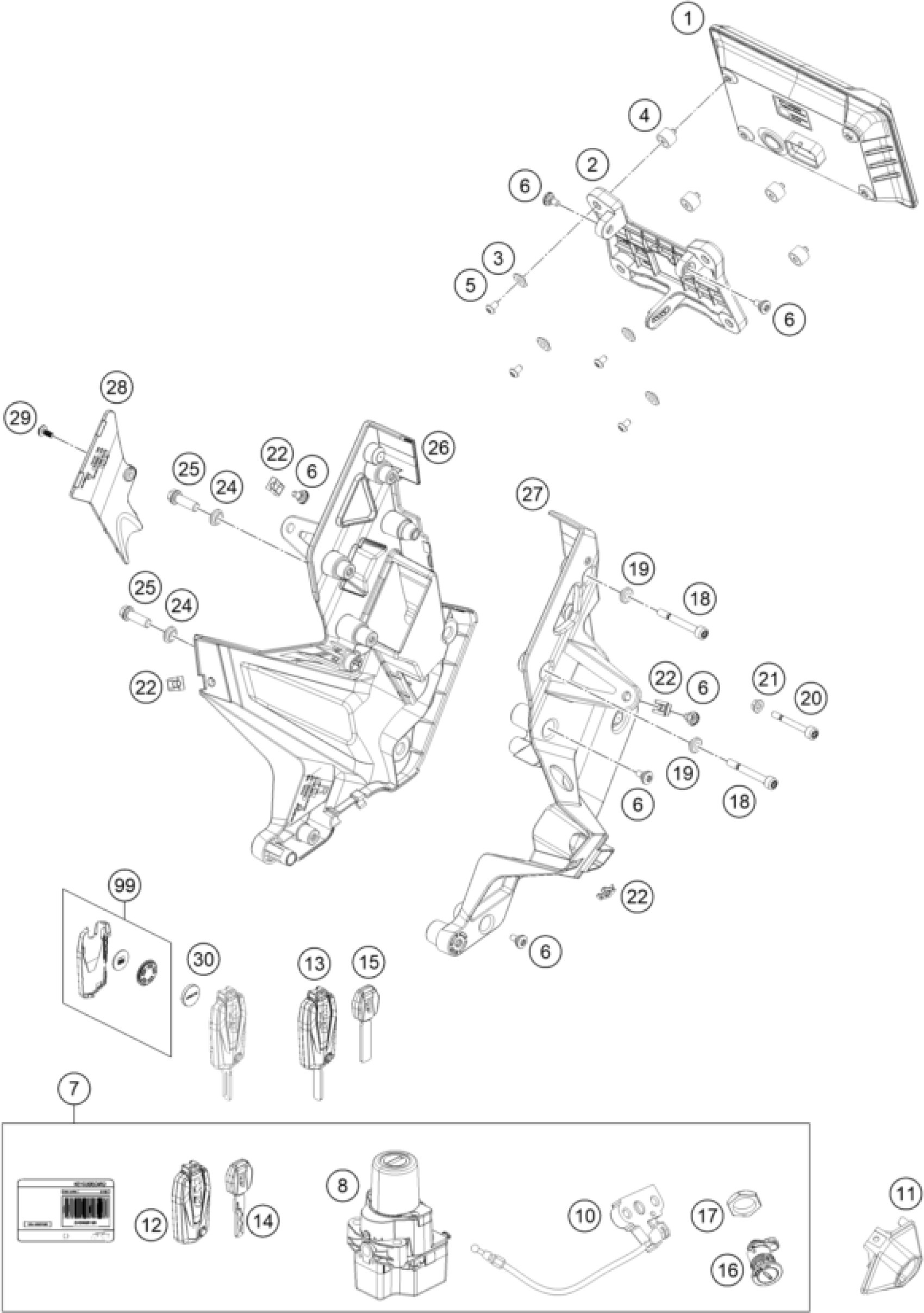

KTM 1290 SUPER DUKE GT, orange 2022 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

Combination instrument

61914069000

$1,109.56

2

Instrument support

61514062000

$24.11

3

Tachometer support bush

61614069020

$4.11

4

Damper, speedometer

61514069110

$6.63

5

Flat Head Screw ISO7380 M5x8 A

0738050082

$1.49

6

special screw M5x12

69008021160

$4.11

7

Locks set with key Race-on 433

61611266144

Unavailable

8

Ignition lock Race-on 433MHz

61611266000

$659.82

10

SEAT LOCK MECHANISM CPL.

61307050000

$35.71

11

PILLIONSEATLOCKHOLDER

61407055000

$6.91

12

Race-on key 433 MHz

60711267000

$212.42

13

Race on blank key 433MHz

60711267010

Unavailable

14

KTM ignition key

60411067100

$153.89

15

Blank KTM ignition key

60411067010

Unavailable

16

LOCK CYLINDER SEAT LOCK

61307050020

$151.93

17

NUT SEAT LOCK M22X1,5

69007050050

$10.74

18

AH-collar screw M6x50 ISA30

0900000605000

$10.56

19

Collar bushing 6.3x9x14x4.5

61514010010

$3.08

20

AH-collar screw M5x45 ISA30

0900000504500

$9.06

21

flanged hex nut EN 1661 M5

06923050003

$1.49

22

clip nut M5

69008021080

$3.08

24

BUSHING 8.2/11/4.75

61414011040

$3.08

25

HH collar screw M8x25

0025080256

$2.05

26

Mask support right

61514011100

$65.63

27

Mask support left

61514010100

$72.64

28

Cable cover, mask support

61514011010

$10.37

29

SCREW FOR PLASTIC K45X12 T20

0081045121

$1.49

30

BATTERY FOR ICO TRIPMASTER 04

58512085160

Unavailable

99

Cover-Kit for Race-on-Key

60711067050

Unavailable
