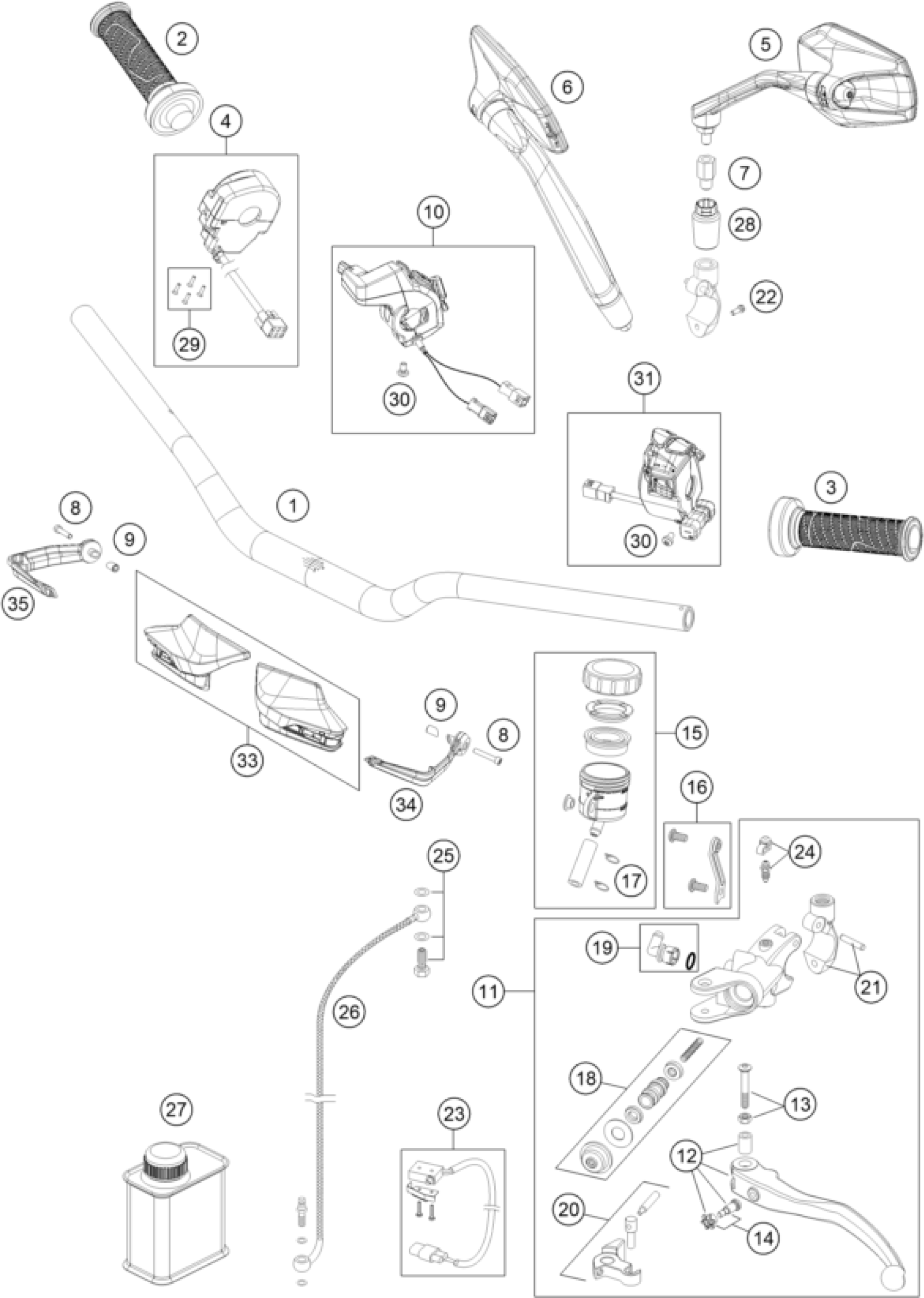

KTM 1290 SUPER DUKE GT, orange 2022 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

Handlebar Dk=28.5mm

A6120200100017

Unavailable

2

Handle gripheater R

60702112000

Unavailable

3

Handle Gripheater

60702139100

Unavailable

4

E-Throttle w/o grip

60711912000

Unavailable

5

MIRROR LEFT CPL.

61312040200

Unavailable

6

MIRROR RIGHT CPL.

61312041200

Unavailable

7

ADAPTOR FOR MIRROR

61312040050

Unavailable

8

Screw w.hex.socket M8x45-8.8 b

0912080451

Unavailable

9

Handguard clamp, internal

62002080053

Unavailable

10

Start / Emergency stop switch,

61711074100

Unavailable

11

MASTER CYLINDER CPL.

6130203014430

Unavailable

12

CLUTCH LEVER CPL.

6130203100030

Unavailable

13

LEVER SCREW SHORT CPL. 09

50302038200

Unavailable

14

ADJUSTING SCREW CPL.

61002043000

Unavailable

15

RESERVOIR CPL.

61002055144

Unavailable

16

RETAINING PLATE RESERVOIR

61302055050

Unavailable

17

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

18

REP. SET PISTON D=12MM 2007

59413008000

Unavailable

19

ANGLE PIECE CPL. (DOT)

61002051144

Unavailable

20

ROCKER CPL. 05

61002056000

Unavailable

21

CLAMP MIRROR W. TENSION PIN

6130204400030

Unavailable

22

HH collar screw M6x12 TX30

0025060126

Unavailable

23

CLUTCH SWITCH ATV

83111049000

Unavailable

24

BLEEDER SCREW WITH CAP

61002054000

Unavailable

25

HOLLOW SCREW + COPPER GASKET

59032062000

Unavailable

26

CLUTCH PIPE

61032063100

Unavailable

27

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

28

RUBBER SLEEVE

61312040030

Unavailable

29

SCREW SET START-STOP SWITCH

76011073110

Unavailable

30

PAN HEAD SCREW M5X10 TX25

073800501002

Unavailable

31

Combination steering switch, l

61711070100

Unavailable

33

Hand guard kit

61502079000CB

Unavailable

34

Handguard bracket left

61502082000C1

Unavailable

35

Handguard bracket right

61502083000C1

Unavailable
