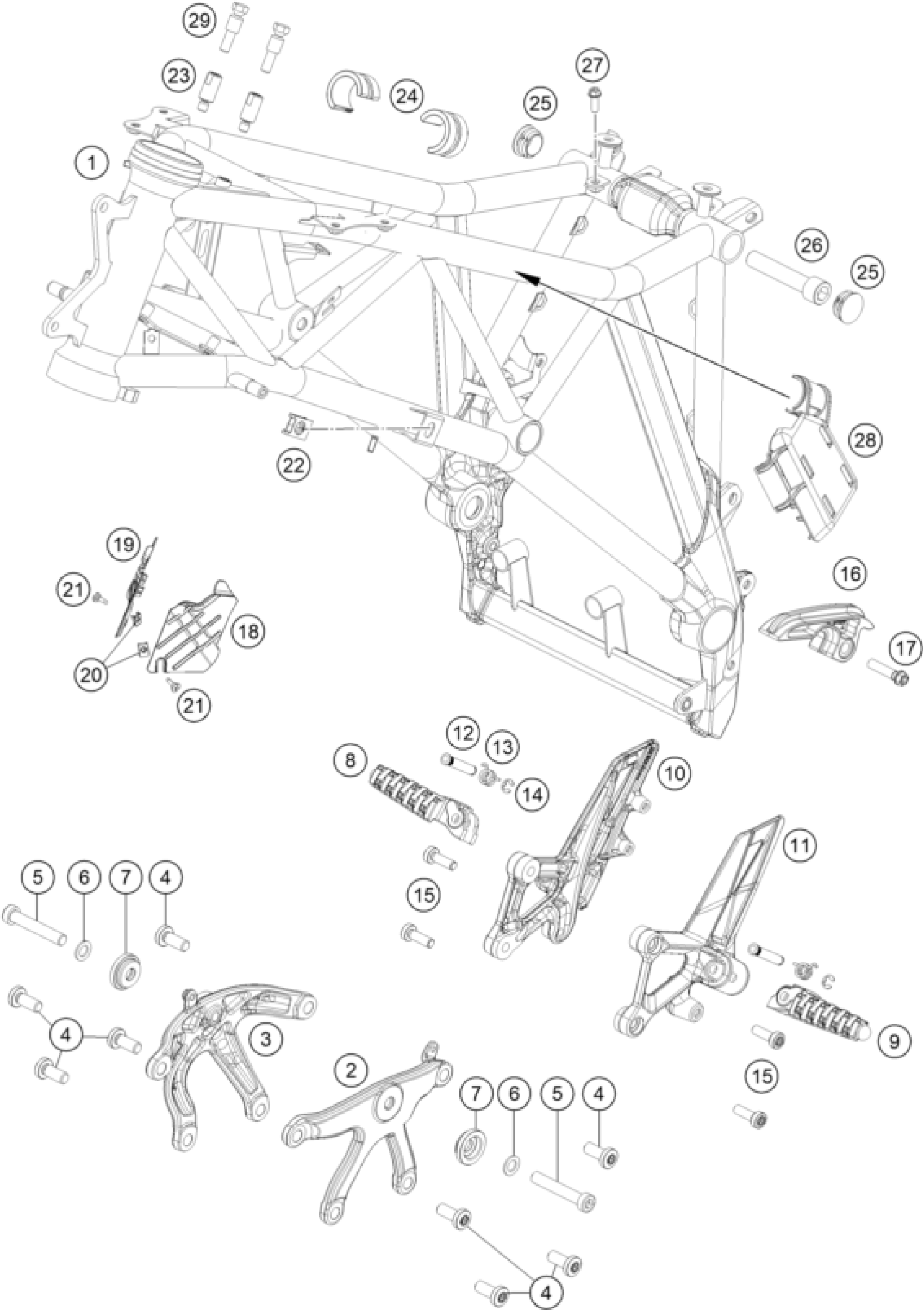

KTM 1290 SUPER DUKE GT, orange 2022 FRAME Diagram

#

Description
Price

1

Frame 615

61503001100EB

$2,312.34

2

ENGINE SUPPORTL/S BLACK

6030300500033S

$107.33

3

ENGINE SUPPORT R/S BLACK

6030300600033S

$107.33

4

AH collar screw M10x24 ISA45

0035100249

$3.08

5

AH-COLLAR SCREW M10X60 ISA45

0035100609S

$9.34

6

Washer DIN0433-M10

0433100003

$1.49

7

BUSHING MOTOR MOUNTING

60303010000

$9.81

8

FOOTREST FRONT R/S 13

6900314100033S

$35.24

9

FOOTREST FRONT L/S 13

6900314000033S

$43.00

10

FOOTREST SUPPORT FRONT R/S BL.

6130303910033S

$125.47

11

FOOTREST PLATE FR. L/S

6130313800033S

$123.32

12

footrest bolt, rear

60003044100

$8.03

13

SPRING FOOTREST FRONT 05

61003042000

$5.23

14

retaining washer DIN 6799 - 6

0799060003

$1.49

15

ISA collar screw M8x25 ISA45

0035080256S

$2.05

16

CHAIN SLIDING BLOCK-FRAME

61304076000

$14.58

17

HH collar screw M8x35 TX40

0025080356

$4.11

18

Frame cover left

61503085000

$8.97

19

FRAME COVER RIGHT

61403086000

$12.71

20

clip nut M5

69008021080

$3.08

21

special screw M5x17

69008021060

$3.08

22

RANGE CHANGE METAL NUT M8

54603048000

$4.11

23

Connecting piece keyless ignit

61503001013

$6.82

24

SPACER FUEL TANK 05

61007014000

$6.63

25

PLUG SFL28 05

61003088000

$2.05

26

SCREW M14X1,5 L=73MM 03

60004017000

$5.23

27

HH collar screw M6x12 TX30

0025060126

$3.08

28

TPMS holder

61412032040

$8.13

29

Tamper-proof screw

61611064000

$7.00
