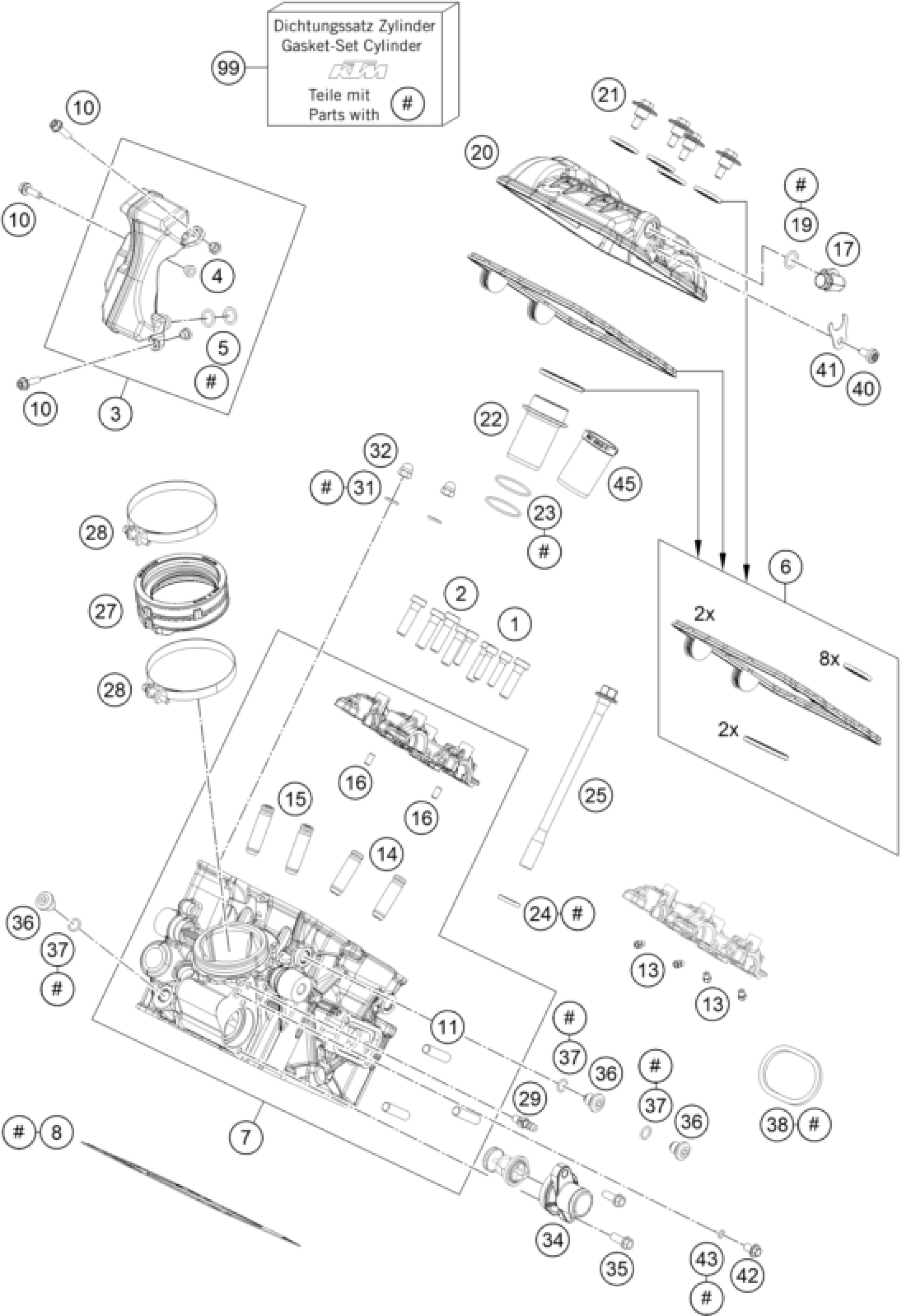

KTM 1290 SUPER DUKE GT, orange 2022 CYLINDER HEAD REAR Diagram

AH SCREW DIN7984-M 8X30 10.9

0984080305

$1.49

AH SCREW DIN0912-M 6X25 10.9

0912060255

$1.49

RESONATOR KPL.

60736065000

$56.18

SPACER BUSH. SPRING BRACKET

78003023070

$1.49

O-RING 11X2 VITON

0770110021

$2.05

Valve cover seal kit

61736099000

$74.98

cylinder head rear

6173632014424

$755.19

CYLINDER HEAD GASKET 0,85

61330036085

$66.47

HH Collar Screw M5x16 ISA30 SS

0025050166S

$1.49

STUD M 8X16 10.9

0835080165

$3.08

oil jet 50 M5

60030063050

$9.44

VALVE GUIDE EXHAUST 08

61236026001

$25.70

VALVE GIUDE INTAKE 6MM

61236025001

$22.43

needle roller DIN 5402 5x9.8

0402050980

$1.49

Elbow fitting

61236082200

$5.23

O-RING 12,00X2,00 NBR 70

0770120020

$2.05

Valve cover rear

61736152100C1

$49.36

collar screw M 6 WS=10 03

60036052020

$3.08

Spark plug shaft insert

61736075000

$22.06

O-RING 29,87X1,78 VITON

0770298178

$2.05

WASHER 11,1X20X3 08

61236079050

$5.51

CYLINDER HEAD SCREW 08

61236079000

$15.79

INTAKE BOOT

61336044000

$39.64

HOSE CLAMP GEMI 75

61336048000

$14.30

VACUUM CONNECTION M6/0.75MM

60036023200

$10.46

WASHER DIN0125-A 6,4

0125060003

$1.49

CAP NUT M6 STAINLESS STEEL

61230045000

$2.05

WATER CONNECTION CPL.

61235019100

$22.43

HH collar screw M6x20 TX30

0025060206

$3.08

SCREW PLUG

77336056095

$7.00

O-RING 9x1,5 V80 SH

07700900151

$2.05

EXHAUST PIPE FLANGE GASKET

69005005100

$18.69

EJOT ALtracs 60x12 TX30

0080060123

$1.49

connecting angle retaining pla

61236082150

$5.23

VENT SCREW M6X10 CPL.

59036006090

$4.11

O-RING 5,0X1,2 NBR 70

0770050012

$1.49

INSERT SPARK-PLUG SHAFT

61336074100

$22.71

Gasket kit cylinder+head f+r

61730097000

$329.86
