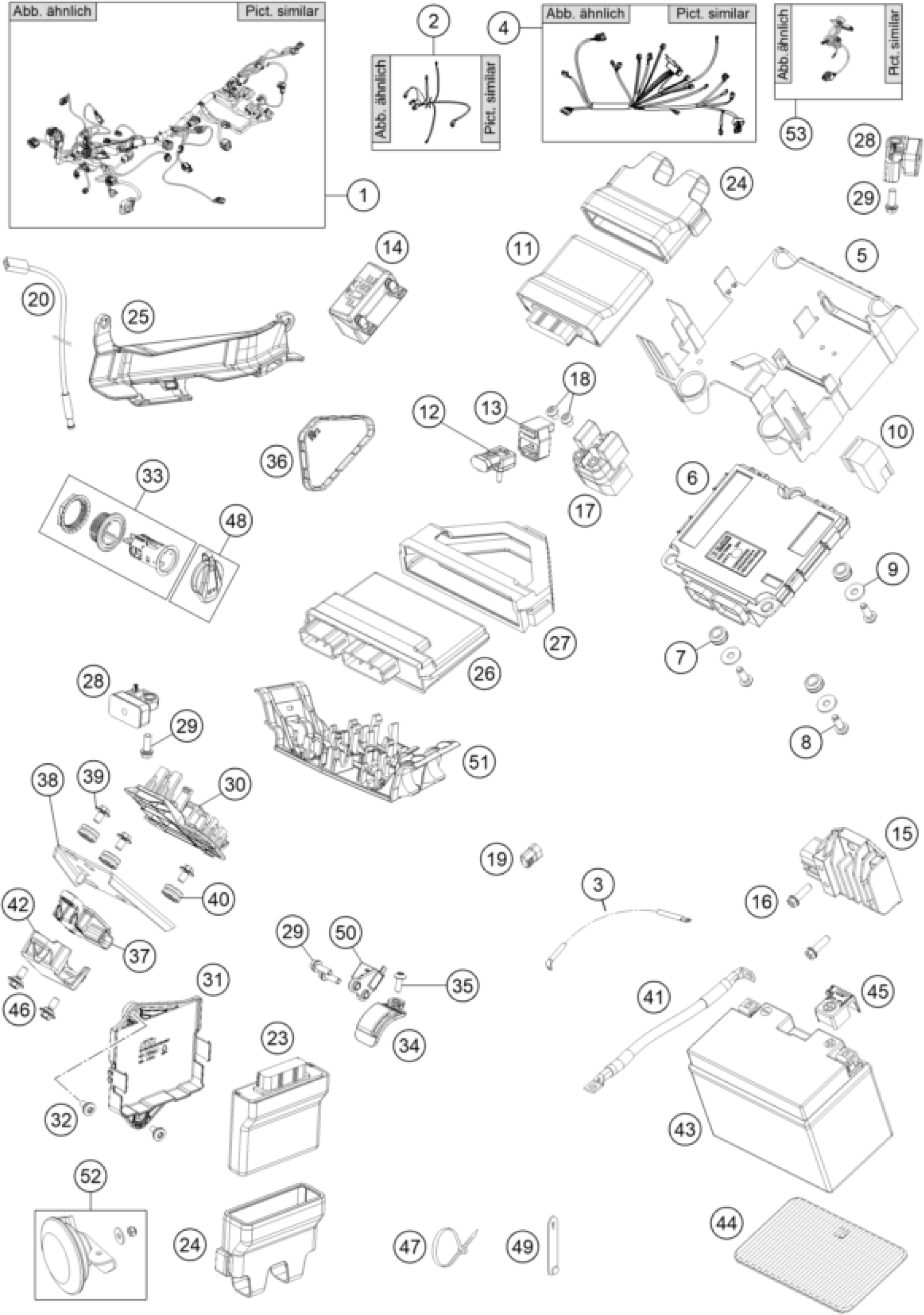

KTM 1290 Super Duke GT, orange 2018 WIRING HARNESS Diagram

#

Description
Price

1

MAIN HARNESS CPL.

61411075033

$1,286.93

2

engine harness

61411085100

$422.14

3

BATTERY CABLE

61311059050

$28.88

4

REAR WIRING HARNESS

61311076100

$36.92

5

MCU HOLDER

61408018010

$20.75

6

MOTORCYCLE CONTROL UNIT 2.1

60311033200

$838.03

7

rubber grommet 9x11x16x8.5 mm

60006001022

$2.05

8

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

9

Washer DIN9021-A 6.4

0021060003

$2.05

10

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

11

ELECTRONIC CONTROL UNIT SAFE

60416031000

$522.47

12

PRESSURE SENSOR 06

61041085100

$144.36

13

RUBBER SUPP. PRESSURE SENS. 06

61041085150

$5.23

14

RUBBER CASING FUSE BOX

61311087050

$16.35

15

VOLTAGE REGULATOR

60311034000

$177.55

16

HH collar screw M6x20 TX30

0025060206

$3.08

17

Starter relay

76211058000

$79.19

18

Oval head screw ISK ISO7380 M6

0738060101

$1.49

19

CAP FOR CONNECTOR 000700000HJ

000700000HJ01

$4.11

20

Temperatur sensor

61111018100

$31.59

23

CONTROL UNIT CURVE LIGHT

60414039000

$393.07

24

RUBBER EDS-CONTROL UNIT

60316029000

$33.18

25

CABLE CHANNEL R/S

60311047000

$8.13

26

ECU EFI

61341031200

$519.85

27

ECU RUBBER BRACKET

60341031050

$17.76

28

ACCLERATION SENSOR

60416063000

$69.84

29

HH collar screw M6x16 TX30

0025060166

$3.08

30

CONNECTOR BOARD FRONT

61411083000

$10.65

31

LCU HOLDER

61414039050

$9.90

32

special screw M5x17

69008021060

$3.08

33

Power socket 12V

60711042000

$55.81

34

MAGNET HOLDER

60416061000

$52.73

35

Oval head screw M5x14 TX25

58605083014

$3.08

36

HEATINGSWITCH COVER

61408019040

$7.94

37

SLOPING POSITIONS SENSOR

60342090000

$466.28

38

SUPPORT SLOPING POS. SENSOR

61342090040

$39.73

39

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

40

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

41

GROUND CABLE BATT.-FRAME 16MM

61411098000

$22.52

42

COVER SENSOR BOX

61342090050

$12.15

43

BATTERY 12V/11AH 03

60011053000

$366.89

44

RUBBER PLATE FOR BATTERY

61311053050

$10.84

45

COVER POSITIVE POLE

62111059060

$4.11

46

SPECIAL SCREW M6X15X3

83008000015

$3.08

47

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

47

Cable tie 200/4.6mm black

44011076200

Unavailable

47

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

48

Lid 12V-socket

60311042050

$7.38

49

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

50

WHEEL TRAVEL SENSOR

60416062000

$126.96

51

CONNECTOR BOARD REAR

61411049000

$10.93

52

Direct current horn complete

61611060033

$40.57

53

HARNESS FRONT

61411078000

Unavailable
