Description

Price

1

EJOT PT SCREW K50X16 1451

0081050161

$1.49

2

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

3

RUBBER SUPP. PRESSURE SENS. 06

61041085150

$5.23

4

PRESSURE SENSOR 06

61041085100

$144.36

5

HOSE 3,2X8,5 PER METER

60031098001

Unavailable

6

SUPPORT VACUUM SENSOR

61311085050

$5.98

7

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

8

HH collar screw M5x25 TX30

0025050256S

$1.49

9

Bushing intake funnel

60306042010

$4.11

10

INTAKE TRUMPET LENGTH 100

61341040100

$19.72

11

FUEL INJECTOR CPL.

60341023044

$187.46

12

O-RING

60341023020

$7.94

13

SEAL RING

75041023010

$11.49

14

FUEL PIPE CPL.

60341013044

$84.42

15

SCREW SHOULDER

75041013060

$6.72

16

ECU EFI

61341031200

$519.85

17

ECU RUBBER BRACKET

60341031050

$17.76

20

THROTTLE BODY

61341001000

$1,306.47

21

SCREW WASHER

75041085030

$3.08

22

PLATE, STAY

75041085020

$5.23

23

O-RING

75041085010

$6.07

24

MAP SENSOR CPL. 07

75041085044

$179.98

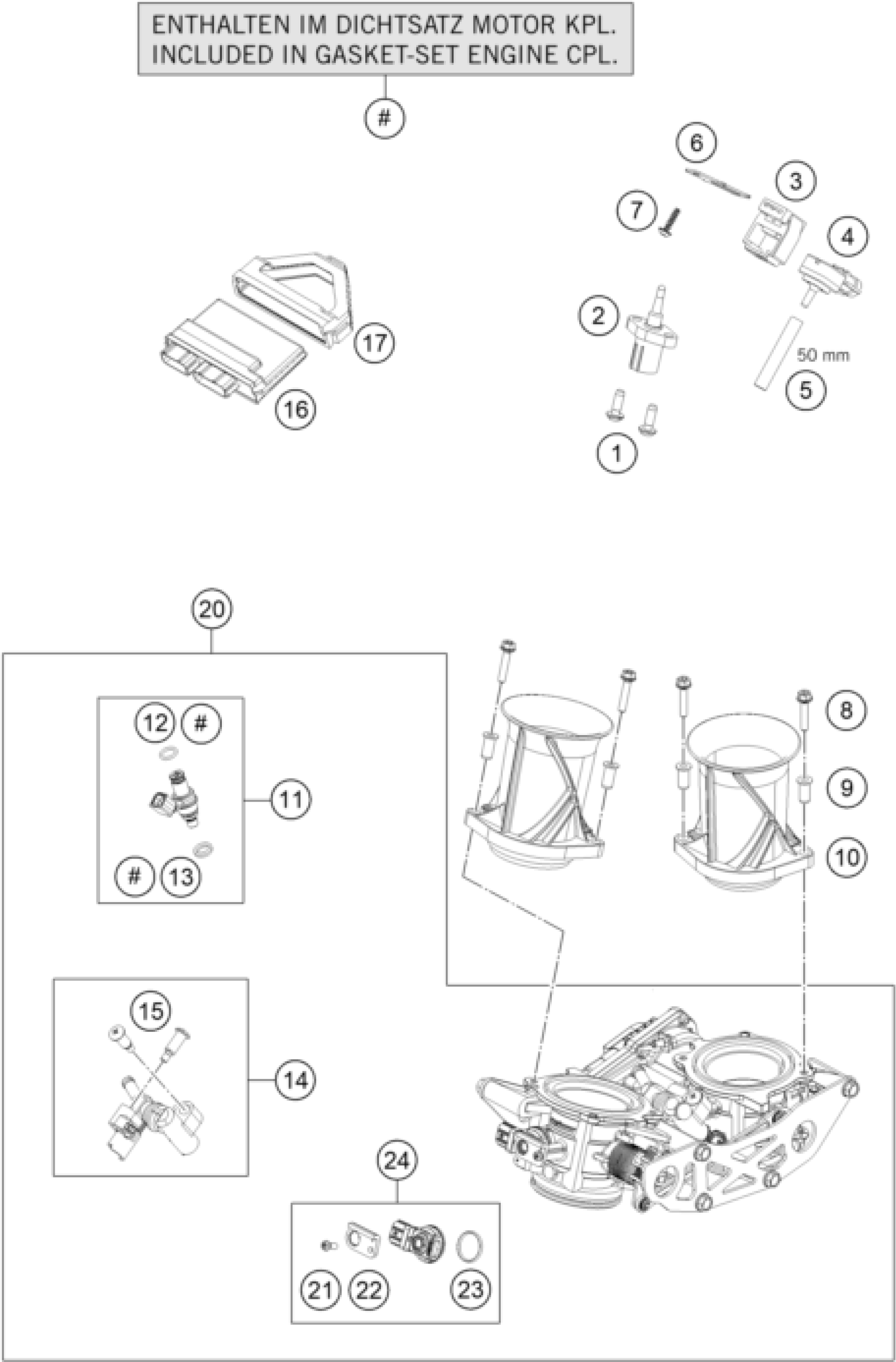

KTM 1290 SUPER DUKE GT GREY ABS 16 <2016 THROTTLE BODY Diagram

EJOT PT SCREW K50X16 1451

AMBIENT-AIR TEMPERATURE SENSOR

RUBBER SUPP. PRESSURE SENS. 06

PRESSURE SENSOR 06

HOSE 3,2X8,5 PER METER

SUPPORT VACUUM SENSOR

SCREW FOR PLASTIC K50X18 T20

HH collar screw M5x25 TX30

Bushing intake funnel

INTAKE TRUMPET LENGTH 100

FUEL INJECTOR CPL.

O-RING

SEAL RING

FUEL PIPE CPL.

SCREW SHOULDER

ECU EFI

ECU RUBBER BRACKET

THROTTLE BODY

SCREW WASHER

PLATE, STAY

O-RING

MAP SENSOR CPL. 07
