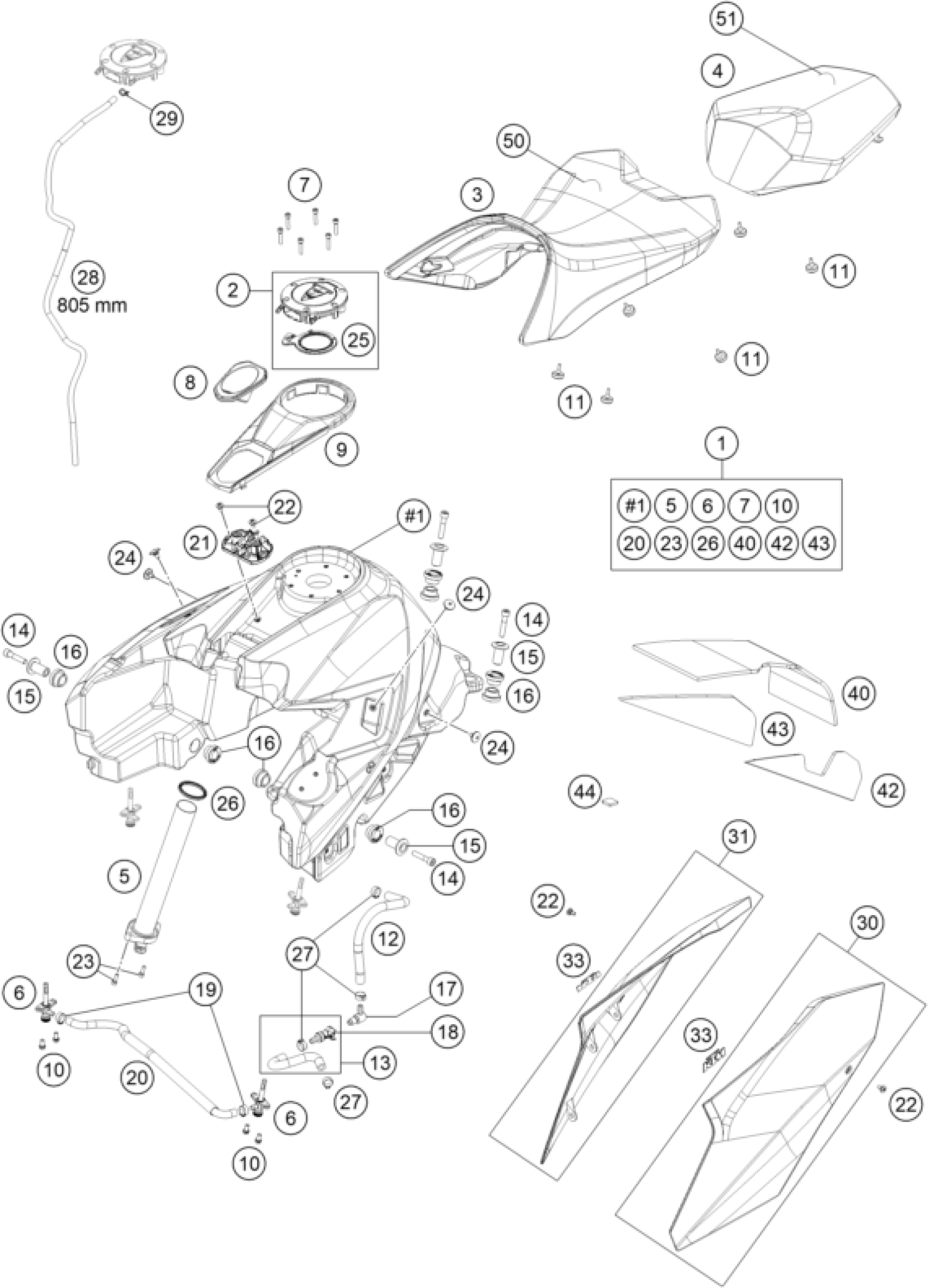

KTM 1290 SUPER DUKE GT GREY ABS 16 <2016> TANK, SEAT Diagram

#

Description
Price

22

special screw M5x12

69008021160

Unavailable

23

AH collar screw DIN 912 M5x16

0912050163

Unavailable

24

SCREW FOR SEAT M6X11,5/8

58407011100

Unavailable

1

FUEL TANK ASS. SD GT ANTHRAZIT

61407013044BHA

Unavailable

2

TANK CAP

61407008000

Unavailable

3

SEAT DRIVER COMPLETE

61407040000

Unavailable

4

SEAT PASSENGER

61407047000

Unavailable

5

FUEL LEVEL SENSOR

61407080000

Unavailable

6

Fuel cock cmpl.

58507003200

Unavailable

7

AH SCREW DIN0912-M 5X25

0912050253

Unavailable

8

LOCK COVER

61407059000

Unavailable

9

TANK COVER

61407058000

Unavailable

10

HH collar screw M6x12 TX30

0025060126

Unavailable

13

FUEL HOSE CPL.

62607016044

Unavailable

14

AH collar screw DIN0912 M8x40

0912080403

Unavailable

15

collar bushing, bearing, outsi

61007060000

Unavailable

16

collar bushing, front tank hol

61007065000

Unavailable

12

FUEL HOSE DKK

61407016050

Unavailable

17

PLUG CPC

7720701000030

Unavailable

33

DEKOR ''KTM'' 3D 1290 SUPERD.

61408098000

Unavailable

19

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

20

TANK COMPENSATION TUBE

61407018000

Unavailable

21

HOSE HOLDER

61407058050

Unavailable

18

Clutch CPC PLCD17005, black

5850701050030

Unavailable

25

GASKET TANK CAP

60307008190

Unavailable

26

Gasket fuel lever sensor

60307080090

Unavailable

27

Variable one-ear clamp 15.7mm

00050157706

Unavailable

30

SPOILER LEFT

61408050100CAA

Unavailable

31

SPOILER RIGHT

61408051100CAA

Unavailable

28

HOSE 5,4X9,4 NBR, METER

60007126001

Unavailable

29

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

11

Distance rupper airbox 03

60006001021

Unavailable

40

INSULATION MAT MIDDLE

61306095010

Unavailable

42

INSULATION MAT L/S

61306095020

Unavailable

43

INSULATION MAT R/S

61306095030

Unavailable

50

SEAT COVER DRIVER

61407040050

Unavailable

51

SEAT COVER SOZIUS

61407047050

Unavailable

44

METAMOLL F. TAIL LIGHT COVER

61408015030

Unavailable
