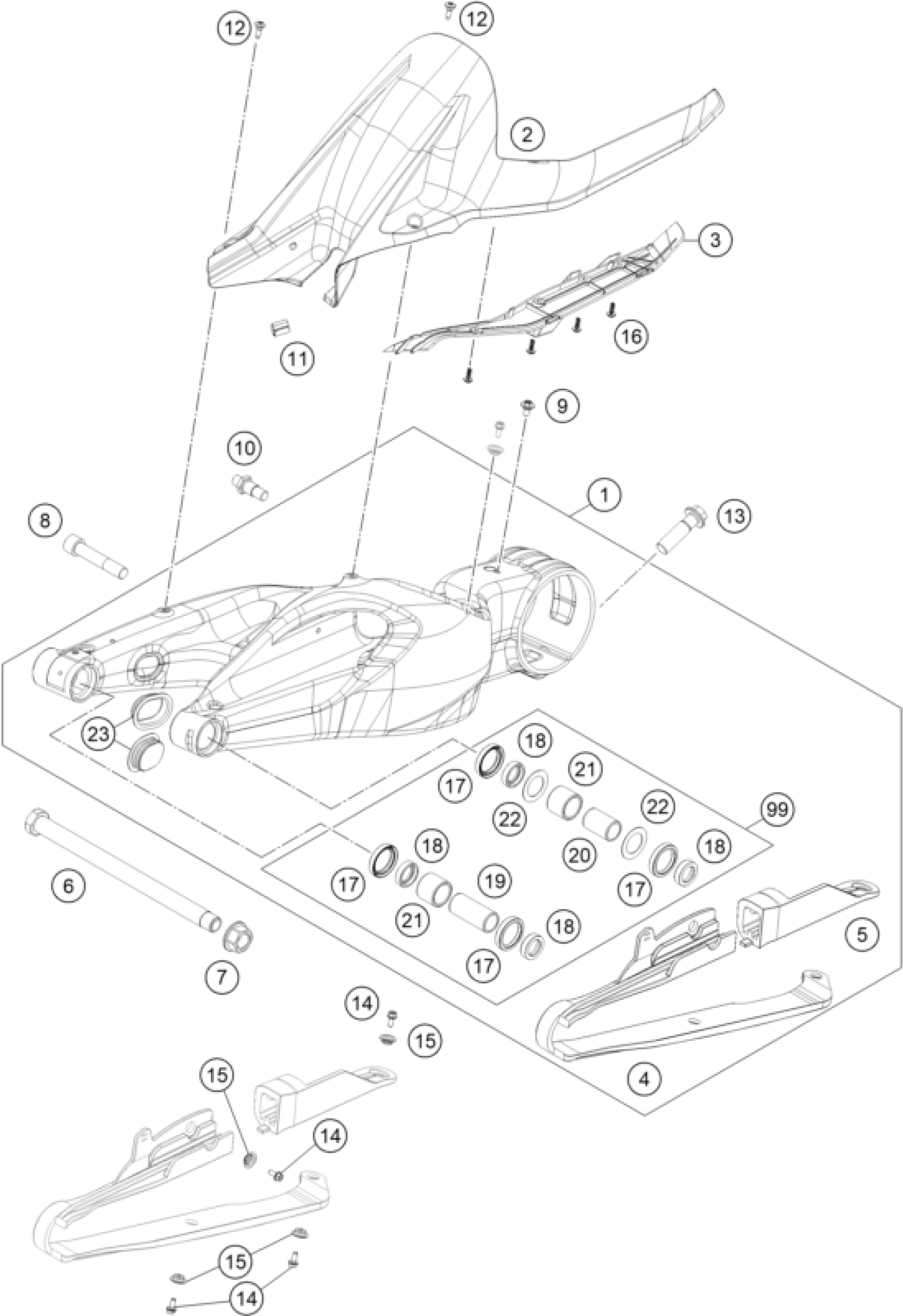

KTM 1290 SUPER DUKE GT GREY ABS 16 <2016 SWING ARM Diagram

special screw M5x17

69008021060

$3.08

HH collar screw M16X1.5X55

61310021000

$8.69

SWINGARM CPL. SD-GT 16

6140403004433A

$1,320.77

REARFENDER

61304050100

$47.68

BRACKET SPLASH PROTECTOR

61304051000

$16.73

CHAIN SLIDING GUARD FRONT

61304060000

$36.74

CHAIN SLIDING GUARD REAR

61304070000

$23.46

SWING ARM BOLT

69004037244

$73.76

Collar nut M19X1.5 SW=27MM

60004038200

$17.94

SCREW M14X1,5 L=73MM 03

60004017000

$5.23

special screw M6x12x3

83008000012

$3.08

BOLT BRAKE SADDLE BRACKET

76004142000

$30.10

BUSH FOR CHAINSLIDER GUARD 02

46104066050

$8.31

EJOT PT screw K50x14

0081050141

$1.49

Radial shaft seal 30X40X7

0760304073

$4.11

Bucket f. shaft seal ring 03

60004034000

$8.03

Inner ring JR 20X25X56.5

69004032000

$36.08

INNER RING JR20X25X38,5 03

60004032000

$18.13

NEEDLE BUSH HK2526B 03

60004031000

$10.65

Stop disk 03

60004033000

$2.05

Locking cap swingarm

61304041100

$8.69

swingarm rep. kit

69004230010

$96.30

HH collar screw M5x12 TX30

0025050126

$3.08

CABLE SUPPORT

61304042000

$2.05
