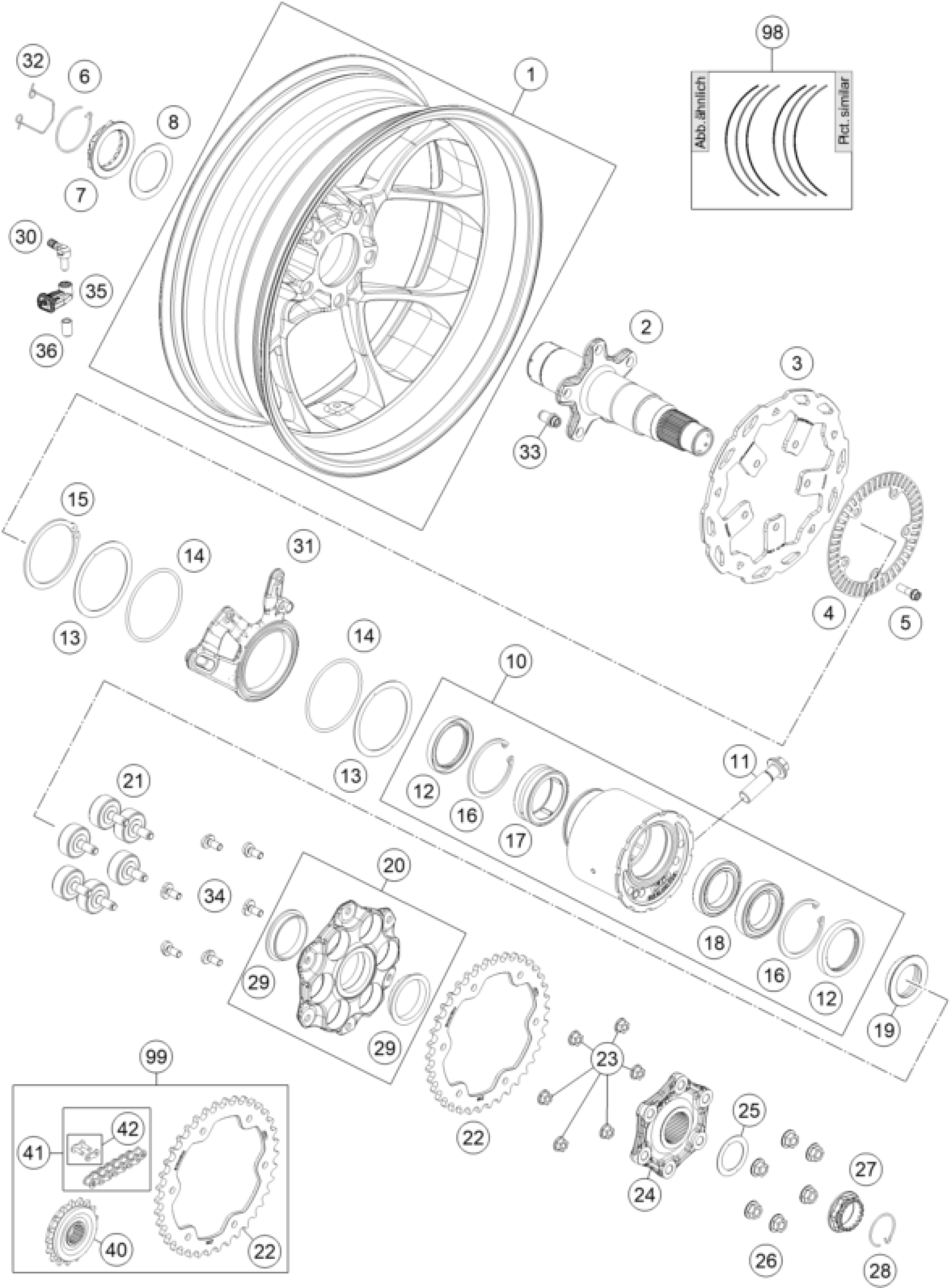

KTM 1290 SUPER DUKE GT GREY ABS 16 <2016 REAR WHEEL Diagram

TIRE PRESSURE SENSOR SMALL

61412033000

$91.15

DECAL KIT RIMS SUPERDUKE GT 16

61409098000

$140.24

AXLE REAR

61310085100

$455.15

BRAKE DISC 240MM

76010160000

$147.72

Phonic wheel, rear

76042121000

$43.00

REAR WHEEL 6X17''

6141010100030

$482.73

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

Safety wire, right

61310187000

$4.11

AXLE NUT M50X1.5

61310186100

$45.90

WASHER 69X1

61310016000

$6.63

CLUTCH HUB HOUSING CPL.

61310010044

$525.37

HH collar screw M16X1.5X55

61310021000

$8.69

Radial shaft seal 52X68X8

0760526880

$6.82

WASHER 94X1

61310019000

$6.72

O-ring 84.00X3.5 NBR70

0770840035

$2.05

CIRCLIP DIN471-78X2.5

0471078250

$3.08

CIRCLIP DIN472-68X2.5

0472068250

$2.05

NEEDLE BEARING RNA4909-2RSR-XL

0617456822

$70.77

Grooved ball bearing 61909-2RS

0625061909

$66.47

SPACER RING

61310014000

$29.35

SPROCKET SUPPORT CPL.

6131005404433S

$185.59

JAR DAMPER

61310059000

$22.71

SPROCKET STEEL DUKE 1290 Z38

61310151038

$90.31

Self locking nut M8 10.9

54310086200

$3.08

JAR DAMPER CARRIER

6131005000033S

$97.23

SHIM 50X1

76010116000

$6.63

Hex. nut DIN6923 M10X1.25-10

06923100003

$1.49

AXLE NUT M35X1.5

61310086000

$33.09

Safety wire, left

76010187000

$4.11

IGUS BEARING D=50

76010052000

$22.43

VALVE 8,5MM 90° F. TPMS SMALL

61412033060

$25.42

BRAKE CALIPER ADAPTER BLACK

6131307500033S

$96.58

Safety wire, inner

61310010011

$6.91

DOWEL PIN M8

61310113000

$12.33

Chain sprocket 17-t, damped 0

60033129017

$59.18

CHAIN DID525 VAZ & MASTER LINK

61310165118

$231.40

MASTER LINK FOR CHAIN DID VAZ

61310066000

$10.74

DRIVETRAIN KIT 1290 SD 17T/38T

00050002029

$349.96

NUT F. TYRE-PRESSURE SENSOR SM

61412033050

$7.10

SPROCKET SCREW

61310052000

$2.05
