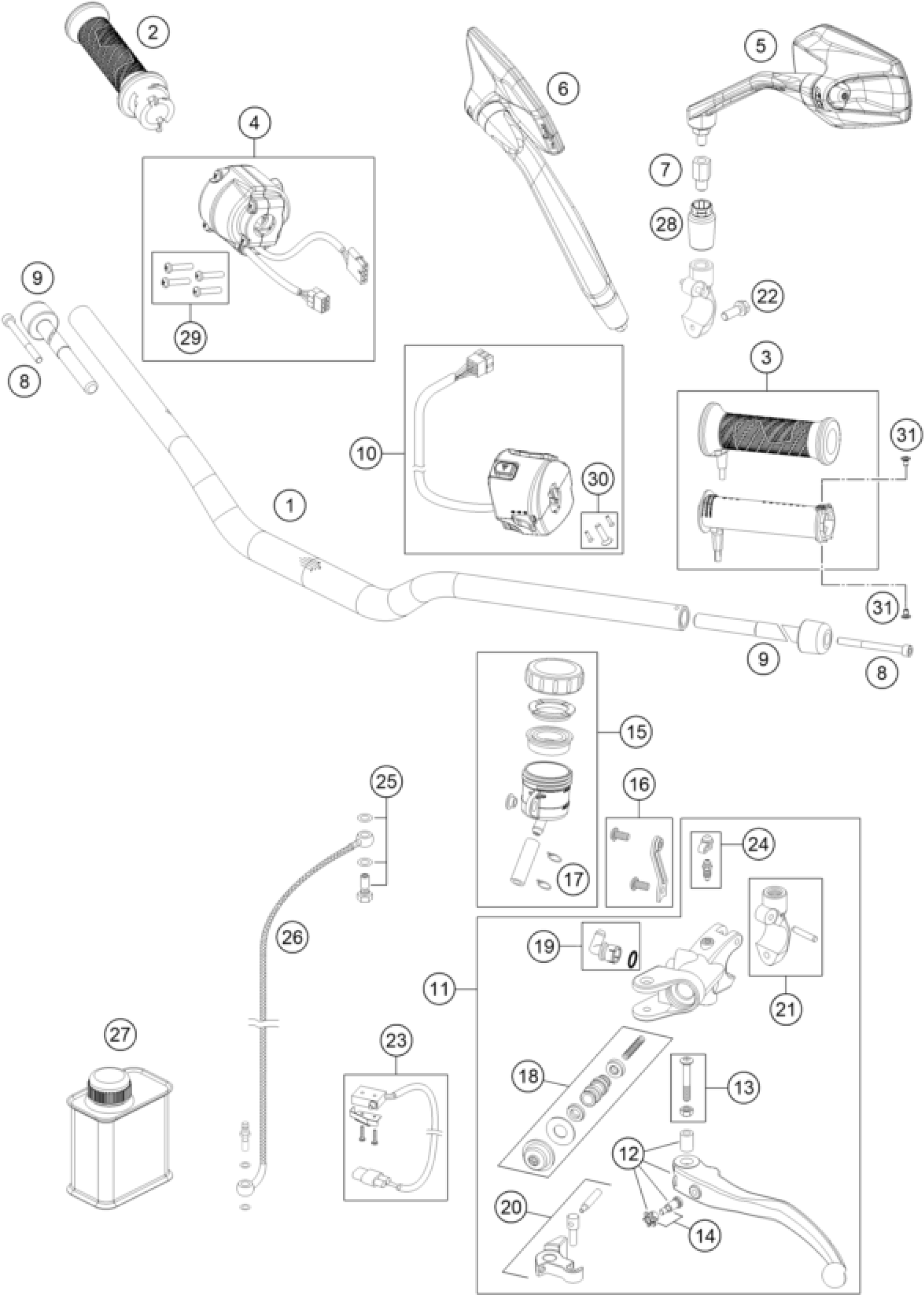

KTM 1290 SUPER DUKE GT GREY ABS 16 <2016> HANDLEBAR, CONTROLS Diagram

#

Description
Price

31

EJOT SPIRAL SCREW SF M4X6-K

60402052010

Unavailable

1

HANDLEBAR L=743MM DK=28.5MM

6140200100017

Unavailable

2

THROTTLE GRIP

60402010100

Unavailable

3

FIXED GRIP

60402052100

Unavailable

4

EMGCY OFF SWITCH SPEED CONTROL

60411074000

Unavailable

5

MIRROR l/S

61312040100

Unavailable

6

MIRROR R/S CPL.

61312041100

Unavailable

7

ADAPTOR FOR MIRROR

61312040050

Unavailable

8

SHCS DIN 912 M6x65

0912060653

Unavailable

9

handlebar weight

61002004000

Unavailable

10

HANDLEBAR SWITCH

60311070100

Unavailable

11

MASTER CYLINDER CPL.

6130203014430

Unavailable

12

CLUTCH LEVER CPL.

6130203100030

Unavailable

13

LEVER SCREW SHORT CPL. 09

50302038200

Unavailable

14

ADJUSTING SCREW CPL.

61002043000

Unavailable

15

RESERVOIR CPL.

61002055144

Unavailable

16

RETAINING PLATE RESERVOIR

61302055050

Unavailable

17

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

18

REP. SET PISTON D=12MM 2007

59413008000

Unavailable

19

ANGLE PIECE CPL. (DOT)

61002051144

Unavailable

20

ROCKER CPL. 05

61002056000

Unavailable

21

CLAMP MIRROR W. TENSION PIN

6130204400030

Unavailable

22

HH collar screw M6x12 TX30

0025060126

Unavailable

23

CLUTCH SWITCH ATV

83111049000

Unavailable

24

BLEEDER SCREW WITH CAP

61002054000

Unavailable

25

HOLLOW SCREW + COPPER GASKET

59032062000

Unavailable

26

CLUTCH PIPE

61032063100

Unavailable

27

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

28

RUBBER SLEEVE

61312040030

Unavailable

29

SCREW SET START-STOP SPEED CON

60411074010

Unavailable

30

SCREW SET HANDLEBAR SWITCH

60311070110

Unavailable
