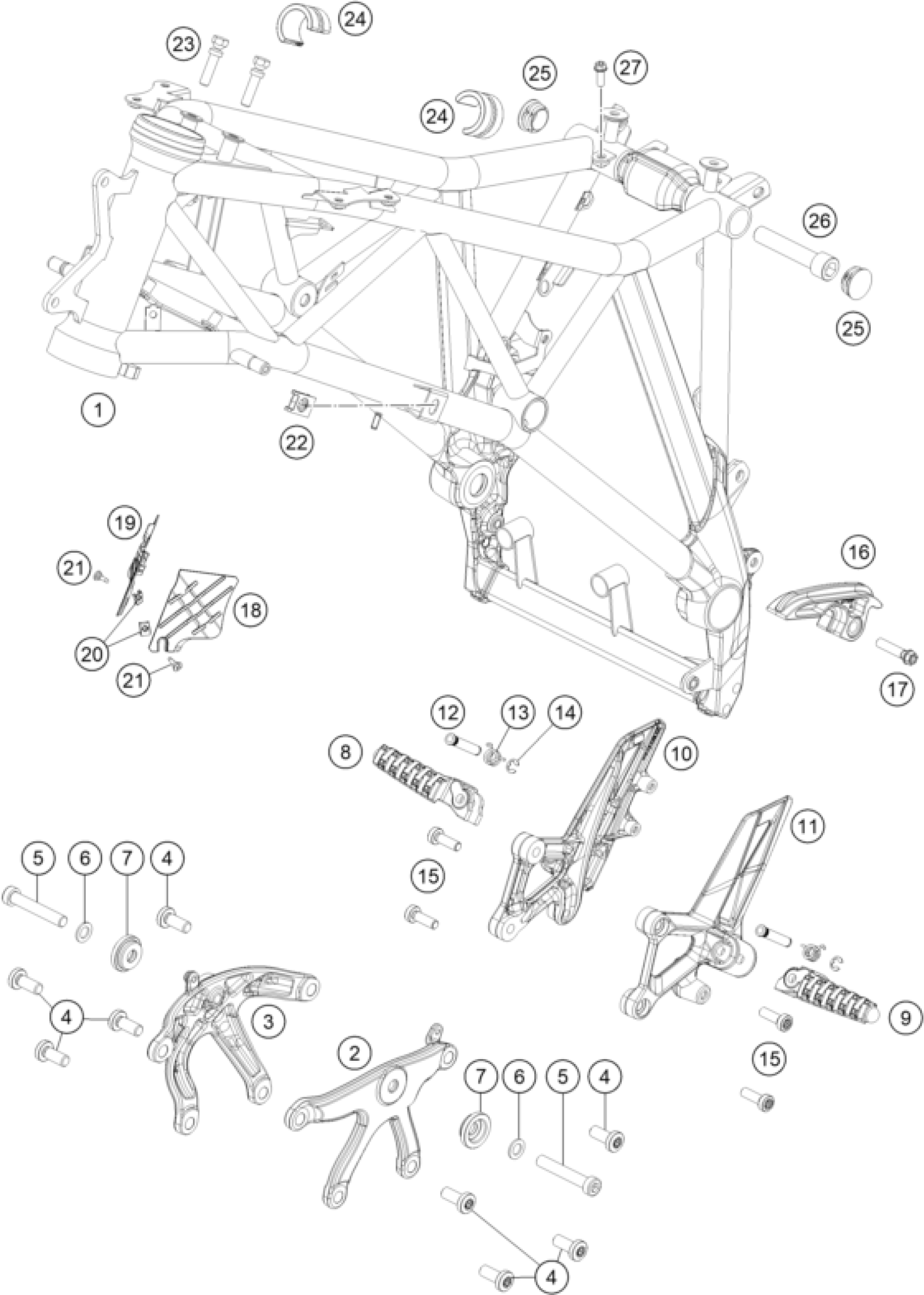

KTM 1290 SUPER DUKE GT GREY ABS 16 <2016> FRAME Diagram

#

Description
Price

2

ENGINE SUPPORTL/S BLACK

6030300500033S

Unavailable

7

BUSHING MOTOR MOUNTING

60303010000

Unavailable

8

FOOTREST FRONT R/S 13

6900314100033S

Unavailable

9

FOOTREST FRONT L/S 13

6900314000033S

Unavailable

10

FOOTREST SUPPORT FRONT R/S BL.

6130303910033S

Unavailable

12

footrest bolt, rear

60003044100

Unavailable

13

SPRING FOOTREST FRONT 05

61003042000

Unavailable

14

retaining washer DIN 6799 - 6

0799060003

Unavailable

11

FOOTREST PLATE FR. L/S

6130313800033S

Unavailable

1

FRAME ''614 PA'' EL. ORANGE

61403001100EB

Unavailable

3

ENGINE SUPPORT R/S BLACK

6030300600033S

Unavailable

4

AH collar screw M10x24 ISA45

0035100249

Unavailable

5

AH-COLLAR SCREW M10X60 ISA45

0035100609S

Unavailable

6

Washer DIN0433-M10

0433100003

Unavailable

17

HH collar screw M8x35 TX40

0025080356

Unavailable

18

FRAME COVER L/S

61303085000

Unavailable

19

FRAME COVER RIGHT

61403086000

Unavailable

20

clip nut M5

69008021080

Unavailable

21

special screw M5x17

69008021060

Unavailable

22

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

23

TAMPER-PROOF SCREW 07

61111064000

Unavailable

24

SPACER FUEL TANK 05

61007014000

Unavailable

25

PLUG SFL28 05

61003088000

Unavailable

26

SCREW M14X1,5 L=73MM 03

60004017000

Unavailable

27

HH collar screw M6x12 TX30

0025060126

Unavailable

15

AH collar screw M8x25 ISA45

0035080256

Unavailable

16

CHAIN SLIDING BLOCK-FRAME

61304076000

Unavailable
