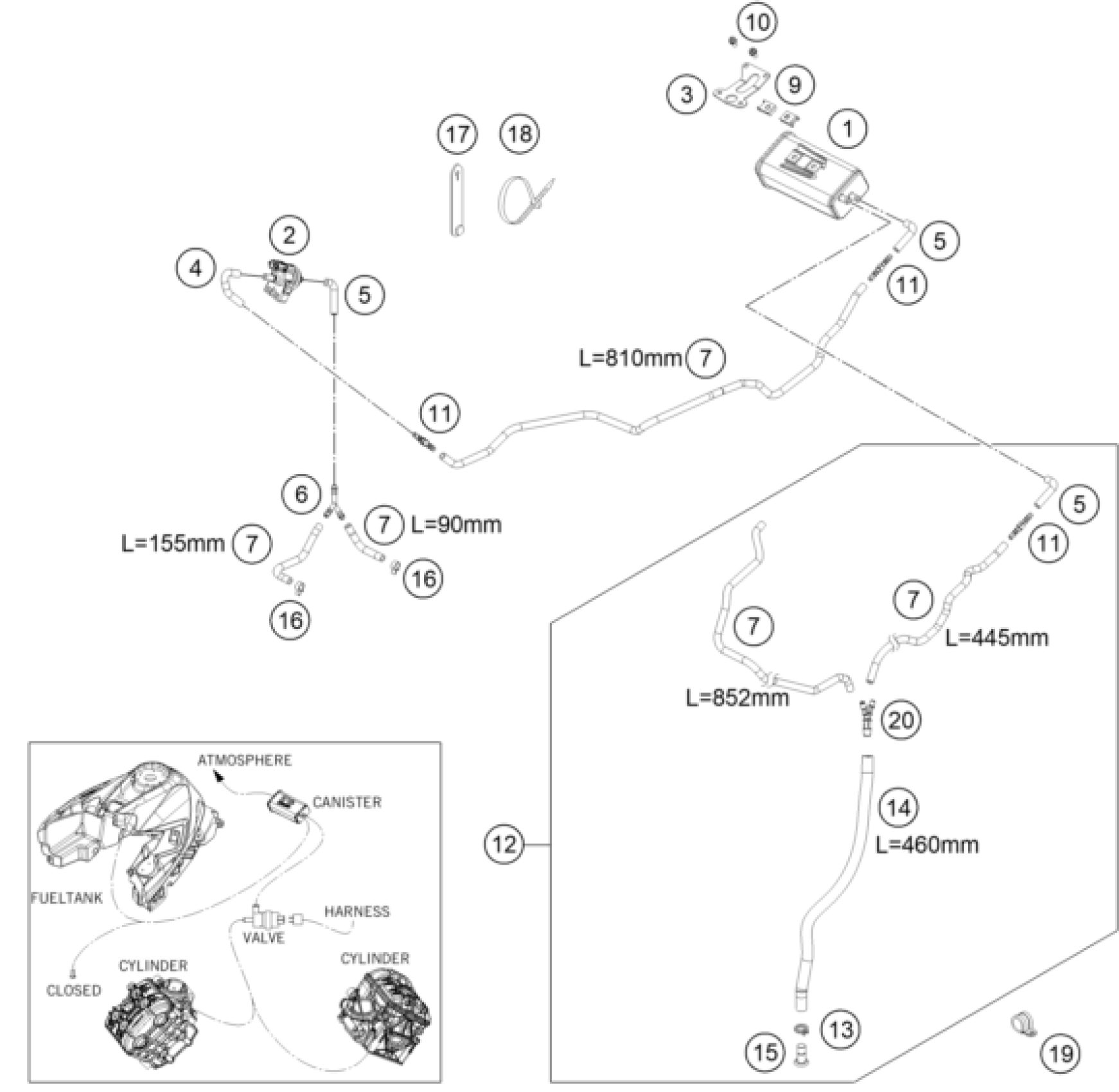

KTM 1290 SUPER DUKE GT GREY ABS 16 <2016> EVAPORATIVE CANISTER Diagram

#

Description
Price

17

RUBBER CABLE TIE 60MM 03

60011093060

Unavailable

1

CARBON CANISTER

75015001200

Unavailable

2

EVAP valve

76015015000

Unavailable

3

BRACKET FOR CARBON CANISTER

61415002000

Unavailable

4

HOSE PURGE VALVE

61415021000

Unavailable

5

PREFORMED HOSE 6X10 FPM

61315022000

Unavailable

6

Y-CONNECTING PIECE YS 6-6-6 06

60015025100

Unavailable

7

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

9

clip nut M6

54603048100

Unavailable

10

HH collar screw M6x12 TX30

0025060126

Unavailable

11

HOSE CONNECTION STRAIGHT

69015019010

Unavailable

12

TANK VENT. TUBE - AKF

61415025033

Unavailable

13

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

14

HOSE EPA D=10/16 L=2000MM

78015119000

Unavailable

16

CLAMP YDNAC 10096F (9,6MM)

59007017000

Unavailable

17

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

19

CABLE CLAMP D=16

61315027000

Unavailable

20

Y-CONNECTOR YS 6-10-6

61315028100

Unavailable

15

PLUG D=10

61315026000

Unavailable
