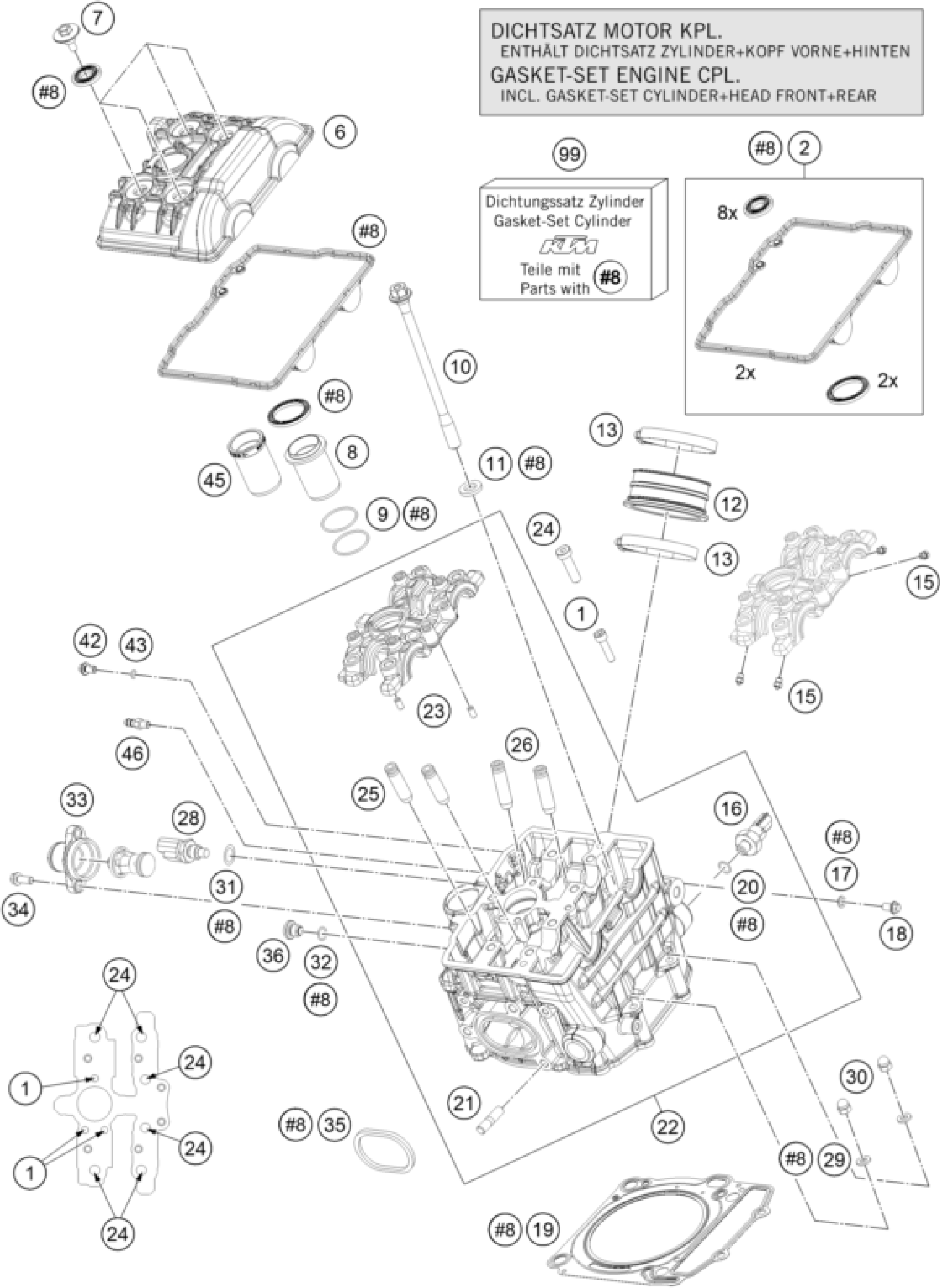

KTM 1290 SUPER DUKE GT GREY ABS 16 <2016 CYLINDER HEAD FRONT Diagram

#

Description
Price

1

AH SCREW DIN0912-M 6X25 10.9

0912060255

$1.49

2

VALVE COVER GASKET SET

61236099100

$55.25

6

VALVE COVER FRONT 09

6123605210033

$45.15

7

collar screw M 6 WS=10 03

60036052020

$3.08

8

SPARK PLUG SHAFT

61336075100

$18.97

9

O-RING 29,87X1,78 VITON

0770298178

$2.05

10

CYLINDER HEAD SCREW 08

61236079000

$15.79

11

WASHER 11,1X20X3 08

61236079050

$5.51

12

INTAKE BOOT

61336044000

$39.64

13

HOSE CLAMP GEMI 75

61336048000

$14.30

15

oil jet 50 M5

60030063050

$9.44

16

oil pressure switch ''BITRON''

61238091000

$33.46

17

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

18

HH collar screw M6x10 TX30

0025060106

$3.08

19

CYLINDER HEAD GASKET 0,85

61330036085

$66.47

20

O-RING 8,00X1,5 NBR 70

0770080015

$1.49

21

STUD M 8X16 10.9

0835080165

$3.08

22

CYLINDER HEAD FRONT CPL.

6043602000024

$841.40

23

needle roller DIN 5402 5x9.8

0402050980

$1.49

24

AH SCREW DIN7984-M 8X30 10.9

0984080305

$1.49

25

VALVE GUIDE EXHAUST 08

61236026001

$25.70

26

VALVE GIUDE INTAKE 6MM

61236025001

$22.43

28

TEMPERAT.-SENSOR WATER LC8 02

60011252000

$36.64

29

WASHER DIN0125-A 6,4

0125060003

$1.49

30

CAP NUT M6 STAINLESS STEEL

61230045000

$2.05

31

o-ring 10.00x2.00 silicone

0770100020

$2.05

32

O-RING 9x1,5 V80 SH

07700900151

$2.05

33

WATER CONNECTION CPL.

61235019100

$22.43

34

HH collar screw M6x20 TX30

0025060206

$3.08

35

EXHAUST PIPE FLANGE GASKET

69005005100

$18.69

36

SCREW PLUG

77336056095

$7.00

42

VENT SCREW M6X10 CPL.

59036006090

$4.11

43

O-RING 5,0X1,2 NBR 70

0770050012

$1.49

45

INSERT SPARK-PLUG SHAFT

61336074100

$22.71

99

GASKET SET CYLINDER+HEAD F+R

61330097000

$329.86

46

VACUUM CONNECTION M6/0.75MM

60036023200

$10.46
