COOLING SYSTEM

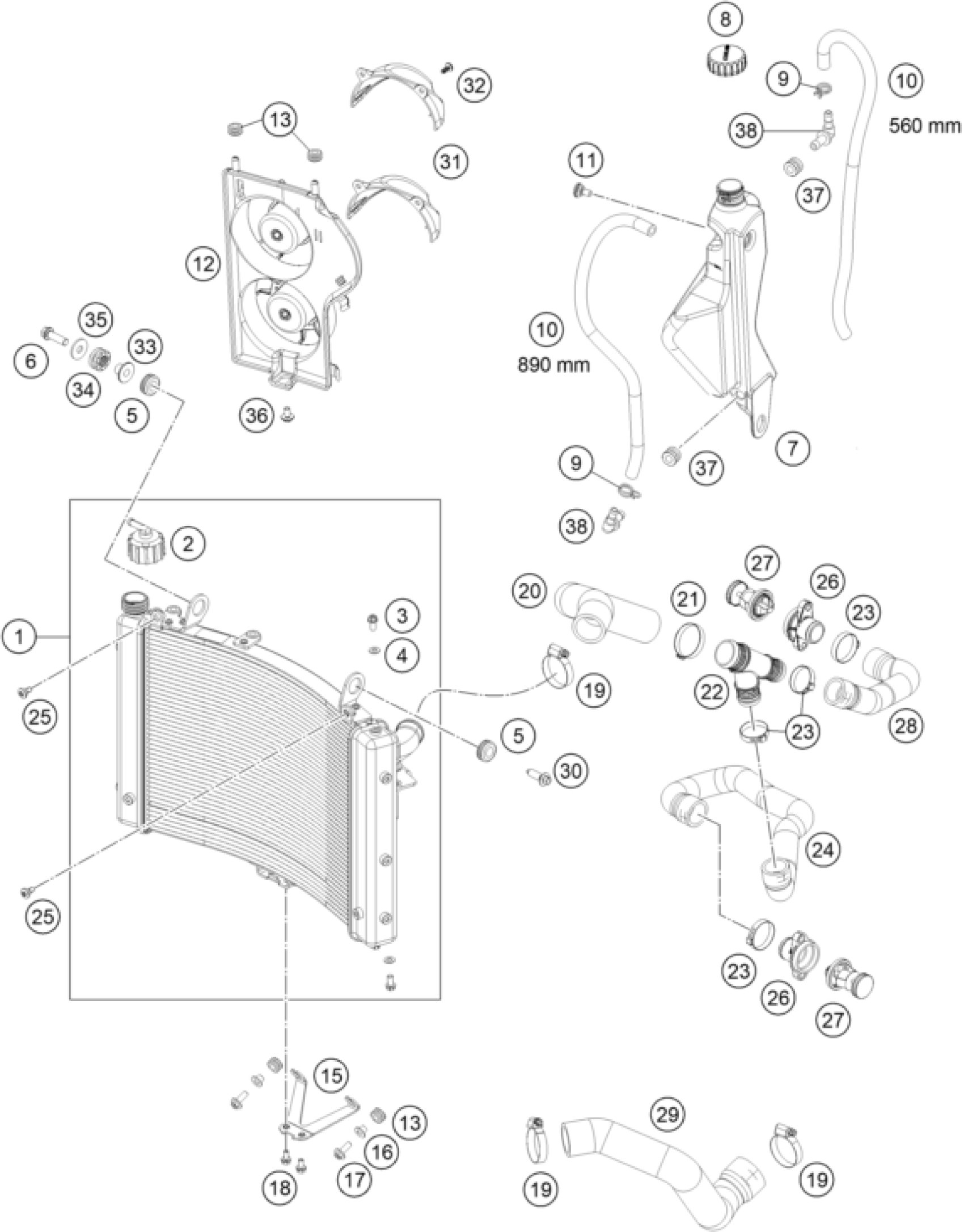

KTM 1290 SUPER DUKE GT GREY ABS 16 <2016 COOLING SYSTEM Diagram
#
Description
Price
1
RADIATOR
61435010000
$657.11
2
RADIATOR CAP 1,4 BAR
62535009000
$25.42
3
HH collar screw M6x12 TX30
0025060126
$3.08
4
ALU-GASKET 6X10X1.5
60035048000
$3.08
5
RUBBER SLEEVE D=12MM
41001052000
$4.11
6
HH collar screw M6x20 TX30
0025060206
$3.08
7
WATER EXPANSION TANK
61435065001
$16.92
8
Latch, compens. tank cpl.
60335066044
$6.72
9
YDNAC-CLAMP 10107 10MM
58007117000
$3.08
10
HOSE 6X10 EPDM 03
60035067001
Unavailable
11
SCREW FOR PLASTIC PT K50X14T25
0081250141
$2.05
12
FAN COVER CPL.
60335044033
$393.63
13
rubber grommet D=8mm open
31008060000
$2.05
15
MOUNTING PLATE COOLER BOTTOM
60335005000
$22.43
16
COLLAR BUSHING 6,1X8,1X14X8 07
75014010050
$4.11
17
HH collar screw M6x20 TX30
0024060206
$3.08
18
HH collar screw M5x10 TX30
0025050106
$1.49
19
HOSE CLAMP 30-45 SGT
54305058000
$5.23
20
PREFORMED HOSE
60335026000
$17.10
21
VARIABLE ONE-EAR CLAMP 39,6MM
00050396706
$7.00
22
Y-JOINT
60335093000
$8.59
23
Stufenlose Einohrklemme 33,1mm
00050331706
$3.08
24
PREFORMED HOSE
60335025000
$19.63
25
special screw M5x12
69008021160
$4.11
26
WATER CONNECTION CPL.
61235019100
$22.43
27
THERMOSTAT 70 DEGREE
61235017000
$33.65
28
PREFORMED HOSE
60335024000
$15.42
29
PREFORMED HOSE
60335027000
$23.55
30
COLLAR SCREW M6X12 TX
0024060123
$1.49
31
AIRDEFLECTOR
61335049000
$4.11
32
EJOT PT screw K50x14
0081050141
$1.49
33
Collar bushing 6.5X9X18X8.5
61342041000
$1.49
34
DAMP. COMPONENT ABS MODUL
62142041000
$4.11
35
Washer DIN9021-A 6.4
0021060003
$2.05
36
special screw M6x12x3
83008000012
$3.08
37
RUBBER GROMMET 6X9X13MM 04
60035069000
$4.11
38
Angle piece, reservoir
60035068000
$3.08
