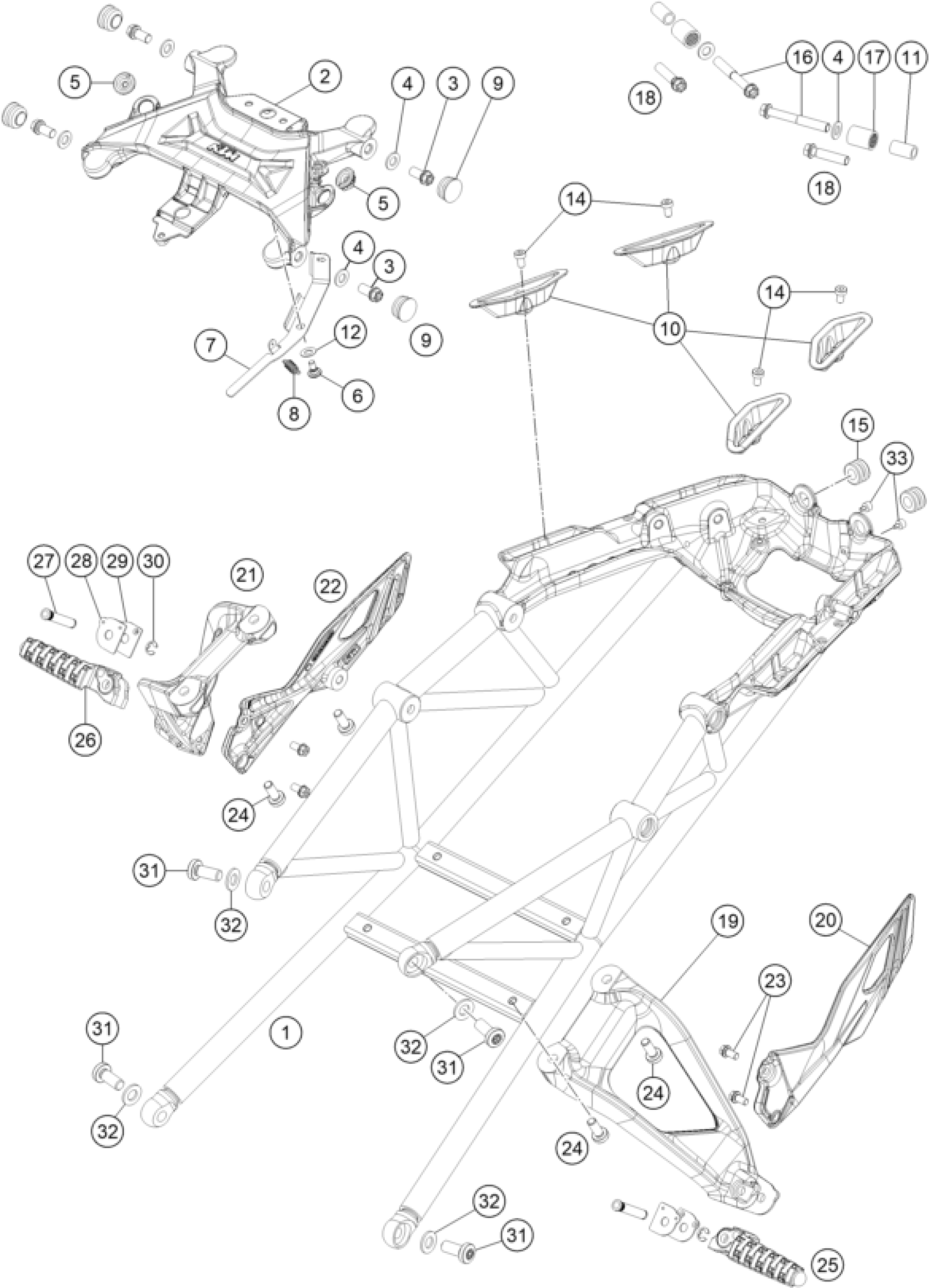

KTM 1290 SUPER DUKE GT GREY 17 <2017> SUBFRAME Diagram

#

Description
Price

1

TAILBOOM BLACK

6140300210033

$1,012.78

2

Cross stiffener back

6140300213091

$166.52

3

HH collar screw M8x18 ISA40 SS

0025080186S

$1.49

4

washer DIN 125 A -8.4

0125080003

$1.49

5

quick release rubber grommet

47106003160

$4.11

6

Screw for expansion tank

69013099050

$4.11

7

SEAT LOCK PLATE

61407050050

$30.38

8

SPRING F. REAR SEAT LOCK

69008025080

$4.11

9

PLUG SFL 22X0,8-3,0

61303088000

$1.49

10

SHELL KIT SIDECASE

61403002055

$109.85

11

BUSHING 8.4X12X21.5

61407049000

$7.47

12

Wave spring

61403002032

$8.13

14

AH SCREW DIN7984-M 6X10

0984060103

$1.49

15

RUBBER BUSH 05

61013013000

$3.08

16

HH COLLAR SCREW M8x60 TX40

0025080606

$3.08

17

RUBBER SEAT-CONTACT SURFACE

60307048000

$5.70

18

HH collar screw M8x35 TX40

0025080356

$4.11

19

LEFT PILLION STEP HOLDER

6140304800033S

$156.70

20

LEFT PILLION HEEL GUARD

6140304805033S

$71.33

21

RIGHT PILLION STEP HOLDER

6140304900033S

$156.70

22

RIGHT PILLION HEEL GUARD

6140304905033S

$81.90

23

HH collar screw M6x12 TX30

0025060126

$3.08

24

SHCS M8x20 TX45

0035080206S

$5.32

25

FOOTREST REAR L/S CPL.

6900305003333S

$46.74

26

FOOTREST REAR R/S CPL.

6900305103333S

$46.74

27

footrest bolt, rear

60003044100

$8.03

28

ENGAGE PANEL FOOTREST R/S 03

60003052000

$5.23

29

ENGAGE PANEL FOOTREST L/S 03

60003152000

$5.23

30

retaining washer DIN 6799 - 6

0799060003

$1.49

31

AH collar screw M10x24 ISA45

0035100249

$3.08

32

washer DIN 125 A 10.5

0125100003

$2.05

33

RUBBER MOUNTING

61414040010

$5.51
